| Country of Origin | Japan |

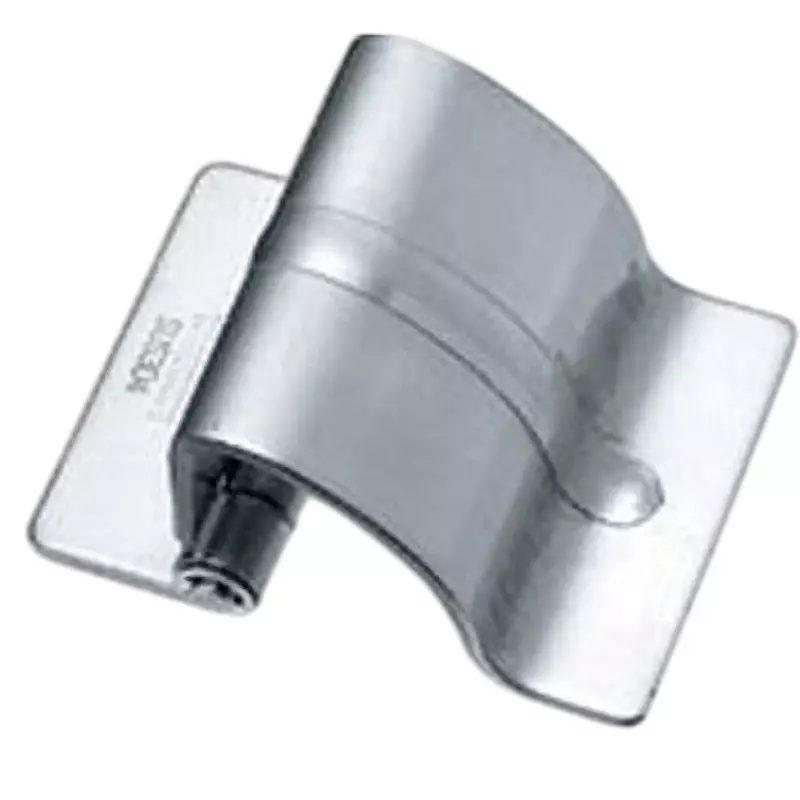

| Type of Product | Concealed Hinge Type 1 (L = 40 Insert / Remove Type) |
| Model No | B-8-3 |
| Name of Manufacturer/Packer/Importer | TAKIGEN MFG. CO., LTD. |
Country of Origin |
Japan |
Type of Product |
Concealed Hinge Type 1 (L = 40 Insert / Remove Type) |
Model No |
B-8-3 |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG. CO., LTD. |
Monotaro ID |
61105257 |

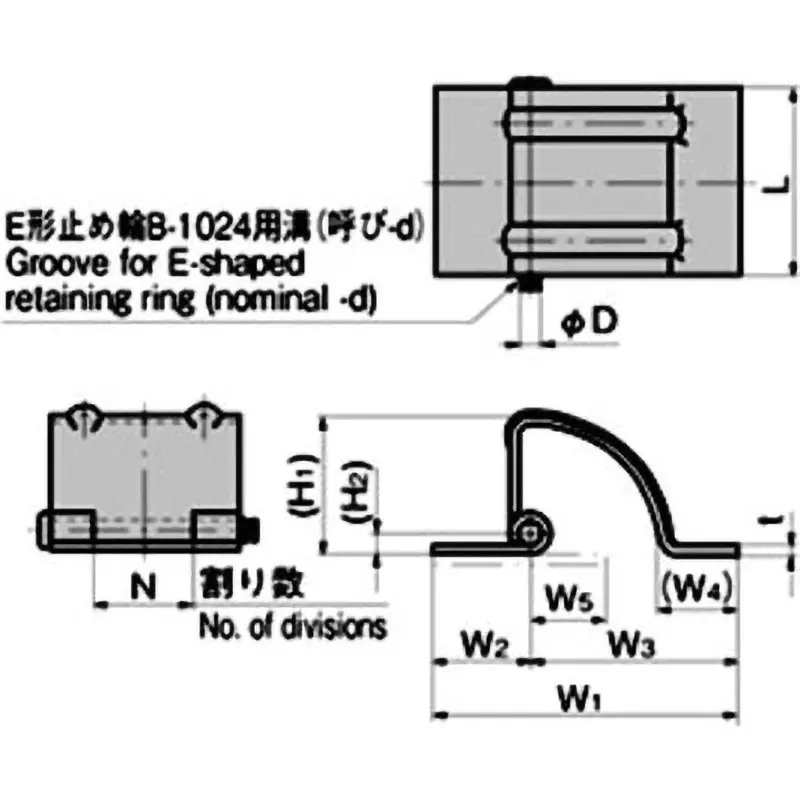

Dimension n (mm) |
3 |
TAKIGEN Code |
10062 |
Dimension L (mm) |
40 |
Surface Finish Type |
Blade: Antirust treatment, Shaft: Zinc plating chromate treatment (MFZn-C) |
Dimension D (Φmm) |
5.5 |
Dimension W3 (mm) |
50 |
Dimension W4 (mm) |
18 |
Dimension W5 (mm) |
23 |
Shaft Material |
Carbon steel wire for cold heading (SWCH) |
Import Country |
Direct Import from Japan |
Mass (Kg) |
9 (Reference door for 2 vertical specifications) |
Mass (g) |
102 |
Dimension W2 (mm) |
22 |
Dimension T |
2.3 mm |
Dimension W1 (mm) |
72 |
Dimension H1 |
35 mm |
Dimension H2 |
5.1 mm |
Material (Fan Blade) |
Steel Plate Cold Commercial (SPCC) |
