| Material | Polyacetal (POM) |
| Country of Origin | Japan |
| Color | White |
| Type of Product | Roller Catch |
Material |
Polyacetal (POM) |
Country of Origin |
Japan |
Color |
White |
Type of Product |
Roller Catch |
Model No |
C-96-1 |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG. CO., LTD. |
Monotaro ID |
61118803 |

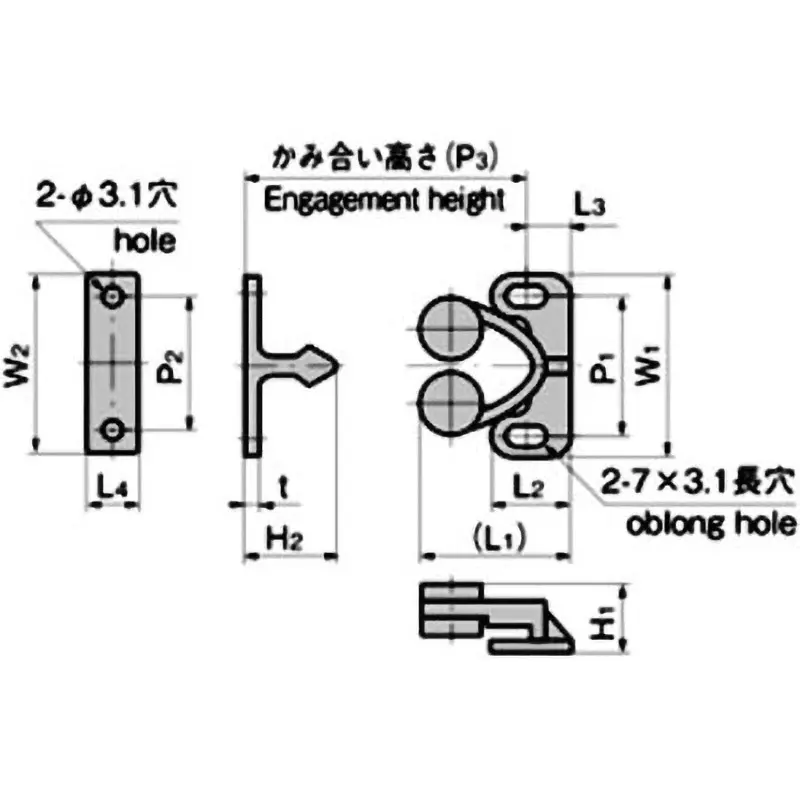

Dimension P3 (mm) |
19.7 |
Dimension P1 (mm) |
24.4 |
TAKIGEN Code |
20367 |
Dimension P2 (mm) |
23.6 |
Dimension L3 (mm) |
7.5 |
Strike Material |
Polyacetal (POM) |
Working Load |
(Reference) Unplug: 31 N, Insert: 21 N |
Import Country |
Direct Import from Japan |
Mass (g) |
4 |
Dimension L2 |
14 mm |
Dimension L1 |
25.2 mm |
Material (Roller Part) |
Polyethylene (PE) |
Dimension W2 (mm) |
32 |
Dimension T |
2 mm |
Dimension W1 (mm) |
31.3 |
Dimension H1 |
12.6 mm |
Dimension H2 |
16.5 mm |
Dimension L4 |
9 mm |
