Ships within 25 days
View
View
View
View
| Material | Hot rolled steel plate (SPHC) |
| Country of Origin | Japan |
| Type of Product | Top and Bottom Hinges |
| Model No | B-303-3-L |
Material |
Hot rolled steel plate (SPHC) |
Country of Origin |
Japan |
Type of Product |
Top and Bottom Hinges |
Model No |
B-303-3-L |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG. CO., LTD. |
Monotaro ID |
54340704 |
TAKIGEN Code |
10436 |
Surface Finish Type |
Zinc plating chromate treatment (MFZn-C) |

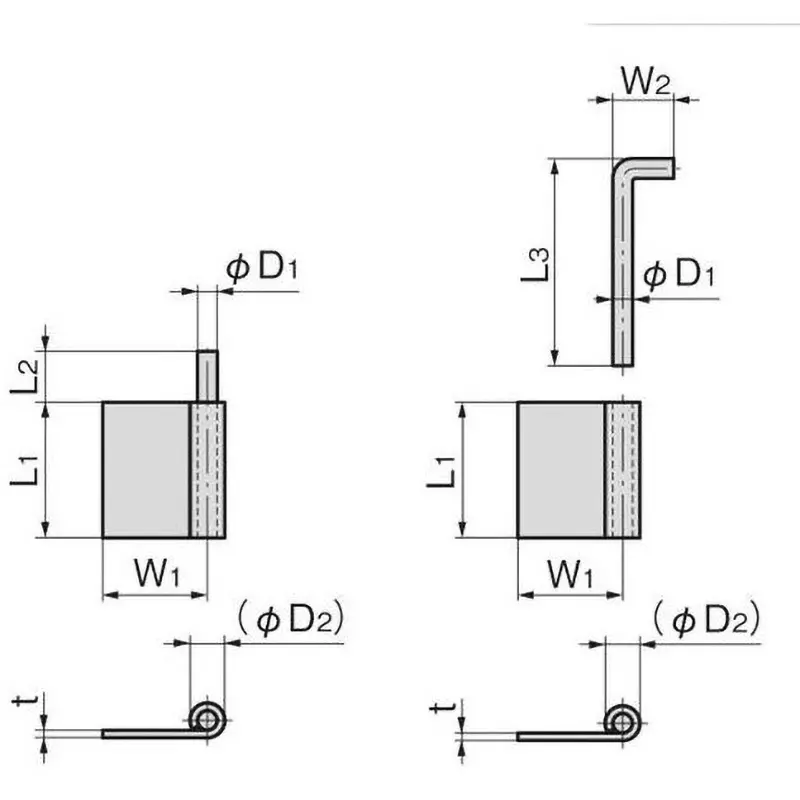

Dimension d2 (Φmm) |
10.5 |
Dimension d1 (Φmm) |
6 |
Dimension L3 (mm) |
51 |
Left or Right |
Left type |
Import Country |
Direct Import from Japan |
Mass (g) |
70 |
Dimension L2 |
15 mm |
Dimension L1 |
30 mm |
Dimension W2 (mm) |
18 |
Dimension T |
2 mm |
Dimension W1 (mm) |
29 |
