| Material | Latch: Polyacetal (POM) |
| Country of Origin | Japan |

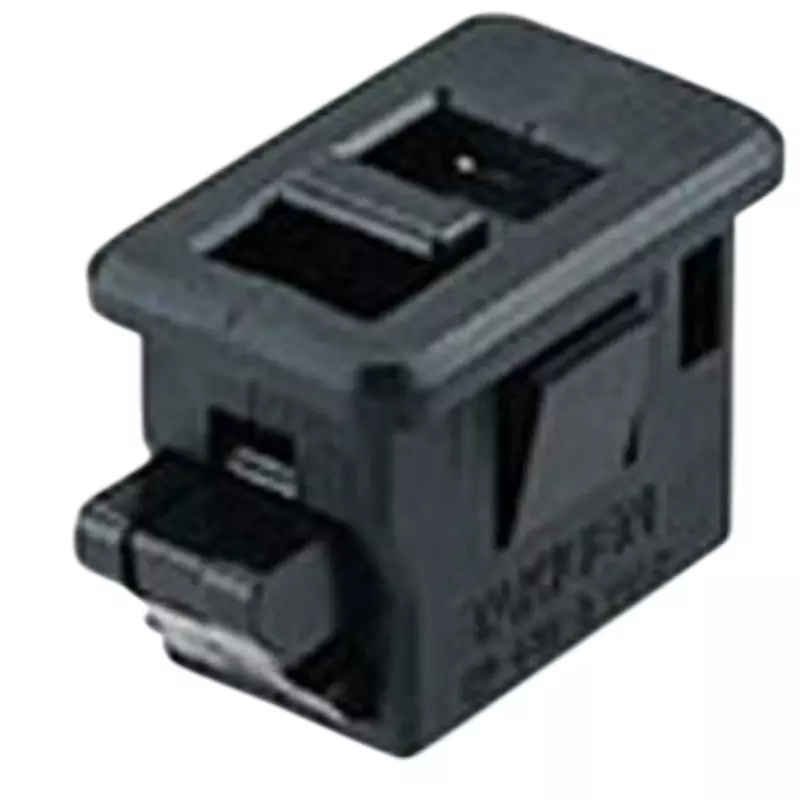

| Type of Product | One Touch Panel Fastener (Flat Pick) |
| Model No | CP-420-B-3-Black |
Material |
Latch: Polyacetal (POM) |
Country of Origin |
Japan |
Type of Product |
One Touch Panel Fastener (Flat Pick) |
Model No |
CP-420-B-3-Black |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG. CO., LTD. |
Monotaro ID |
61122522 |
Standard Color |
Black |

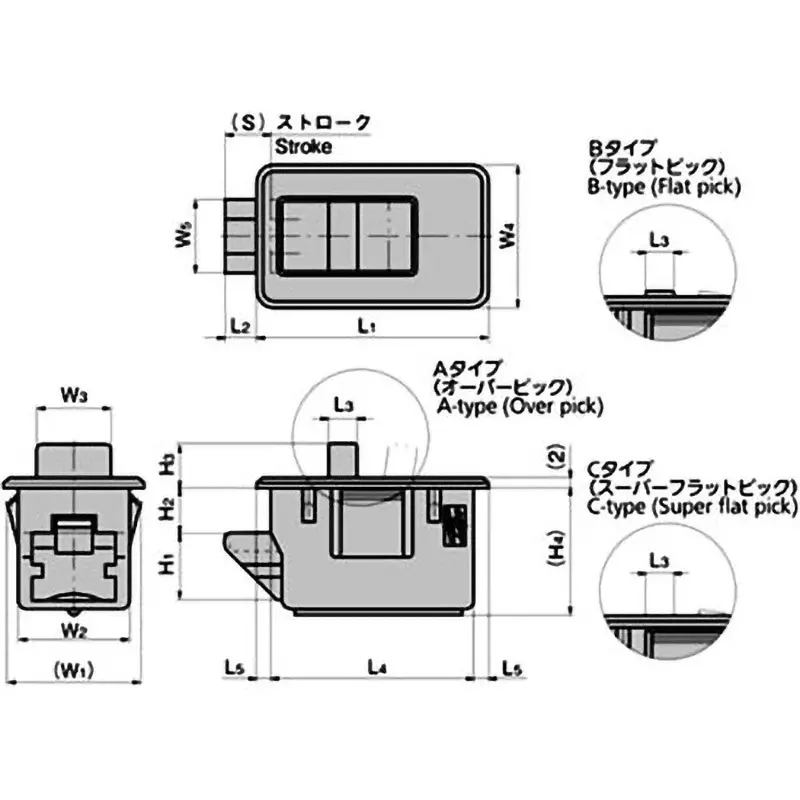

Dimension L3 (mm) |
4 |
Dimension H3 (mm) |
3.5 |
Dimension W3 (mm) |
8.8000000000000007 |
Dimension H5 (mm) |
5.5 |
Dimension H4 (mm) |
18 |
Suitable Thickness of Workpiece (mm) |
1.2・1.6・2.0 |
Import Country |
Direct Import from Japan |
Mass (g) |
8 |
Dimension L2 |
4 mm |
Dimension L1 |
30 mm |
Dimension S |
6 mm |
Dimension W2 (mm) |
13.6 |
Dimension T |
2.5 mm |
Dimension W1 (mm) |
17.2 |
Dimension H1 |
9.5 mm |
Dimension H2 |
6 mm |
Dimension L4 |
25.8 mm |
Lever Material |
Polyacetal (POM) |
Housing Material |
Polypropylene (PP) |
