| Type of Product | Sealing Gasket UPH Type |
| Model No | UPH 30 45 10 |
| Part No | (Packing) CU0368D2 |
| Type | Packing for both piston and rod seal |
Type of Product |
Sealing Gasket UPH Type |
Model No |
UPH 30 45 10 |
Part No |
(Packing) CU0368D2 |
Type |
Packing for both piston and rod seal |
Country of Origin |
JAPAN |
Monotaro ID |
35218461 |
Name of Manufacturer/Packer/Importer |
NOK Corporation |
Operating Temperature Range |
-25 to +100℃ |
Maximum Operating Pressure (MPa) |
14 |
Suitable Fluid |
General petroleum-based hydraulic fluid, water glycol-based hydraulic fluid, water-oil emulsion hydraulic fluid |

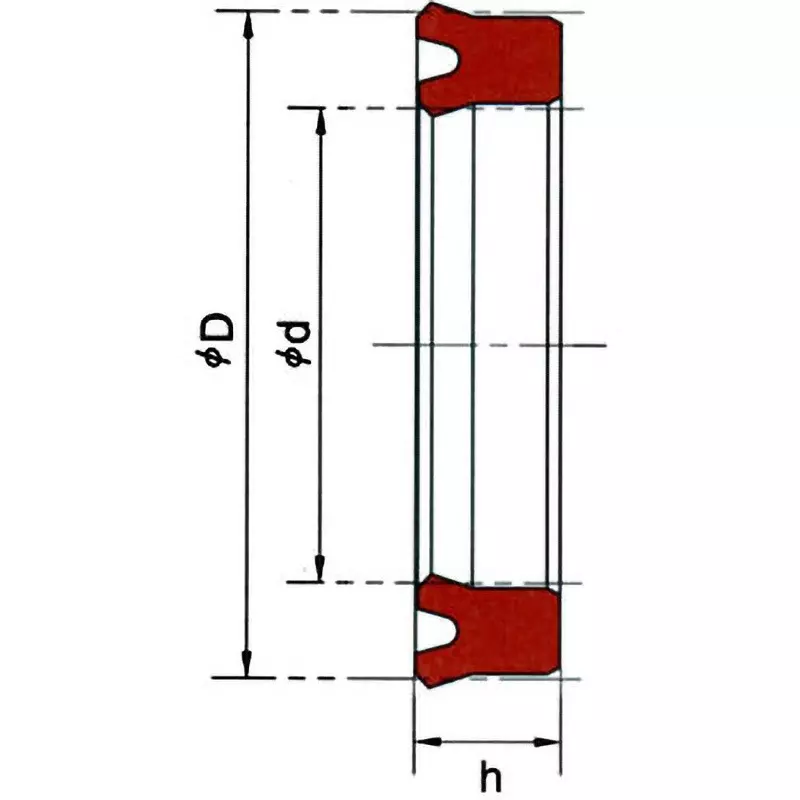

Outer Diameter D (Φmm) |
45 |
Nominal No. |
UPH-30A |
Inner Diameter d (Φmm) |
30 |
Import Country |
Direct Import from Japan |
RoHS Directive |
Correspondence |
Width h (mm) |
10 |
Speed Range (m / s) |
0.008 to 1.0 |
