| Type of Product | Packing USH Type |

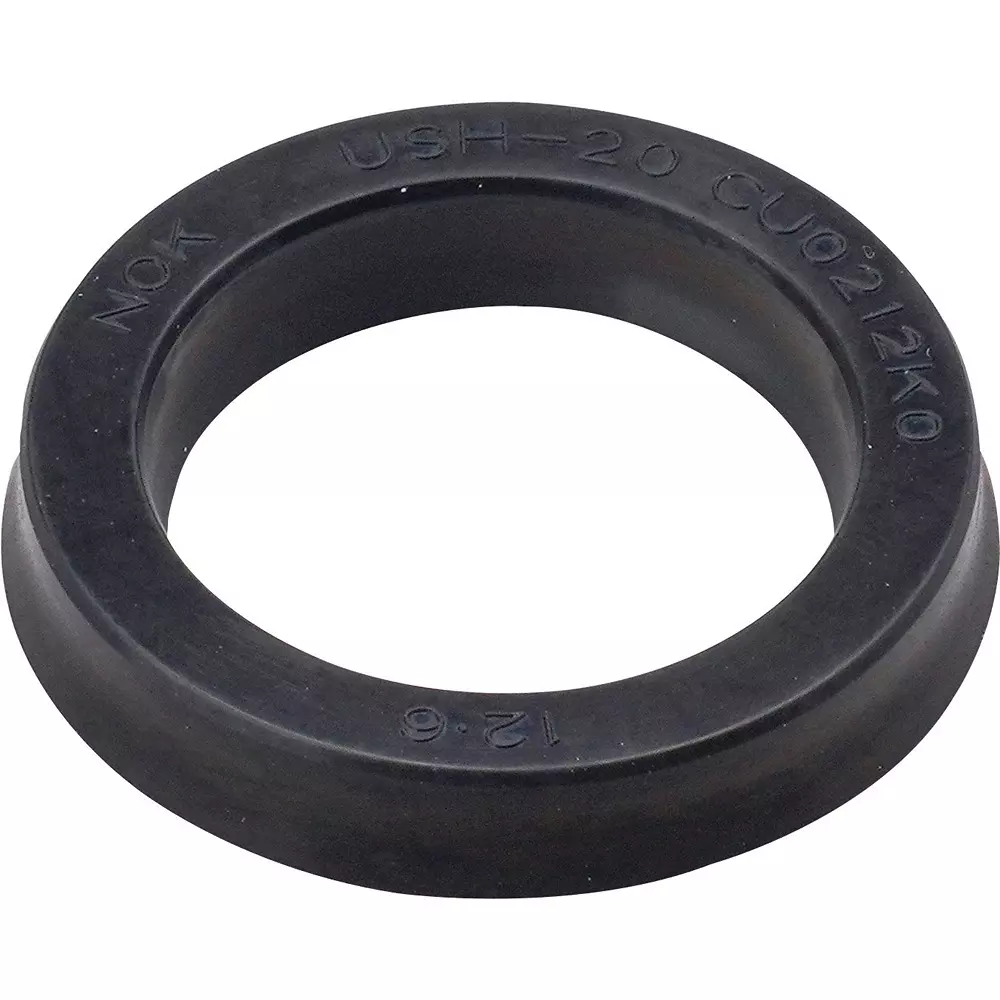

| Model No | USH 20 28 5 |
| Part No | (Packing) CU0212K0 |
| Type | Packing for both piston and rod seal (integrated groove can be installed) |
Type of Product |
Packing USH Type |
Model No |
USH 20 28 5 |
Part No |
(Packing) CU0212K0 |
Type |
Packing for both piston and rod seal (integrated groove can be installed) |
Country of Origin |
JAPAN |
Monotaro ID |
35217402 |
Name of Manufacturer/Packer/Importer |
NOK Corporation |
Operating Temperature Range |
-25 to +100℃ |
Maximum Operating Pressure (MPa) |
14 |
Suitable Fluid |
General petroleum-based hydraulic fluid, water glycol-based hydraulic fluid, water-oil emulsion hydraulic fluid |

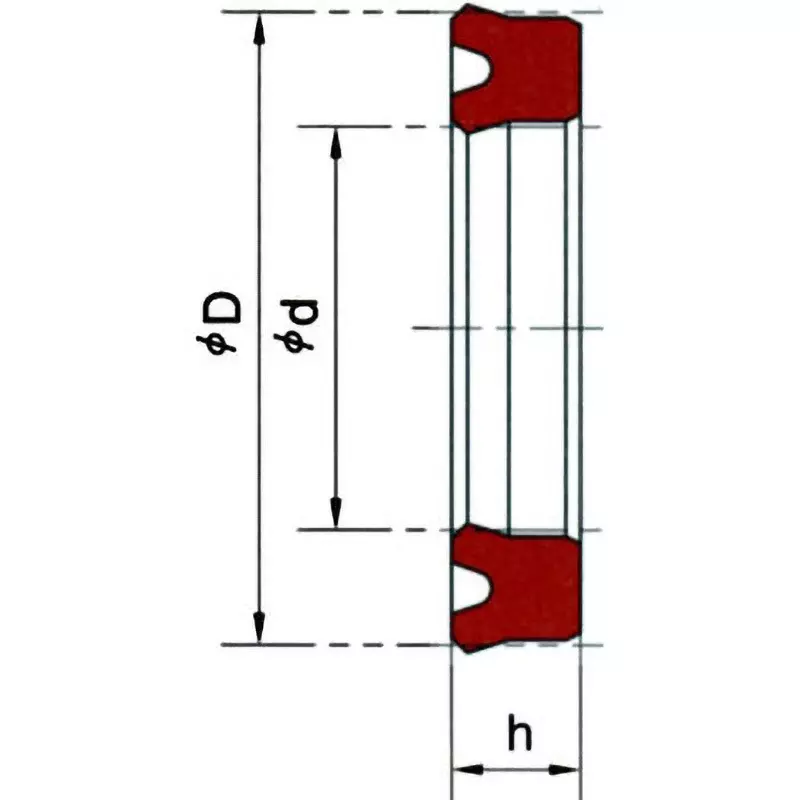

Outer Diameter D (Φmm) |
28 |
Nominal No. |
USH-20 |
Inner Diameter d (Φmm) |
20 |
Import Country |
Direct Import from Japan |
RoHS Directive |
Correspondence |
Width h (mm) |
5 |
Speed Range (m / s) |
0.03 to 1 |
