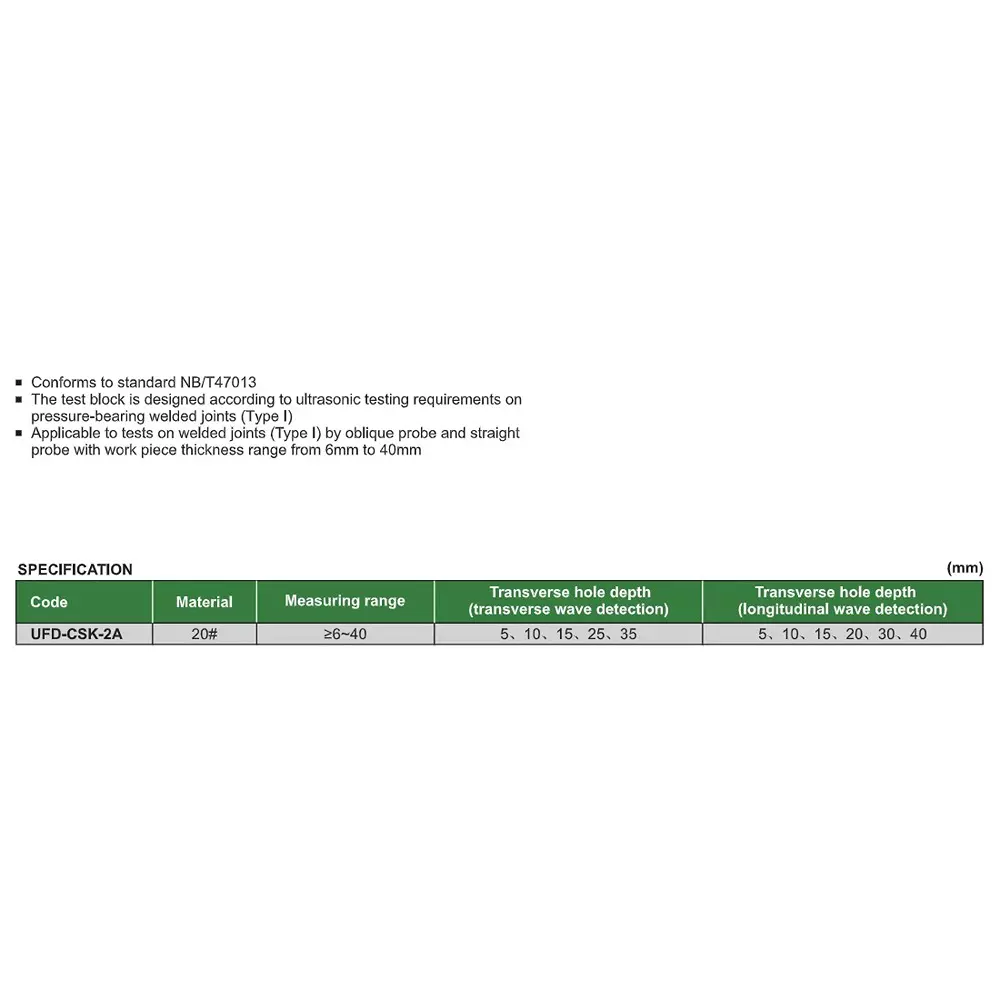

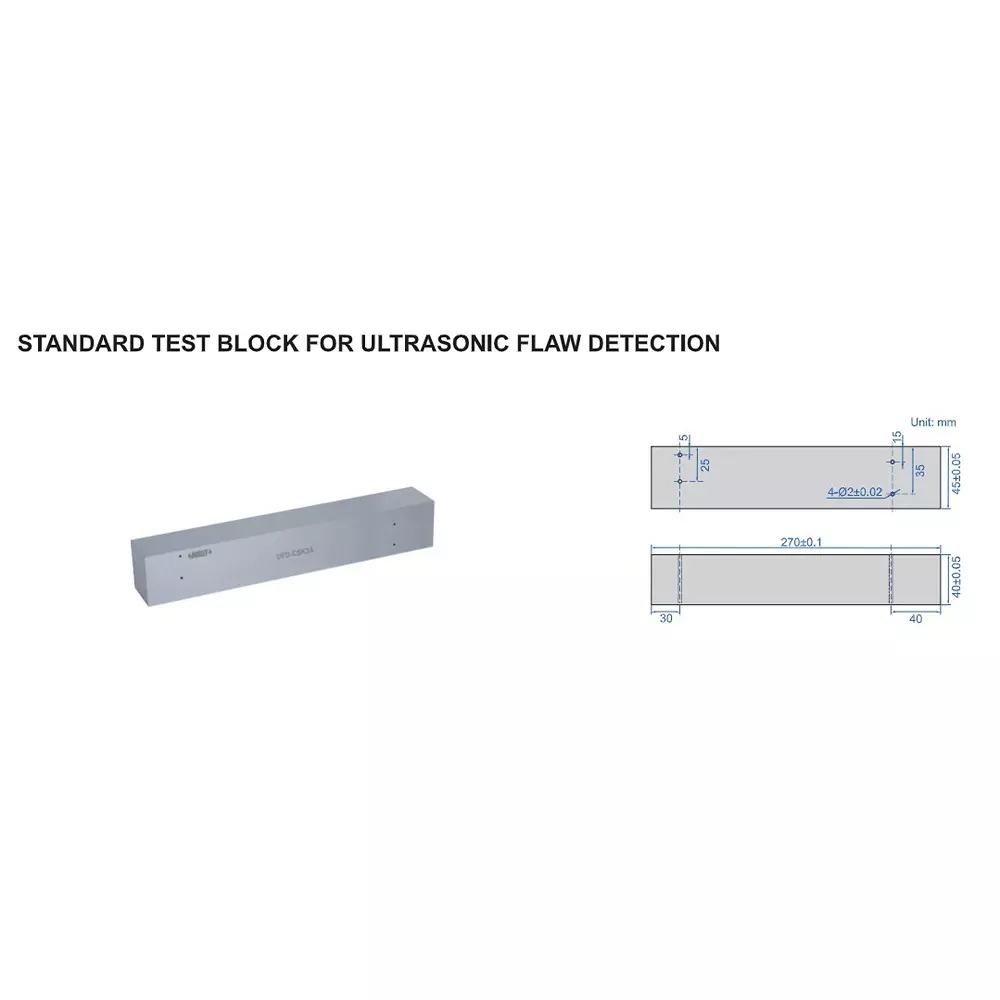

| Type of Product | Standard Test Block |
| Model No | UFD-CSK-2A |
| Material | 20# |
| Features | The test block is designed according to ultrasonic testing requirements on pressure-bearing welded joints (Type I) Applicable to tests on welded joints (Type I) by oblique probe and straight probe with work piece thickness range from 6mm to 40 mm |
Type of Product |
Standard Test Block |
Model No |
UFD-CSK-2A |
Material |
20# |
Features |
The test block is designed according to ultrasonic testing requirements on pressure-bearing welded joints (Type I) Applicable to tests on welded joints (Type I) by oblique probe and straight probe with work piece thickness range from 6mm to 40 mm |
Standard |
NB/T47013 |
Color |
Silver |
Country of Origin |
China |
Range |
≥ 6 mm - 40 mm |
Name of Manufacturer/Packer/Importer |
INSIZE |
Suitable For |
Ultrasonic Flaw Detection |
Hole Depth |
Transverse Wave Detection: 5, 10, 15, 25, 35, Longitudnal Wave Detection: 5, 10, 15, 25, 35 |
