| Applicable motor capacity (W) | 40 or less |
| Allowable thrust load (N (kgf)) | 29[3] |
| Allowable overhang load (N (kgf)) | 98[10] |
| Structure (Bearing) | ball bearing |
Applicable motor capacity (W) |
40 or less |
Allowable thrust load (N (kgf)) |
29[3] |
Allowable overhang load (N (kgf)) |
98[10] |
Structure (Bearing) |
ball bearing |
Recommended Screw Tightening Torque (Nm (kgfcm)) |
1.96[20] |
Suitable For |
Induction motor 60mm: M61X3G4L / M61X3GU / M61X6G4L / M61X6G4Y / M61X6G4Y / M61X6G4GE Reversible motor 60mm: M6RX4G4L / M6RX4GU / M6RX6G4L / M6RX6G4L / M6RX6G4Y / M6RX6G4Y / M6RX6G4Y Induction motor 60mm: M61X3GV4L / M61X6GV4L / M61X6GV4Y / M61X6GV4GE variable speed type reversible motor 60mm: M6RX4GV4L / M6RX6GV4L / M6RX6GV4Y / M6RX6GV4GE variable speed 6GB 60mm: MUSN606GL / MUSN606GY / MUXN606GL / MUXN606GY |
Transmission efficiency (%) |
81 |
Mounting Screw |
M4 |
Bearing Life |
Standard: 10000 hours |
Motor Type |
Gear head |
Mass (Kg) |
0.24 |
Type |
X |

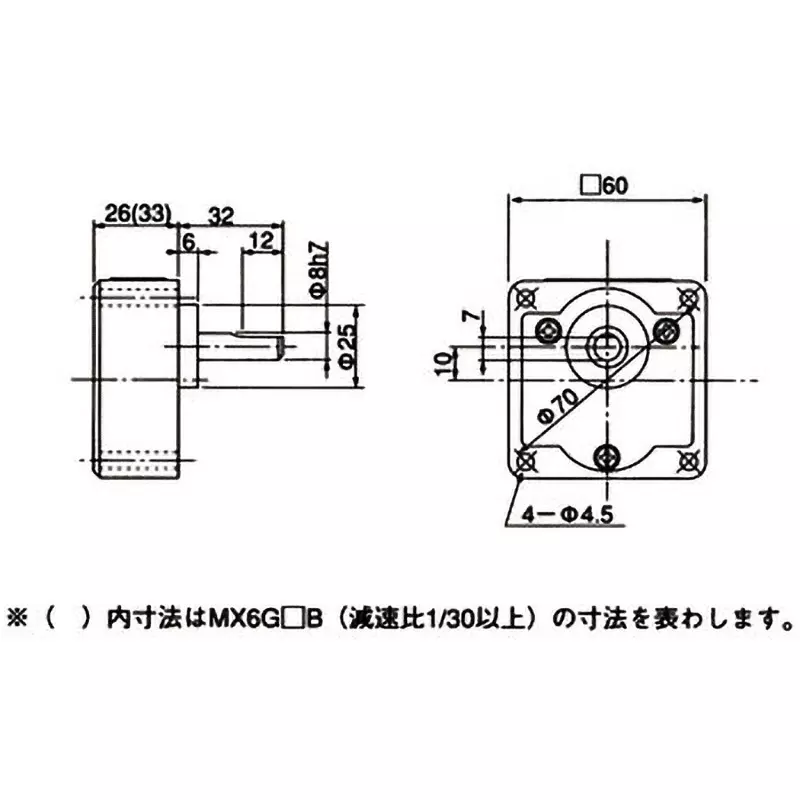

Size (mm) |
60 |
Monotaro ID |
8631874 |
Type of Product |
Gear Head |
Reduction Ratio |
15 |
Model No |
MX6G15BA |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |

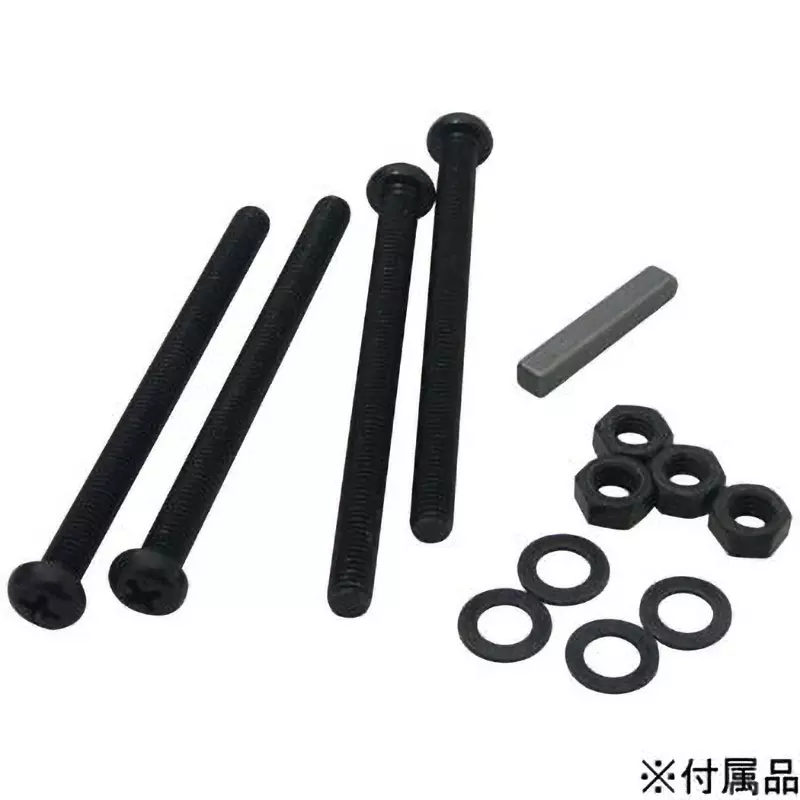

Included Components |
M4 x 40 pan head machine screw |
Specifications |
Thin output shaft D-cut without hinge |
