| Applicable motor capacity (W) | 40 or less |
| Allowable thrust load (N (kgf)) | 98[10] |
| Allowable overhang load (N (kgf)) | 392[40] |
| Structure (Bearing) | ball bearing |
Applicable motor capacity (W) |
40 or less |
Allowable thrust load (N (kgf)) |
98[10] |
Allowable overhang load (N (kgf)) |
392[40] |
Structure (Bearing) |
ball bearing |
Recommended Screw Tightening Torque (Nm (kgfcm)) |
2.94[30] |
Suitable For |
Induction motor 90mm: M91X40G4L / M91X40G4Y / M91X40GU / M91X40G4GE / M91X40GK4L / M91X40GK4L / M91X40GK4Y / M91X40GKU / M91X40GK4GE reversible motor 90mm: M9RX40G4L / M9RX40G4Y / M9RX40GU / M9RX40G4GE / M9RX40GK4L / M9RX40GK4Y / M9RX40GKU / M9RX40GK4GE three-phase motor 90mm: M9MX40G4Y / M9MX40GU / M9MX40G4CE / M9MX40GK4Y / M9MX40GKU / M9MX40GK4CE variable brake motor 90mm: M9RX40GB4L / M9RX40GB4Y / M9RX40GBU / M9RX40GB4GE / M9MX40GB4Y / M9MX40GB 90mm: M9RX40GV4L / M9RX40GV4Y / M9RX40GV4GE Variable speed type single phase motor with electromagnetic brake 90mm: M9RX40GBV4L / M9RX40GBV4Y / M9RX40GBV4GE variable speed type unit motor 90mm: MUSN940GL / MUSN940GY / MUXN940GL / MUXN940GL / |
Transmission efficiency (%) |
81 |
Mounting Screw |
M6 |
Bearing Life |
Standard: 10000 hours |
Motor Type |
Gear head |
Mass (Kg) |
0.8 |
Type |
X |
Size (mm) |
90 |
Monotaro ID |
8632477 |
Type of Product |
Gear Head |
Reduction Ratio |
5 |
Model No |
MX9G5B |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |

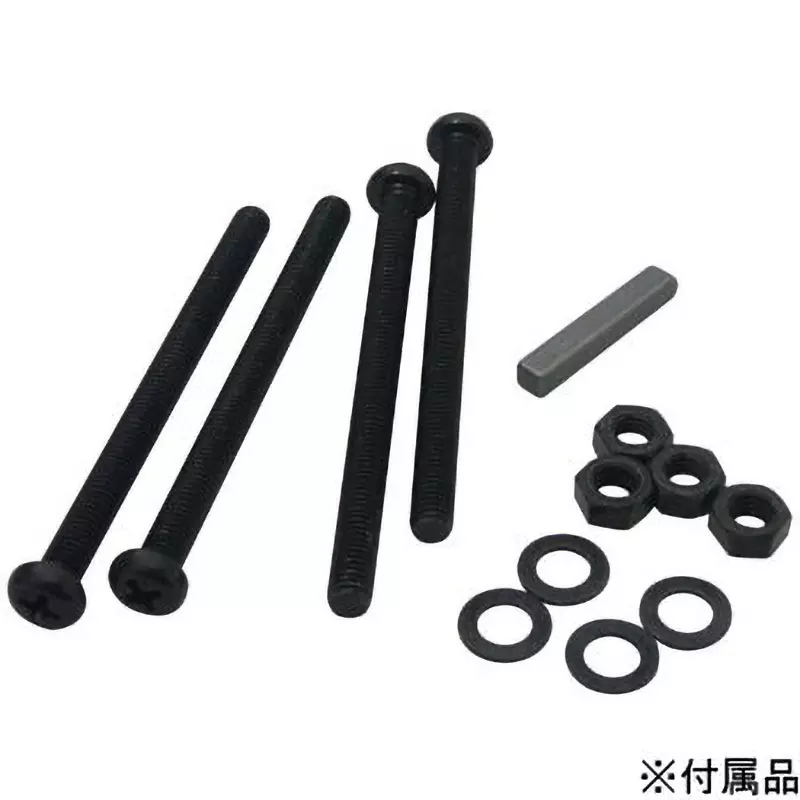

Included Components |
M6 x 65 pan head machine screw |
Specifications |
Without hinge |
