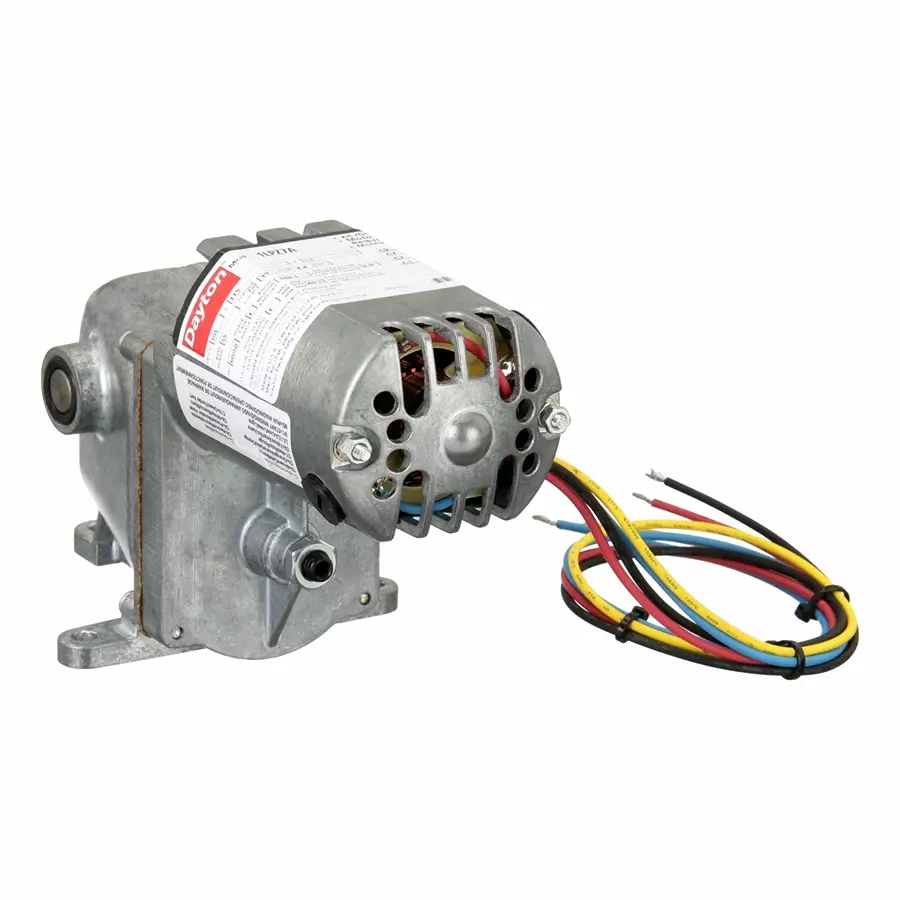

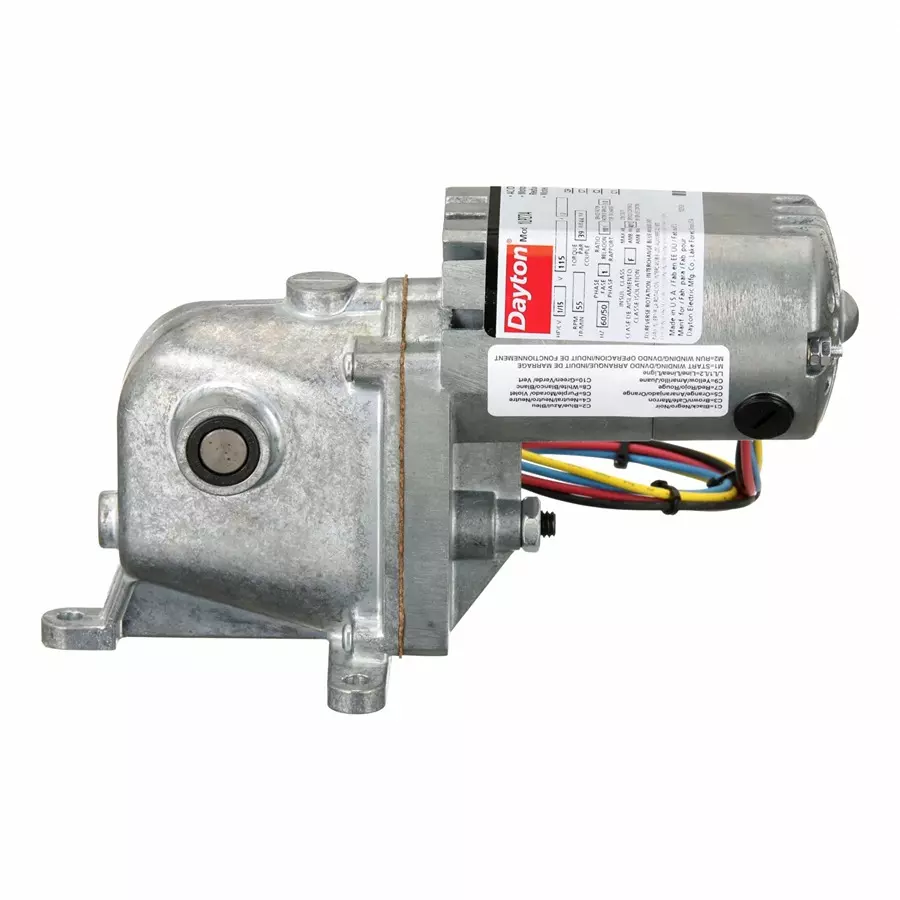

| Type of Product | AC/DC Gearmotor |
| Maximum Torque | 39 inch-lb |
| Part No | 1LPZ7 |
| Frequency | 50/60 Hz |
Type of Product |
AC/DC Gearmotor |
Maximum Torque |
39 inch-lb |
Part No |
1LPZ7 |
Frequency |
50/60 Hz |
Item Code |
1LPZ7 |
Housing Material |
Die Cast Zinc |
Standard |
UL Recognized |
Output Shaft Diameter |
1/2 inch |
Motor Type |
Universal AC/DC |
Thermal Protection |
None |
Maximum Ambient Temperature |
40 °C |
Lubrication |
Grease Filled |
Gear Ratio |
100:1 |
Operating Voltage |
115 V AC |
Gear Material |
Input Gear Steel Output Gear Cast Iron Worm Hardened Steel |
Country of Origin |
USA |
Output Shaft Length |
1-5/8 inch |
Bearing Type |
Ball on Motor Porous Bronze Sleeve on Case |
UNSPSC Code |
20101617 |
Length Less Shaft |
8.75 inch |
Rotation |
CW/CCW |
Seal Type |
Lip Type on Output Shaft |
Mounting Orientation |
Any Angle |
Motor Enclosure |
Open Air-Over |
Shaft Orientation |
Right Angle |
Keyway Type |
Woodruff #404 |
Overall Length |
8.56 inch |
Material Finish |
Unpainted |
Motor Insulation Class |
B |
Replaceable Brushes |
Yes |
Output Location |
Right Hand |
Nameplate Speed |
55 RPM |
Input Horsepower |
1/6 HP |
Overhung Load Capacity |
100 ft-lb |
Full Load |
1.3 A |
Length (mm) |
222.3 mm |
Overall Length (cm) |
21.74 cm |
Maximum Torque (Nm) |
4.41 Nm |
