Ships within 90 days
Maximum Torque
Nameplate Speed
View
View
View
View
| Type of Product | AC Gear Motor |
| Maximum Torque | 275 in-lb |
| Phase | Single Phase |
| Part No | 6K328 |
Type of Product |
AC Gear Motor |
Maximum Torque |
275 in-lb |
Phase |
Single Phase |
Part No |
6K328 |
Frequency |
60 Hz |
Power |
0.167 HP |
Housing Material |
Die Cast Aluminum |
Standard |
C-UL Recognized UL Recognized |
Output Shaft Diameter |
5/8 inch |
Motor Type |
Split-Phase |
Thermal Protection |
None |
Maximum Ambient Temperature |
104 °F |
Lubrication |
Permanent Heavy Duty Gear Oil |
Gear Ratio |
65:1 |
Mount Type |
Any Position |
Gear Material |
Hardened Steel |
Full Load Current (Amps) |
3.8 A |
Country of Origin |
United States |
Output Shaft Length |
1-1/2 inch |
Bearing Type |
Ball on Motor Heavy Duty Needle Roller and Thrust Balls on Case |
Inverter Rated Watts |
Yes |
UNSPSC Code |
26101602 |
Length Less Shaft |
9.88 inch |
Rotation |
CW/CCW |
Seal Type |
Lip Type on Input and Output Shaft |
Mounting Orientation |
Any Angle |
Motor Enclosure |
Totally Enclosed Fan-Cooled |
Shaft Orientation |
Parallel |
Gear Type |
Helical (1st Stage) Spur (Subsequent Stages) |
Brake Type |
None |

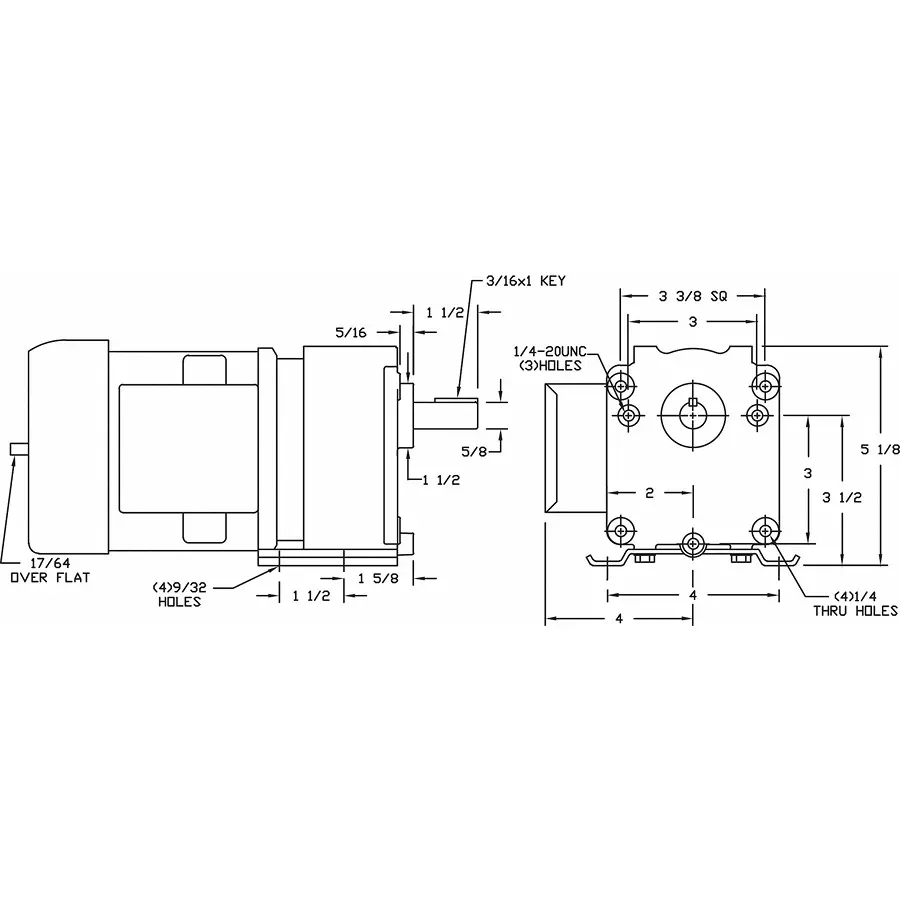

Mount Hole Center-to-Center Width |
4 inch |
Overall Width |
6 inch |
Base to Center of Shaft |
3.5 inch |
Overall Height |
5.13 Inch |
Mount Hole Center-to-Center Length |
1.5 inch |
Keyway Type |
Rounded |
Keyway Width |
3/16 mm |
Nameplate Speed |
27 RPM |
Gear Class |
Class 9 |
Overhung Load Capacity |
175 ft-lb |
Rated Voltage |
115 V AC |
Item No |
6K328 |
Keyway Depth |
1/16 inch |
Length (mm) |
251 mm |
Overall Height (mm) |
130.3 mm |
Overall Width (mm) |
152.4 mm |
Maximum Torque (Nm) |
31.12 Nm |
