| Type | Geared motor |
| Model No | M9MX40GB4Y |
| Type of Product | New G Series Small Geared Motor (With Three-Phase Motor And Brake) |
| Voltage | 200/200/220/220 V |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type |
Geared motor |
Model No |
M9MX40GB4Y |
Type of Product |
New G Series Small Geared Motor (With Three-Phase Motor And Brake) |
Voltage |
200/200/220/220 V |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Size (mm) |
90 |
Import Country |
Direct Import from Japan |
Output (kW) |
0.04 |
Rated Time (minutes) |
Continuous |
Options |
Lead |
Monotaro ID |
37919847 |
Frequency (Hz) |
50/60/50/60 |
Power Supply |
Three-phase / AC |
Mass (Kg) |
3.2 |
Module |
0.55000000000000004 |
No. of Pole |
4 |
Starting Current (A) |
0.90/0.82/1.00/0.91 |
Starting Torque (Nm (kgfcm)) (50/60Hz) |
0.72/0.51(200V), 0.88/0.63(220V) |
Brake |
With electromagnetic brake |
Shank Shape |
Gear cutting axis |
No. of Teeth |
9 |
Type of Sign |
Flange mounting |
Rated Current (A) |
0.31/0.29/0.32/0.28 |

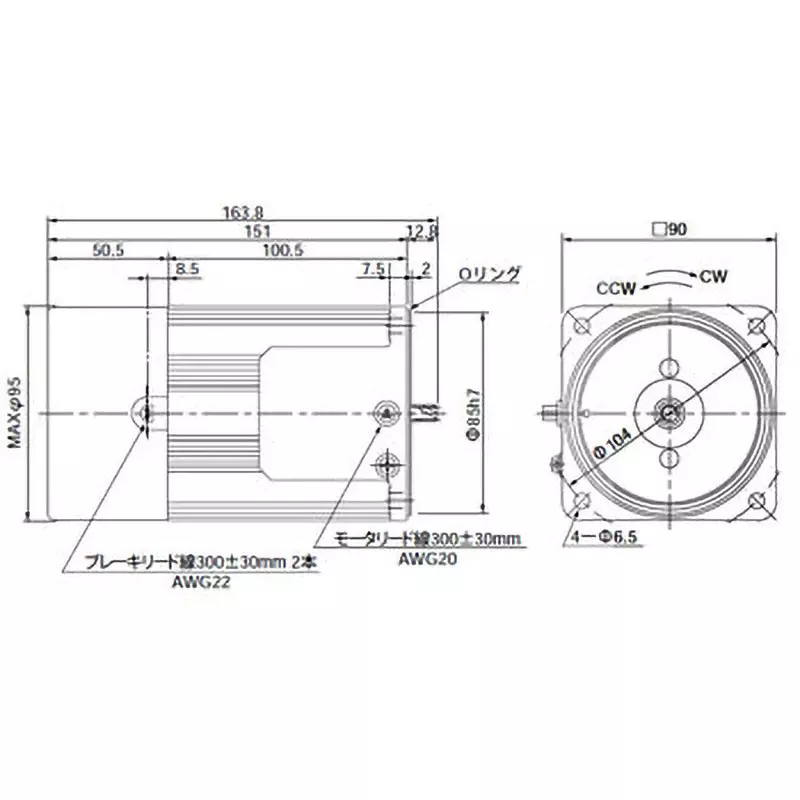

Outer Dimensions, Width W x Height H x Depth D (mm) |
90x163.8x95 |
Rated input (W) |
69/68/70/66 |
