| Storage Temperature | -25 To 85°C (But No Freezing) |

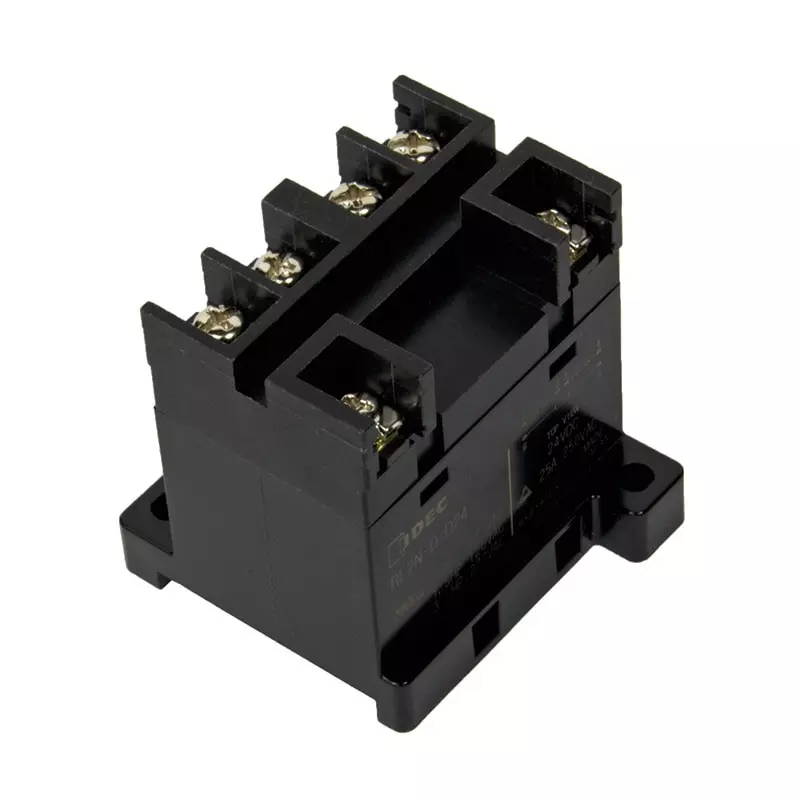

| Type of Product | RL Power Relay RL2N |
| Model No | RL2N-D-D12 |
| Mass (g) | (Approx.) 135 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Storage Temperature |
-25 To 85°C (But No Freezing) |
Type of Product |
RL Power Relay RL2N |
Model No |
RL2N-D-D12 |
Mass (g) |
(Approx.) 135 |
Terminal Shape |
Screw Terminal |
Contact Configuration |
2A |
Mechanical Durability |
(No load) 1 million times or more (opening/closing frequency 10,800 times/hour) |
Rated Voltage (V) |
DC12 |
Return Time (ms) |
30 or less |
Contact Resistance |
50 mΩ or Less (Initial Value) |
Operating Time (ms) |
30 or less |
Monotaro ID |
63145329 |
Vibration Resistance |
Durability: Frequency 10 to 55Hz, half amplitude 0.75mm/Malfunction: Frequency 10 to 55Hz, half amplitude 0.75mm |
Contact |
2-pole |
Rated Current (mA) |
160 |
Electrical Durability |
(Rated load) 100,000 times or more (opening/closing frequency 1200 times/hour) |
Type of Sign |
DIN Rail |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
IDEC Corporation |
Operation Ambient Temperature (°C) |
-25 To 55°C (No Icing) |
Shock Resistance (m/s²) |
Durability: 1000, Malfunction: 100 |
Insulation_Resistance (MΩ) |
over 100 MΩ |
Maximum Allowable Contact Current (A) |
25 |
Maximum Allowable Contact Voltage (V) |
AC277 |
Allowable Current (A) |
25 (contact) |
