| Storage Temperature | -40 To 85°C (No Freezing) |

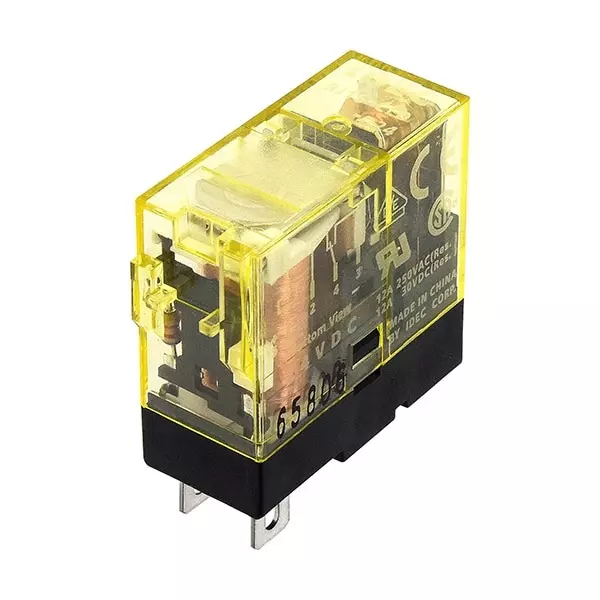

| Type of Product | RJ Series slim power relay |
| Model No | RJ2S-CLD-D100 |
| Mass (g) | About 19 |
Storage Temperature |
-40 To 85°C (No Freezing) |
Type of Product |
RJ Series slim power relay |
Model No |
RJ2S-CLD-D100 |
Mass (g) |
About 19 |
Return Voltage |
10% or more (initial value) [operating characteristics (at 20℃ for rated value)] |
Contact Configuration |
2C |
Mechanical Durability |
Over 50 million times (opening and closing frequency 18,000 times/hour) [no load] |
Type |
Single Contact Type |
Minimum Applicable Load |
DC5V・10mA (reference value) |
Rated Voltage (V) |
DC100-(110) |
Contact Resistance |
50 mΩ or Less (Initial Value) |
No. of Pole |
2 |
Power Consumption (W) |
Approximately 0.53 to 0.64 |
Monotaro ID |
48018820 |
Electrical Durability |
Over 100,000 times (switching frequency 1,800 times/hour) [rated load] |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Protection Class |
IP40 (closed type) |
Name of Manufacturer/Packer/Importer |
IDEC Corporation |
Operation Indicator |
Included |
Operation Ambient Temperature (°C) |
-40 To 70°C (No Freezing) |
Insulation_Resistance (MΩ) |
100 MΩ or more (DC500V mega) |
Return Time |
10 ms or less |
Specifications |
Designation Code: D100 |
