| Storage Temperature | -55 to 70 (no freezing) |

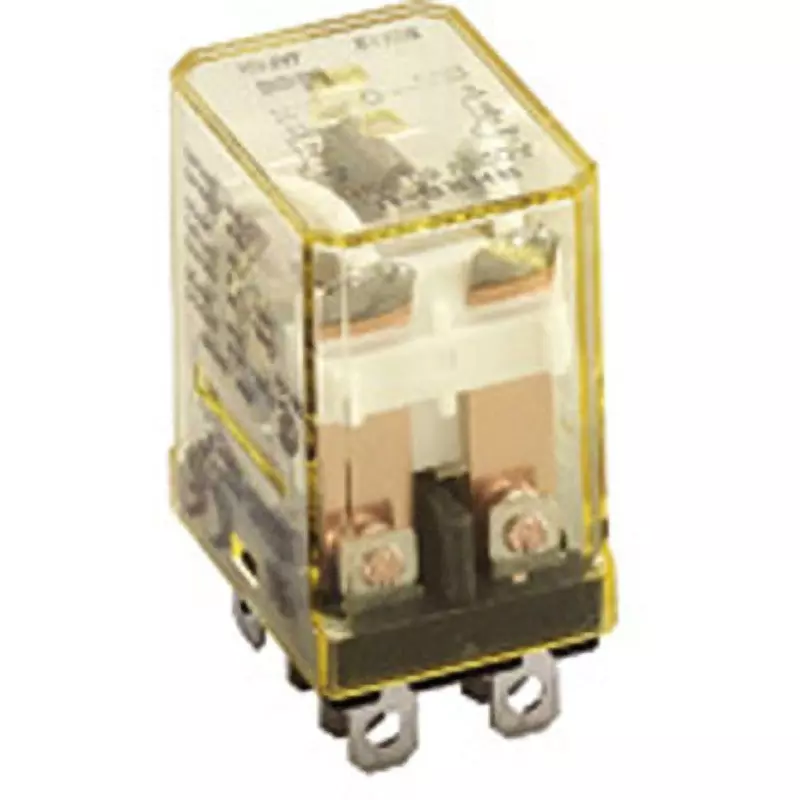

| Type of Product | Rh Type Power Relay Blade Terminal Type |
| Model No | RH2B-UDDC24 |
| Mass (g) | About 37 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Storage Temperature |
-55 to 70 (no freezing) |
Type of Product |
Rh Type Power Relay Blade Terminal Type |
Model No |
RH2B-UDDC24 |
Mass (g) |
About 37 |
Terminal Shape |
Blade terminal |
Return Voltage |
10% or more (initial value) [operating characteristics (at 20℃ for rated value)] |
Contact Configuration |
2c |
Mechanical Durability |
50 million times or more |
Type |
Power relay |
Minimum Applicable Load |
DC24V・30mA, DC5V・100mA (reference value) |
Rated Voltage (V) |
DC24 |
Maximum Continuous Applied Voltage |
110% (at 20 ℃ relative to the rated value) |
Contact Resistance |
less than 50 mΩ |
No. of Pole |
2 |
Power Consumption (W) |
About 0.9 |
Monotaro ID |
60403716 |
Ambient Humidity to Use |
45 to 85 (no condensation) |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Protection Class |
In a case |
Name of Manufacturer/Packer/Importer |
IDEC Corporation |
Operation Ambient Temperature (°C) |
-25 to 40 (no freezing) |
Insulation_Resistance (MΩ) |
100 or more (DC500V mega) |
Return Time |
20 ms or less |
