| Storage Temperature | -25 To 85°C (But No Freezing) |

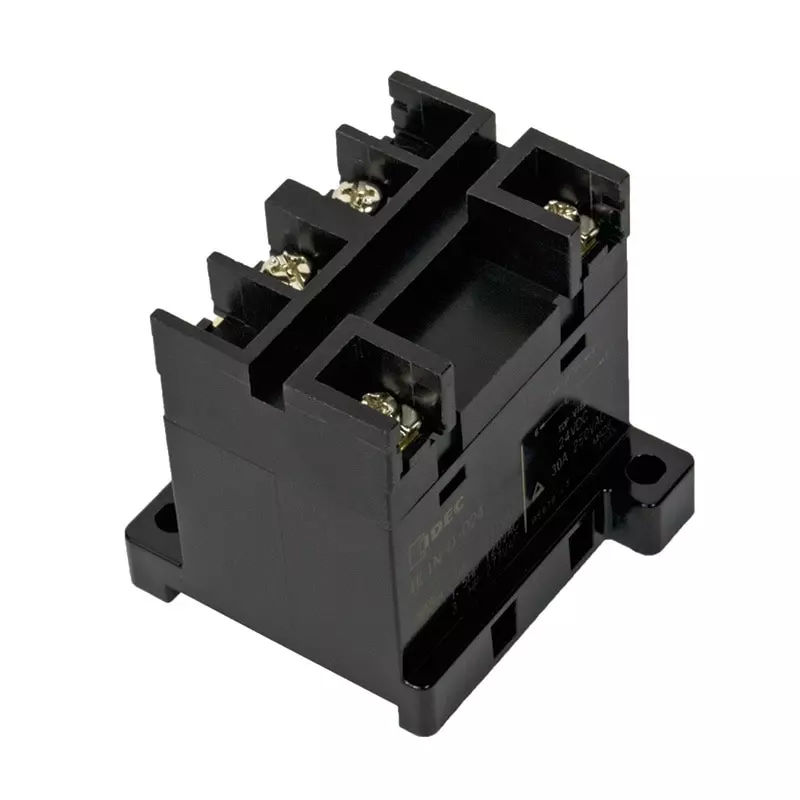

| Type of Product | RL type power relay RL1N |
| Model No | RL1N-D-A24 |
| Mass (g) | (Approximately) 130 |
Storage Temperature |
-25 To 85°C (But No Freezing) |
Type of Product |
RL type power relay RL1N |
Model No |
RL1N-D-A24 |
Mass (g) |
(Approximately) 130 |
Terminal Shape |
Screw Terminal |
Contact Configuration |
1A |
Mechanical Durability |
(No load) 1 million times or more (opening/closing frequency 10,800 times/hour) |
Rated Voltage (V) |
AC24 |
Return Time (ms) |
30 or less |
Contact Resistance |
50 mΩ or Less (Initial Value) |
Operating Time (ms) |
30 or less |
Monotaro ID |
63140605 |
Vibration Resistance |
Durability: Frequency 10 to 55Hz, half amplitude 0.75mm/Malfunction: Frequency 10 to 55Hz, half amplitude 0.75mm |
Contact |
1 pole |
Rated Current (mA) |
71.0(50Hz), 69.5(60Hz) |
Electrical Durability |
(Rated load) 100,000 times or more (opening/closing frequency 1200 times/hour) |
Type of Sign |
DIN Rail |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
IDEC Corporation |
Operation Ambient Temperature (°C) |
-25 To 55°C (No Icing) |
Shock Resistance (m/s²) |
Durability: 1000, Malfunction: 100 |
Insulation_Resistance (MΩ) |
over 100 MΩ |
Maximum Allowable Contact Current (A) |
30 |
Maximum Allowable Contact Voltage (V) |
AC277 |
Allowable Current (A) |
30 (contact) |
