Ships within 25 days
View
View
View
View
| Storage Temperature | -55 to 70 (no freezing) |

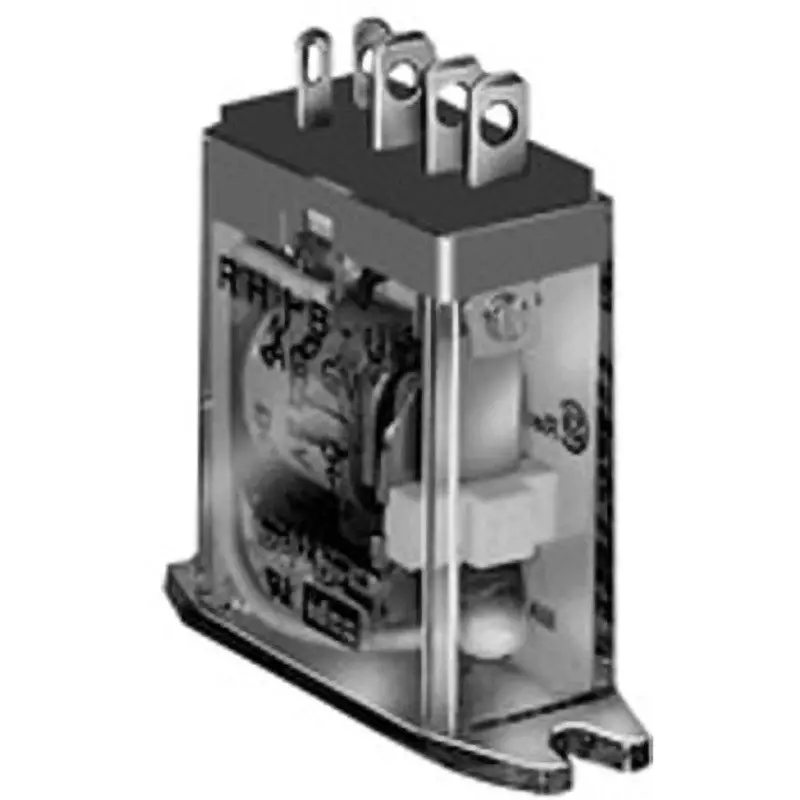

| Type of Product | Relay Plug |
| Model No | RH1B-UTAC6 |
| Terminal Shape | Blade terminal |
Storage Temperature |
-55 to 70 (no freezing) |
Type of Product |
Relay Plug |
Model No |
RH1B-UTAC6 |
Terminal Shape |
Blade terminal |
Return Voltage |
30% or more (initial value) [operating characteristics (at 20℃ against rated value)] |
Contact Configuration |
1c |
Mechanical Durability |
50 million times or more |
Type |
Power relay |
Minimum Applicable Load |
DC24V・30mA, DC5V・100mA (reference value) |
Rated Voltage (V) |
AC6 |
Maximum Continuous Applied Voltage |
110% [operating characteristics (at 20℃ for rated value)] |
Contact Resistance |
less than 50 mΩ |
No. of Pole |
1 |
Monotaro ID |
6443298 |
Power Consumption (VA) |
About 1.1 (50Hz) ・ About 1 (60Hz) |
Electrical Durability |
Over 200,000 times (AC110V, 10A) |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Protection Class |
In a case |
Name of Manufacturer/Packer/Importer |
IDEC Corporation |
Operation Ambient Temperature (°C) |
-25 to 50 (no freezing) |
Insulation_Resistance (MΩ) |
100 or more (DC500V mega) |
Return Time |
20 ms or less |
