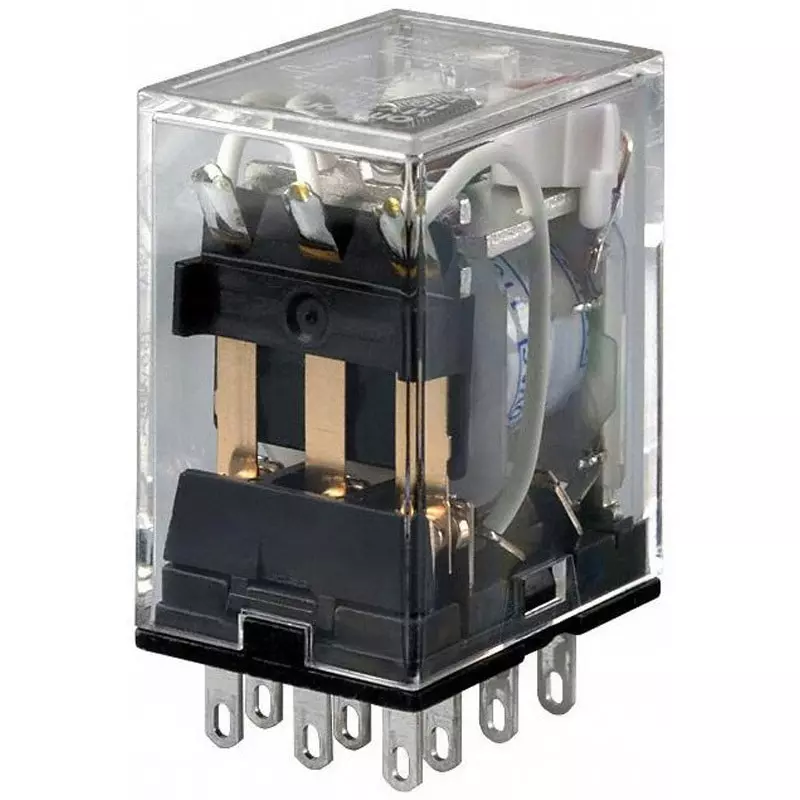

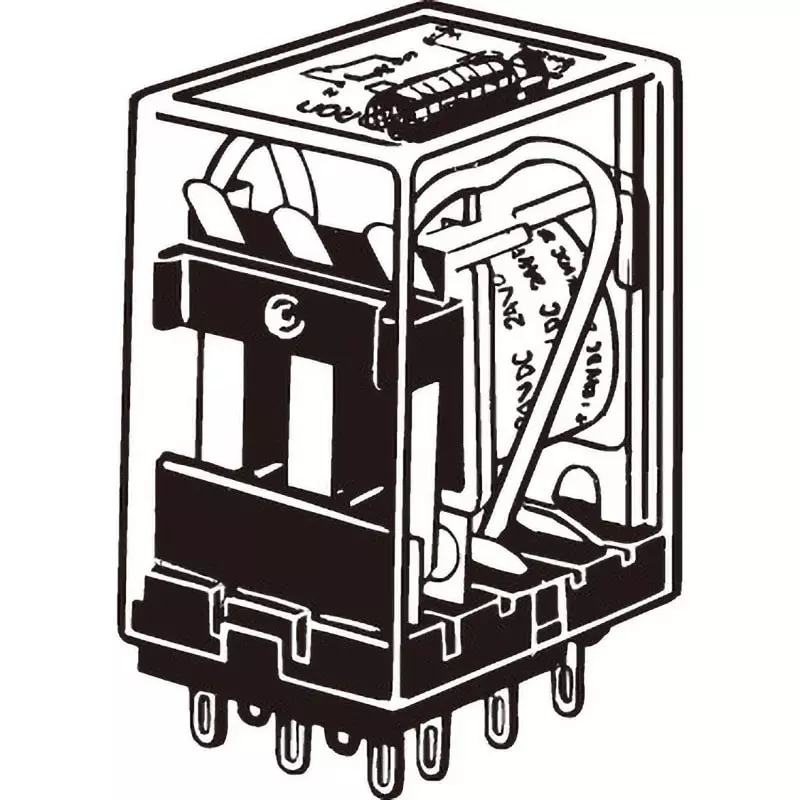

| Type of Product | General Relay |
| Model No | MY3-AC220/240 |
| Mass (g) | About 35 |
| Terminal Shape | Plug-In Terminal |
Type of Product |
General Relay |
Model No |
MY3-AC220/240 |
Mass (g) |
About 35 |
Terminal Shape |
Plug-In Terminal |
Return Voltage |
30% or more |
Operating Temperature Range |
-55 to 70 ℃ (no condensation or freezing) |
Contact Configuration |
3C |
Mechanical Durability |
AC 50 million times or more, DC 100 million times or more (opening and closing frequency 18,000 times/h) |
Type |
General relay |
Coil Resistance |
18790 Ω |
No. of Pole |
3 |
Monotaro ID |
46663872 |
Contact Material |
Ag |
Power Consumption |
Approx. 0.9 (60 Hz) to 1.3 (50 Hz) |
Classification |
Standard type |
Rated Current (mA) |
4.8/5.3(50 Hz), 4.2/4.6(60 Hz) |
Electrical Durability |
More than 500,000 times (rated load, switching frequency 1800 times/h, ambient temperature condition 23℃) |
Country of Origin |
JAPAN |
Import Country |
Direct Import from Japan |
Protection Class |
In a case |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Rated Coil Voltage |
AC 220/240 V |
Contact Resistance (ohm) |
50 mΩ or Less (DC 5 V 1 Amp voltage drop method) |
Insulation Resistance (MOhm) |
100 or more (measured with the DC500V insulation resistance meter at the same location as the withstand voltage) |
