| Type of Product | Signal Relay |
| Model No | G3VM-81HR |
| Application | Broadband, measuring equipment, data loggers, entertainment equipment, etc. |
| Mass (g) | About 0.13 |
Type of Product |
Signal Relay |
Model No |
G3VM-81HR |
Application |
Broadband, measuring equipment, data loggers, entertainment equipment, etc. |
Mass (g) |
About 0.13 |
Terminal Shape |
Surface mount terminal |
Operating Temperature Range |
-20 to 85 ℃ (no condensation or freezing) |
Contact Configuration |
1A |
Type |
Low on-resistance type |
Monotaro ID |
8587984 |
Standard |
RoHS Directive, UL |
Type of Sign |
Surface mount |
Insulation Type |
Photo diode coupler |
Load Voltage |
AC 80 peak V |

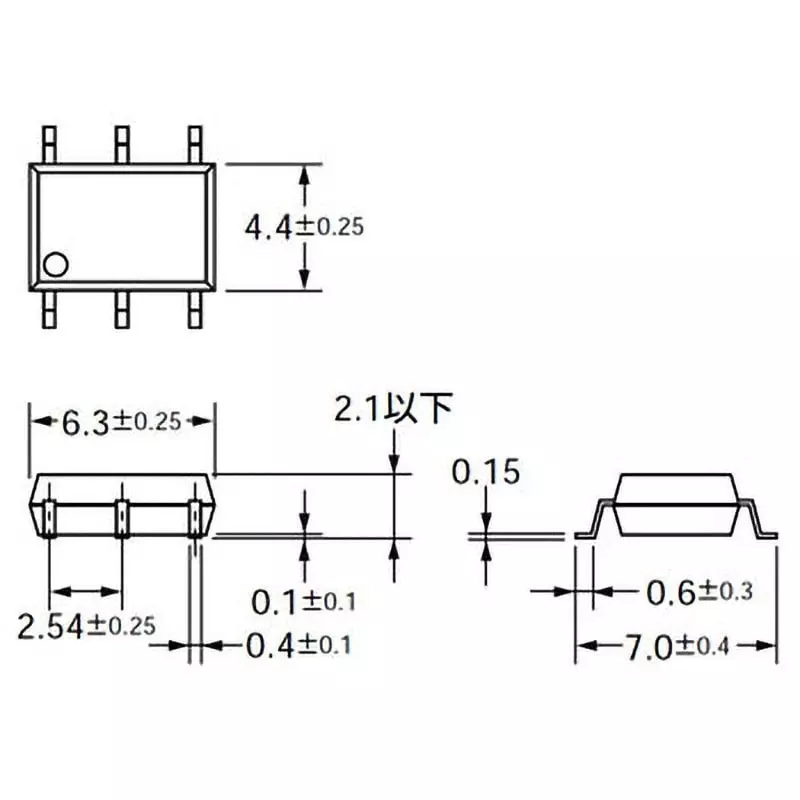

Shape |
SOP 6 pin |
Terminal Fitting Type |
Surface mount |
Country of Origin |
JAPAN |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Operation Ambient Temperature (°C) |
-20 to +85 (with no icing or condensation) |
