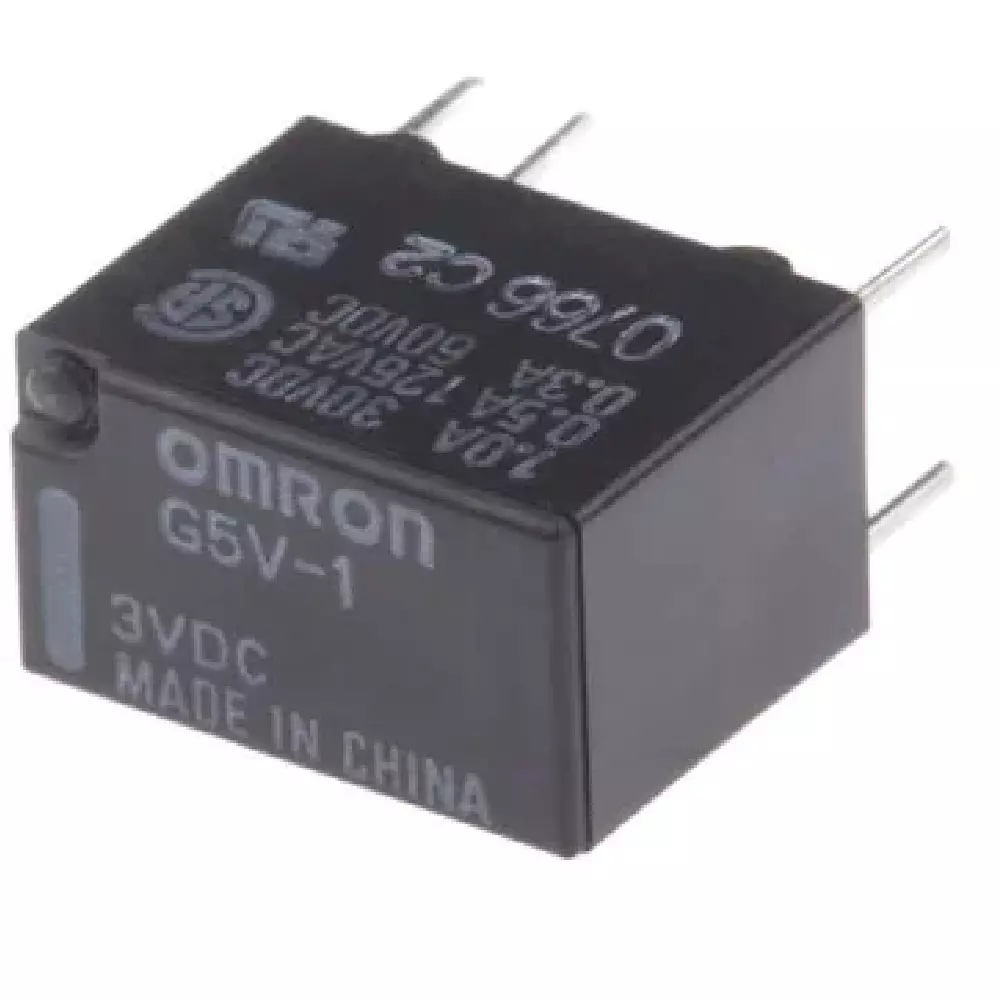

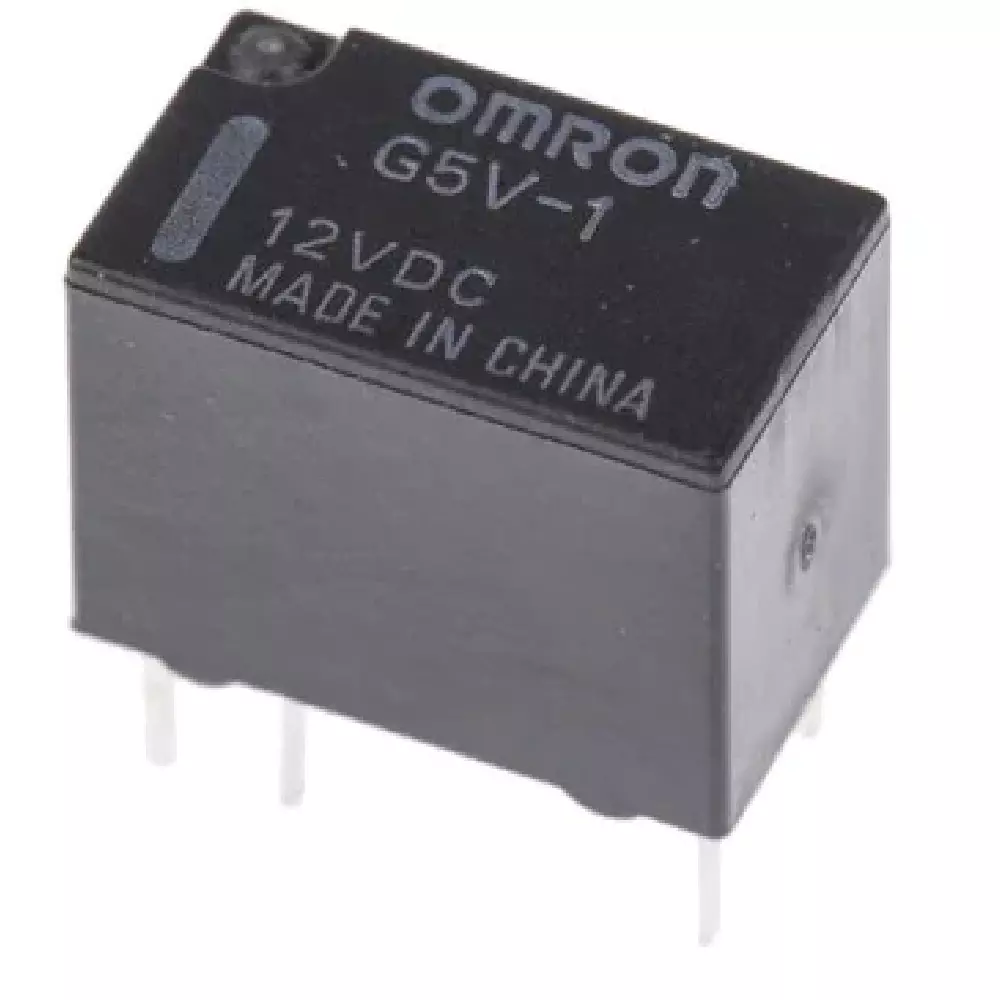

| Type of Product | Micro relay (compact, high sensitivity 1 pole signal relay) G5V-1 |
| Coil Voltage Rating (V) | DC5 |
| Mass (g) | About 2 |
| Return Voltage | More than 10 |
Type of Product |
Micro relay (compact, high sensitivity 1 pole signal relay) G5V-1 |
Coil Voltage Rating (V) |
DC5 |
Mass (g) |
About 2 |
Return Voltage |
More than 10 |
Mechanical Durability |
5 million operations or more (opening / closing frequency 36000 operations / h) |
Type |
Printed circuit board relays |
Contact Mechanism |
Crossbar single contact (Au alloy + Ag) |
Coil Resistance |
167±10% |
Rated Voltage (V) |
DC5 |
Shock Resistance |
1000m/s<sup>2</sup> |
Return Time (ms) |
5 or less |
Outer Dimensions (mm) |
7.5×12.5×10 |
Contact Resistance |
100 or less (DC1V 10mA voltage drop method) |
Rated Carrying Current (A) |
2 |
No. of Pole |
1 pole |
Vibration Resistance (Endurance) |
10 ～ 55 ～ 10Hz Single amplitude 1.65mm (double amplitude 3.3mm) |
Insulation Resistance |
1000 or more |
Operating Time (ms) |
5 or less |
Monotaro ID |
8588036 |
Vibration Resistance (Mis-operation) |
10 ～ 55 ～ 10Hz Single amplitude 1.65mm (double amplitude 3.3mm) |
Operating Voltage |
80% or less |
Standard |
RoHS Directive, UL60950, UL508, CSA (C22.2 No.0, No.14, No.950) |
Withstand voltage (V / min) |
Between coil and contacts: AC1000 50 / 60Hz, Between homopolar contacts: AC400 50 / 60Hz |
Rated Load |
AC125V 0.5A、DC24V 1A |
Operation Ambient Temperature |
-40 to +70 (with no icing or condensation) |
RoHS Directive |
10 substances |
Maximum Contact Voltage (V) |
AC125V DC60V |
Ambient Humidity to Use |
5～85%RH |
Rated Current (mA) |
30±10% |
Failure Rate P Level (Reference Value: at Switching Frequency 120 times/min) |
DC5V 1mA (Contact resistance failure judgment value is 100Ω) |
Power Consumption (mW) |
About 150 |
Maximum Allowable Voltage (V) |
200%(at23℃) |
Maximum contact current (A) |
1 |
Electrical Durability |
100,000 operations or more (Rated load switching frequency 1800 times / h) |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
