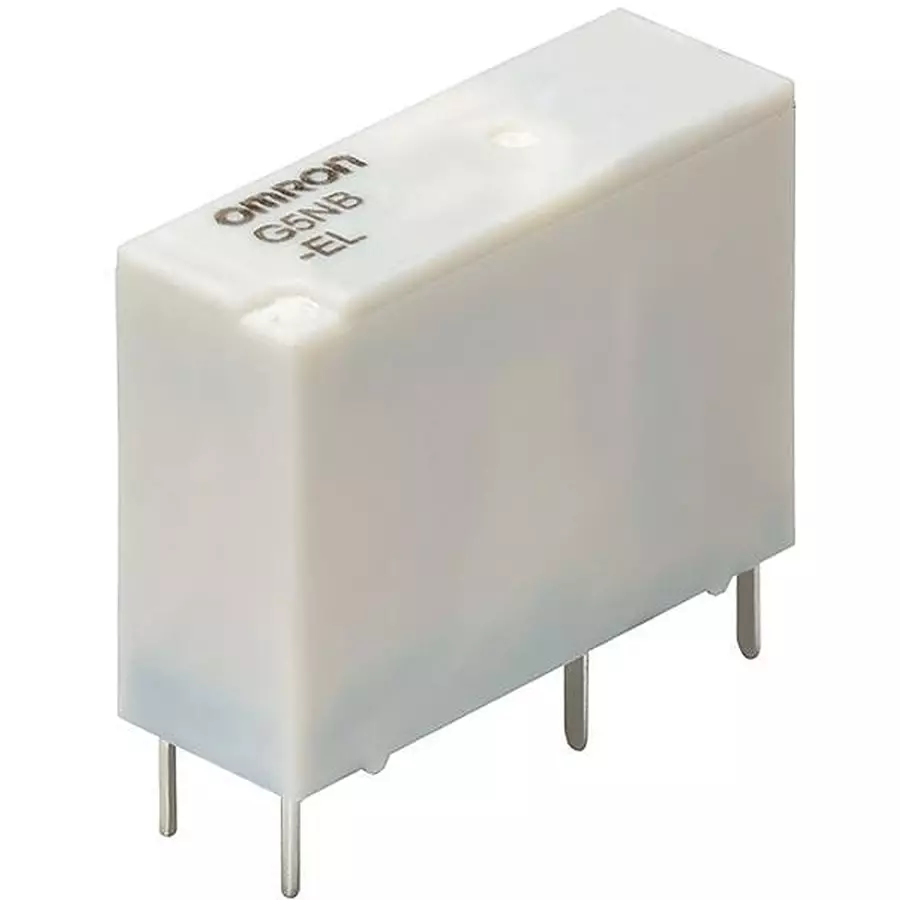

| Series | G5NB-EL |
| Type of Product | Slim Compact Relay |
| Coil Resistance | 720 Ohms |
| Contact Material | Silver Alloy |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Series |
G5NB-EL |
Type of Product |
Slim Compact Relay |
Coil Resistance |
720 Ohms |
Contact Material |
Silver Alloy |
Switching Voltage |
250 V AC, 30 V DC |
Contact Current Rating |
5 & 7 Amp |
Mounting Style |
PCB Mount |
Coil Type |
Non-Latching |
Coil Termination |
PC Pin |
Contact Termination |
Solder Pin |
Relay Contact Form |
1 Form A (SPST) |
Coil Voltage |
12 V DC |
Height |
15 mm |
Width |
7 mm |
Length |
20.4 mm |
Country of Origin |
India |
Coil Current |
16.7 mA |
Manufacturer Part Number |
G5NB-1A4-EL-HA-CF-SP DC12 |
Name of Manufacturer/Packer/Importer |
Omron Electronics |
Ordering ID |
653-G5NB1A4HCFSPDC12 |
Data Sheet |
https://www.mouser.in/datasheet/3/39/1/en-g5nb_el.pdf |
RoHS Compliant |
Yes |
Packaging Type |
Tube |
