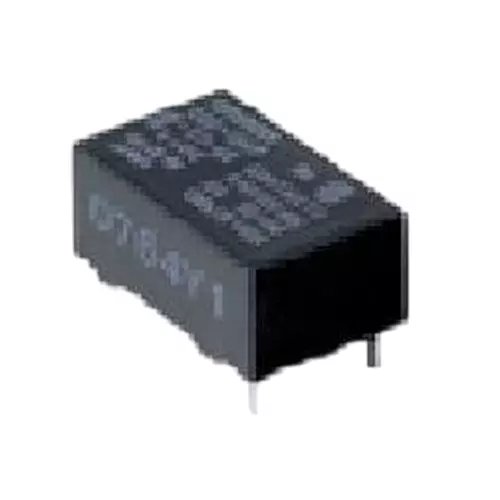

| Series | G6E |
| Type of Product | Low Signal Relay |
| Power Consumption | 400 mW |
| Contact Rating | 200 mA, 600 mA, 2 Amp |
Series |
G6E |
Type of Product |
Low Signal Relay |
Power Consumption |
400 mW |
Contact Rating |
200 mA, 600 mA, 2 Amp |
Contact Current Rating |
2 Amp |
Coil Type |
Non-Latching |
Contact Termination |
Solder Pin |
Relay Contact Form |
1 Form C (SPDT-NO, NC) |
Coil Voltage |
48 V DC |
Maximum Switching Current |
3 Amp |
Country of Origin |
India |
Coil Current |
8.3 mA |
Manufacturer Part Number |
G6E-134P-ST-US-DC48 |
Name of Manufacturer/Packer/Importer |
Omron Electronics |
Ordering ID |
653-G6E134PSTUSDC48 |
Data Sheet |
https://www.mouser.in/datasheet/3/39/1/en-g6e.pdf |
RoHS Compliant |
Yes |
