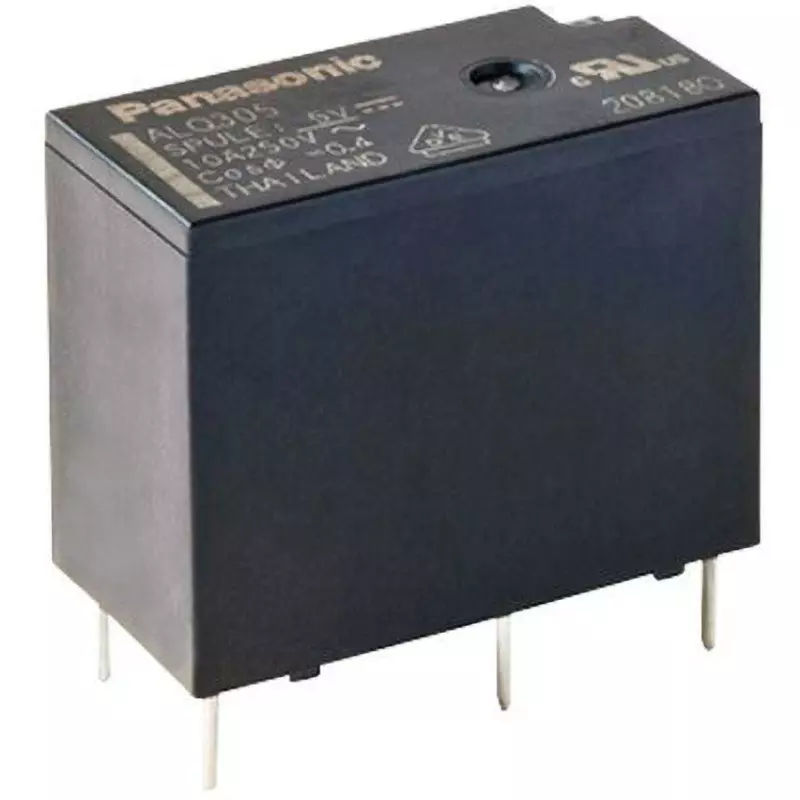

| Type of Product | General-Purpose Relay |
| Model No | ALQ3F24 |
| Application | Air conditioners, cooking ovens, home appliances, industrial equipment, motor controls, power supplies, refrigerators, robots, washing machines |
| Terminal Shape | Printed Circuit Board Terminal |
Type of Product |
General-Purpose Relay |
Model No |
ALQ3F24 |
Application |
Air conditioners, cooking ovens, home appliances, industrial equipment, motor controls, power supplies, refrigerators, robots, washing machines |
Terminal Shape |
Printed Circuit Board Terminal |
Contact Configuration |
1 Amp |
Coil Resistance |
2.88k |
Monotaro ID |
47786437 |
Terminal Type |
Board pin |
Rated Current (mA) |
8.3000000000000007 |
Switching Current |
10 Amp |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Length (mm) |
20 |
Height (mm) |
15.6 |
Protection Class |
Plastic seal |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Pack of |
1 Pc |
Maximum Switching Voltage (AC) |
250 V |
Maximum Switching Voltage (DC) |
30 V |
Contact Rated Control Capacity (Resistive Load) |
DC30V 5A/AC125V 10A/AC250V 5A |
Maximum Allowable Contact Current (A) |
10(AC125V)/5(DC30V) |
Specifications |
Lq(Alq) Series-Pcb Relays. Introducing Panasonic'S Lq(Alq) Series Power Relays. The Relay Is Small In Size, Can Operate At High Operating Power And Is Extremely Reliable And Robust Under Demanding Operating Conditions. Lq Relays Can Be Used In Various Industries And Applications Such As Electrical Appliances, White Goods, Energy, Lighting Equipment, Industrial Equipment, Robots And Power Supplies. Features And Benefits Compact Size And High Switching Capacity Ambient Temperature -40 To +85°C High Surge Voltage 8000V High Withstand Voltage 4000V High Insulation Resistance Applications: Refrigerator Cooking Oven Washing Machine Air Conditioner Motor Control Robot Power Supply |
Maximum Allowable Contact Voltage (V) |
AC250/DC30 |
Rated Coil Voltage |
DC 24 |
Operating Temperature (c) |
-40 |
