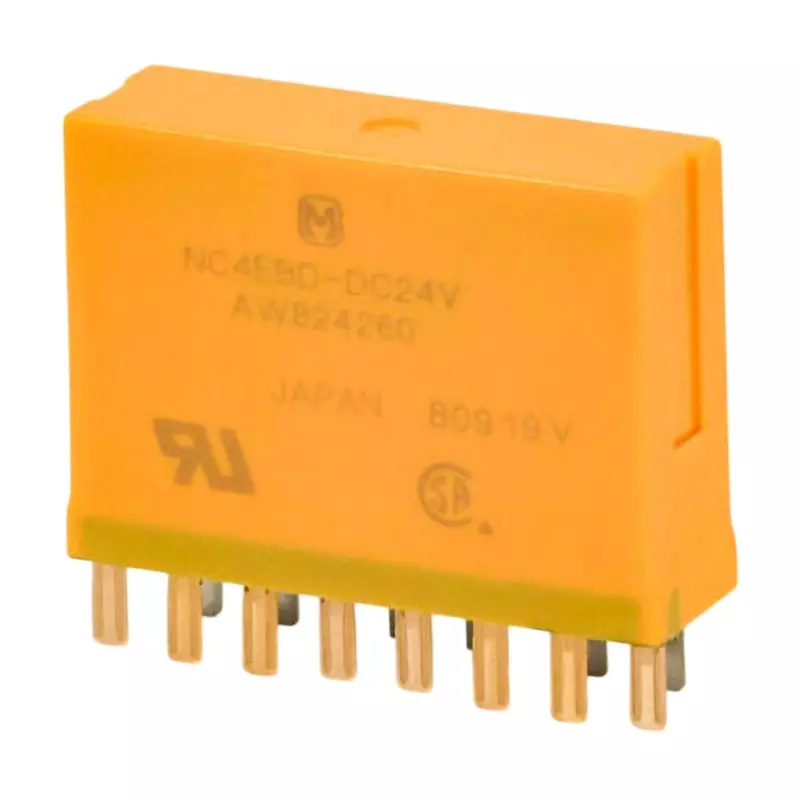

| Type of Product | Nc Relay |
| Model No | AW824260 |
| Mass (g) | About 19 |
| Terminal Shape | Plug-in terminal (slim type DC) |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Nc Relay |
Model No |
AW824260 |
Mass (g) |
About 19 |
Terminal Shape |
Plug-in terminal (slim type DC) |
Contact Configuration |
4c |
Minimum Applicable Load |
100 μA 1V DC |
Coil Resistance |
800(±10%, 20℃) |
Shock Resistance |
980m/s² (Half-sine pulse: 6ms) |
Operating Time (ms) |
20 Or Less At Rated Coil Voltage (At 20°C, Not Including Contact Bounce) |
Monotaro ID |
73938962 |
Standard |
UL, CSA |
Contact Material |
AgNi-based Au clad |
Power Consumption (mW) |
720 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Vibration Resistance (Malfunction) |
10 to 55Hz (double amplitude: 1 mm, detection time: 10μs) |
Shock Resistance (Malfunction) |
98m/s² (Half-sine pulse: 11ms, detection time: 10μs) |
Vibration Resistance (Destruction) |
10-55Hz (double amplitude: 2 mm) |
Dimension (mm) |
38.1x11.2x27.8 |
Protection Class |
Plastic seal |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Applicable Voltage (V) |
110% Of Rated Coil Voltage (50℃) |
Pack of |
20 Pcs |
Rated Coil Voltage |
DC 24 |
Contact Resistance (ohm) |
50 or less (6 V DC 1 A voltage drop method) |
Insulation Resistance (MOhm) |
100 or more (measured at the same location as the withstand voltage with a 500 V DC insulation resistance tester) |
Open Voltage (V) |
10% or less of the rated coil voltage (20°C, initial) |
