| Type of Product | Liquid Level Relay Standard Set |
| Model No | TBL12 |
| Mass (g) | 930 |
| Contact Configuration | 1C |
Type of Product |
Liquid Level Relay Standard Set |
Model No |
TBL12 |
Mass (g) |
930 |
Contact Configuration |
1C |
Rated Voltage (V) |
AC250/DC24 |
Monotaro ID |
6945416 |
Material |
TBLR (3m) [Tetron] |
Rated Current (A) |
AC1.5/DC3 |
Applicable Standard |
Electrical Appliance and Material Safety Act/PSE mark |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Protection Class |
IP33 |
Name of Manufacturer/Packer/Importer |
Patlite Corporation |
Rating |
1c AC250V 2A / DC30 3A (Motor load) |
Specifications |

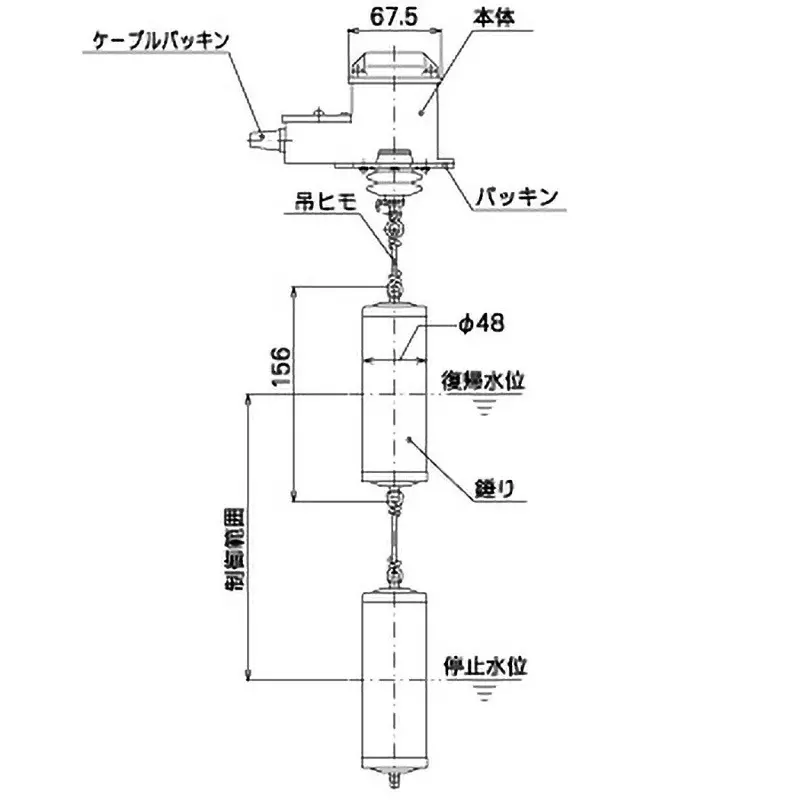

●Control range: 0.18 to 10m●Air pressure inside the tank: 1 atm |
Minimum Load Current |
160 mA |
Operating Temperature (c) |
-10 to 50 |
Durability |
Mechanical: 500,000 times or more, Electrical: 500,000 times or more |
Correction |
Nissui liquid level relay |
Specific Gravity |
0.85 to 1.05 |
String Length (m) |
3 |

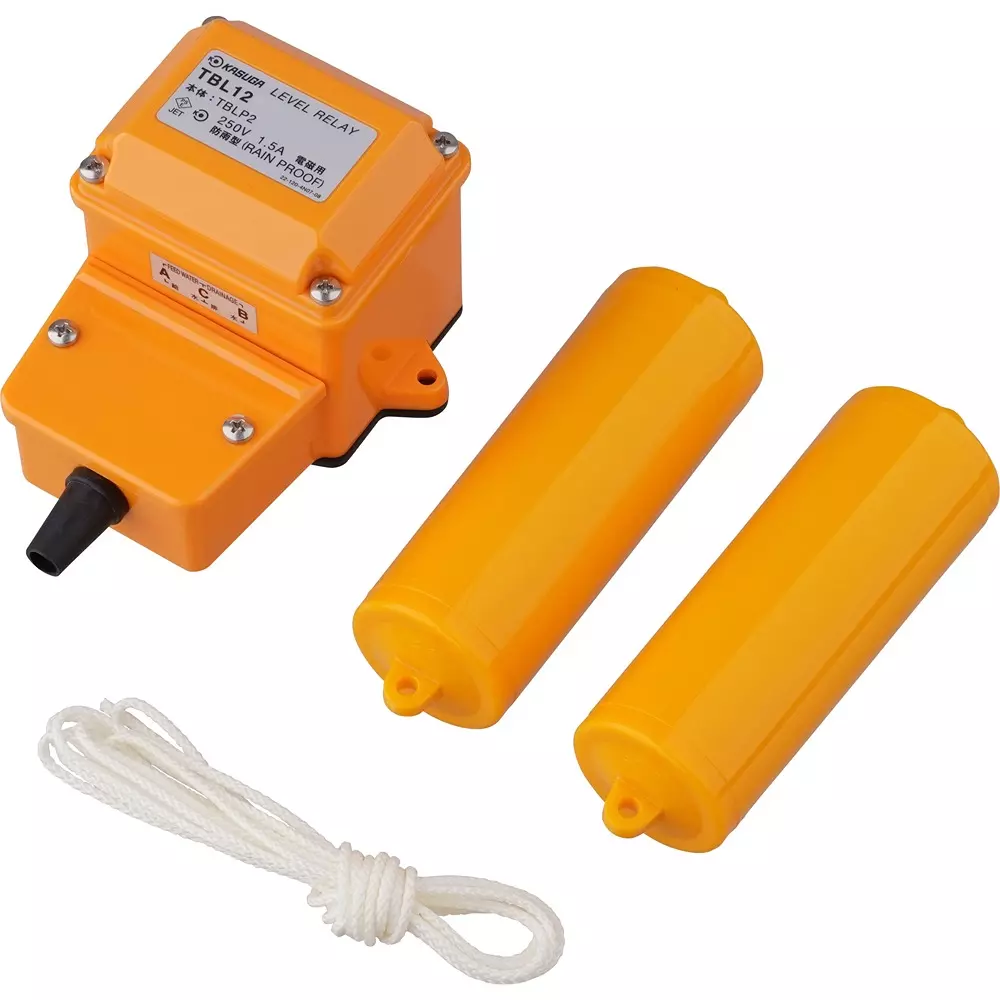

Set Contents |
TBLP2, TBLS, TBLR |
Specific Gravity Range |
0.85 to 1.05 |
Main Unit Material |
TBLP2 [Polycarbonate] |
