| Type of Product | Signal Relay |
| Application | Signal |
| Features | High Sensitive, 1 Form C Configuration, Wash Tight Type Available |
| Operating Temperature Range | -30 - +70°C |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Signal Relay |
Application |
Signal |
Features |
High Sensitive, 1 Form C Configuration, Wash Tight Type Available |
Operating Temperature Range |
-30 - +70°C |
Contact Configuration |
SPDT |
Coil Resistance |
405Ω |
No. of Pole |
1 |
Terminal Type |
PCB Pin |
Contact Material |
AgNi + Au |

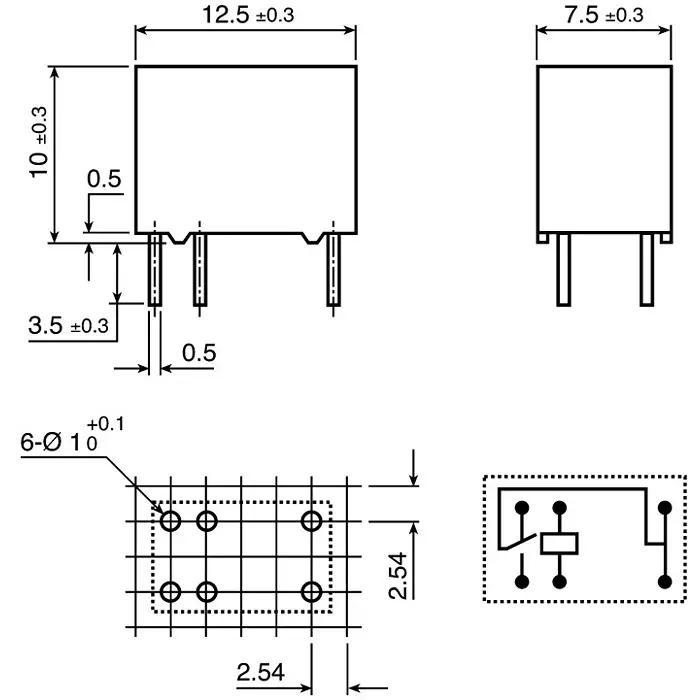

Dimension |
12.5 x 10 x 7.5mm |
Coil Voltage |
12V dc |
Electrical Life |
10^5 Operations |
Mounting Type |
PCB Mount |
Height |
10mm |
Depth |
7.5mm |
Length |
12.5mm |
Switching Current |
2A |
Country of Origin |
China |
Name of Manufacturer/Packer/Importer |
RS PRO |
Maximum Operating Temperature |
+70°C |
Minimum Operating Temperature |
-30°C |
Maximum Switching Voltage (AC) |
125V |
Maximum Switching Voltage (DC) |
60V |
Operating Cycle |
10000000 (Mechanical) cycles, 90000 (Electrical) cycles |
Maximum Switching Power AC |
62.5VA |
Standards Met |
CQC 02001001948, RoHS Compliant, UL E133481 |
Relay Switching Classification |
Subminiature Signal Relay |
Maximum Switching Current (AC) |
2 A |
Maximum Switching Voltage DC |
60V |
Maximum Switching Power DC |
30 W |
Coil Power Consumption |
50mW |
Maximum Switching Current (DC) |
2 A |
Latching |
No |
Isolation Coil To Contact |
1.8kV rms |
