| Series | RT1 |
| Type of Product | Relay |

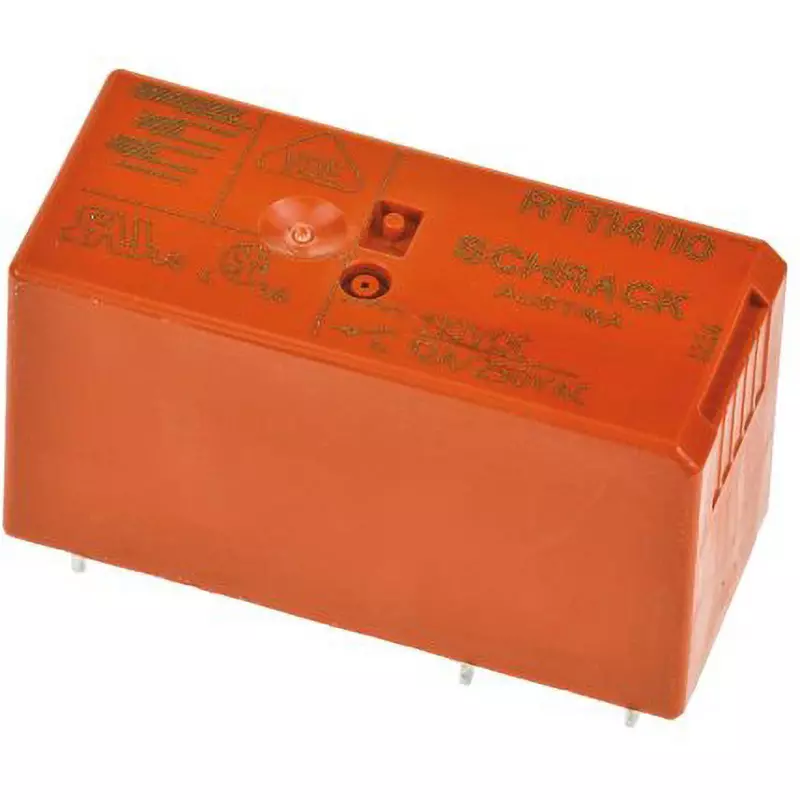

| Model No | RT114110 |
| Application | Electric power |
Series |
RT1 |
Type of Product |
Relay |
Model No |
RT114110 |
Application |
Electric power |
Terminal Shape |
PCB, plug-in |
Contact Configuration |
1c |
Coil Resistance |
2880 Ω |
No. of Pole |
1 |
Monotaro ID |
47290453 |
Contact Material |
Silver/nickel alloy |
RoHS Directive |
Correspondence |
Type of Sign |
Board mounting |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Length (mm) |
29 |
Dimension (mm) |
29x12.7x15.7 |
Height (mm) |
15.7 |
Protection Class |
flux proof |
Name of Manufacturer/Packer/Importer |
Tyco Electronics Japan G.K. |
Maximum Allowable Contact Current (A) |
12 |
Specifications |
UL, CSA, VDE. Manufacturer part numbers (RT .. F) F: Coil insulation system (UL Class F compliant). TE Connectivity RT1, RT2 Series PCB Power Relays. RT Series 1 and Series 2 through hole mount PCB power relays are available with a variety of contact configurations and coil voltages. RT1 PCB: 3.5 mm pin spacing and flux resistant RT2 PCB: 5 mm pin spacing and flux resistant RT3 PCB: 5 mm pin spacing and flux resistant RTB PCB: 3.5 mm pin spacing and wash down resistant RTD PCB: 5 mm pin spacing and wash down resistant RT4 PCB: 5 mm pin spacing and flux resistant RTE PCB: 5 mm pin spacing and wash down resistant. Creepage and clearance: 10//10 mm Applications: Interface, automation, domestic applications, security lighting, heating |
Maximum Allowable Contact Voltage (V) |
AC 250 |
Rated Coil Voltage |
DC 110 V |
Operating Temperature (c) |
-40 to 85℃ |
