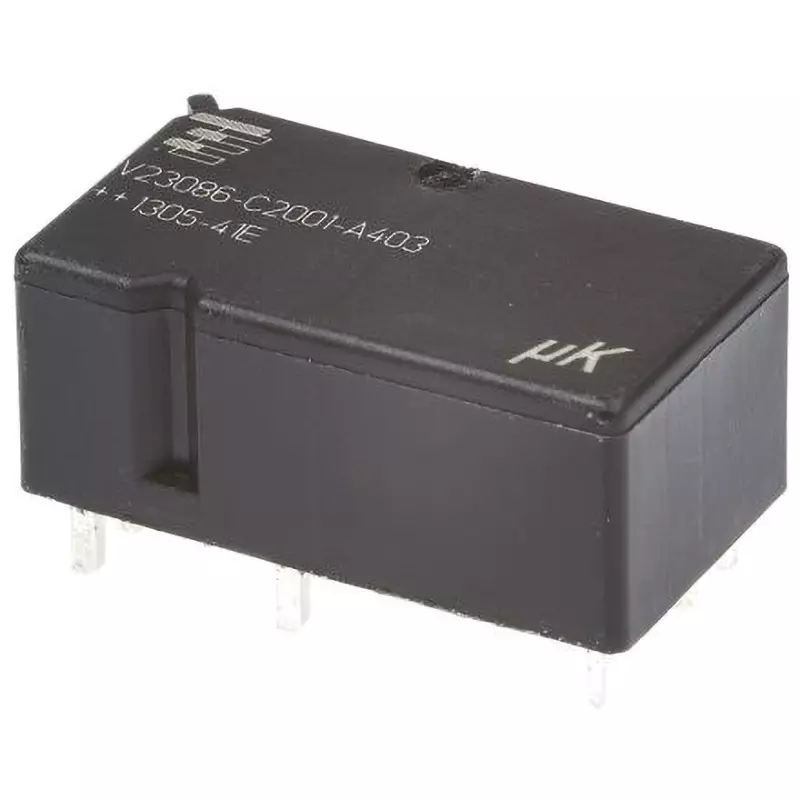

| Type of Product | Automotive Relay |
| Model No | V23086C2001A403 1413009-9 |
| Contact Configuration | 2c |
| Rated Voltage (V) | DC 12 |
Type of Product |
Automotive Relay |
Model No |
V23086C2001A403 1413009-9 |
Contact Configuration |
2c |
Rated Voltage (V) |
DC 12 |
Monotaro ID |
41354584 |
RoHS Directive |
Correspondence |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Tyco Electronics Japan G.K. |
Specifications |
Coil Voltage = 12 V DC Contact Configuration = DPDT Mounting Type = Board Mount Terminal Type = Through Hole Coil Resistance = 181 Ω Application Type = Power Length = 23.6mm Depth = 12.9mm Height = 10.2mm Dimensions = 23.6 x 12.9 x 10.2mm Operating Temperature Range = -40 to +105°C Micro Power K Series Twin Board Relay. Contain two high current SPCO relays in a single housing Through hole board mounting Maximum continuous current: 30 A Typical automotive applications: rear window and Seat heater, wiper and indicator control, motor management Dimensions: W 23.6 x D 12.9 x H 9.9 mm |
