| Series | SNR |
| Type of Product | Relay |

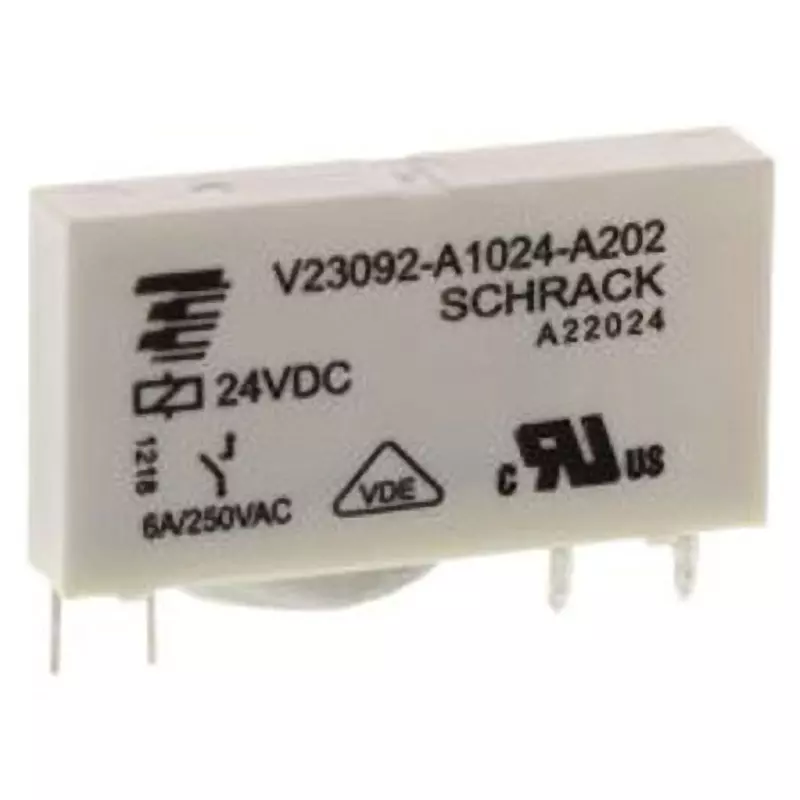

| Model No | V23092A1024A202 |
| Mass (g) | 6 |
Series |
SNR |
Type of Product |
Relay |
Model No |
V23092A1024A202 |
Mass (g) |
6 |
Terminal Shape |
PC pin |
Operating Temperature Range |
-40 to 85℃ |
Contact Configuration |
SPST |
Type |
Relay: General Purpose Power Relay |
No. of Pole |
1 |
Monotaro ID |
47293305 |
Material |
Terminal plating: Gold |
Rated Current (A) |
Terminals: 6 |
Type of Sign |
Board mounting |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Length (mm) |
28 |
Dimension (mm) |
Insulation creepage between contacts/coil: 8 |
Height (mm) |
15 |
Protection Class |
wash tight |
Name of Manufacturer/Packer/Importer |
Tyco Electronics Japan G.K. |
Specifications |
UL, CSA, VDE. SNR Series - Slim Relay. High coil sensitivity: 170 mW. Compact design (5 mm thickness) for high density PCB mounting. Creepage and clearance: 8 mm, 6 mm. Coil to contact insulation: 4000 Vac |
Rated Coil Voltage |
DC 24 V |
Current (A) (50/60Hz) |
Terminal limit continuous: 10, terminal limit short time: 6, terminal limit input: 10 |
Performance |
Wash resistance |
