| Type of Product | Relay |
| Model No | 1415899-4 |
| Rated Voltage (V) | DC 12 |
| Monotaro ID | 40973626 |
Type of Product |
Relay |
Model No |
1415899-4 |
Rated Voltage (V) |
DC 12 |
Monotaro ID |
40973626 |
RoHS Directive |
Correspondence |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Tyco Electronics Japan G.K. |
Specifications |

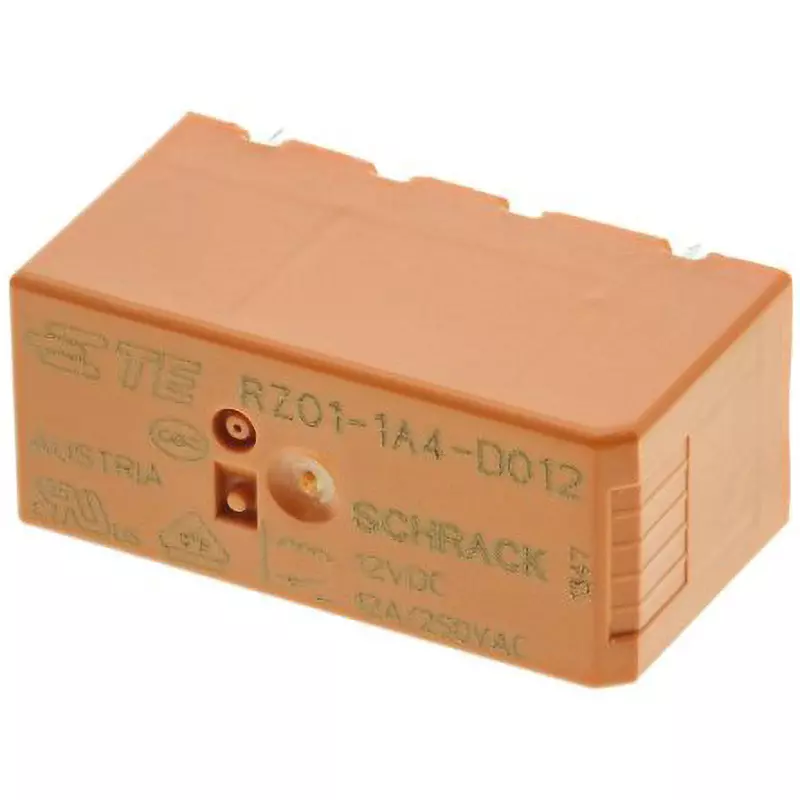

Coil Voltage = 12 V DC Contact Configuration = SPNO Switching Current = 12 A Terminal Type = Substrate Pin Coil Resistance = 360 Ω Maximum Switching Voltage AC = 400V Application Type = Multipurpose Length = 29 mm Depth = 12.7 mm Height = 15.7 mm Dimensions = 29 x 12.7 x 15.7 mm Operating Temperature Min = -40°C VDE and UL. TE Connectivity RZ Series PCB Power Relays. RZ Series PCB Mount Power Relays Power Relays with 400 mW DC Coil and 5 kV/10 mm Reinforced Insulation. These RZ series PCB mount power relays are flux-tight and have silver-nickel alloy contacts. 12 A version of RZ series PCB mount power relay has 3.5 mm pinning 16 A version of RZ series PCB mount power relay has 5 mm pinning. Meets 1 requirements |
