| Series | RP3SL |

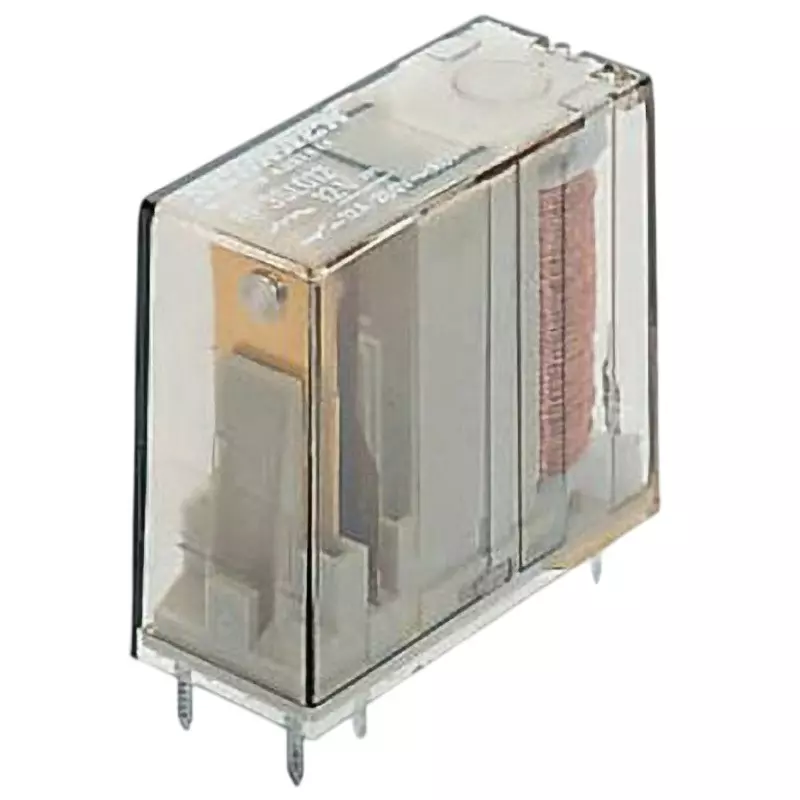

| Type of Product | Relay |
| Model No | 6-1393231-5 |
| Terminal Shape | PCB |
Series |
RP3SL |
Type of Product |
Relay |
Model No |
6-1393231-5 |
Terminal Shape |
PCB |
Contact Configuration |
SPNO |
Coil Resistance |
1100 Ω |
No. of Pole |
1 |
Monotaro ID |
47291004 |
Contact Material |
Silver alloy |
Type of Sign |
Board mounting |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Length (mm) |
29 |
Dimension (mm) |
29x12.6x25.5 |
Height (mm) |
25.5 |
Protection Class |
Enclosed - Complete |
Name of Manufacturer/Packer/Importer |
Tyco Electronics Japan G.K. |
Pack of |
20 Pcs |
Specifications |
UL, CSA, VDE. RP3SL Series. 120 A, 20 ms inrush current capability. 5 mm pins. For available DIN rail mounting sockets see part number: 400-9130 400-9130. Applications: Lighting control, timers, motor control, home automation. Creepage and clearance: 8 mm. Coil to contact insulation: 4000 Vac |
Rated Coil Voltage |
DC 12 V |
