| Series | PT |
| Type of Product | Relay |

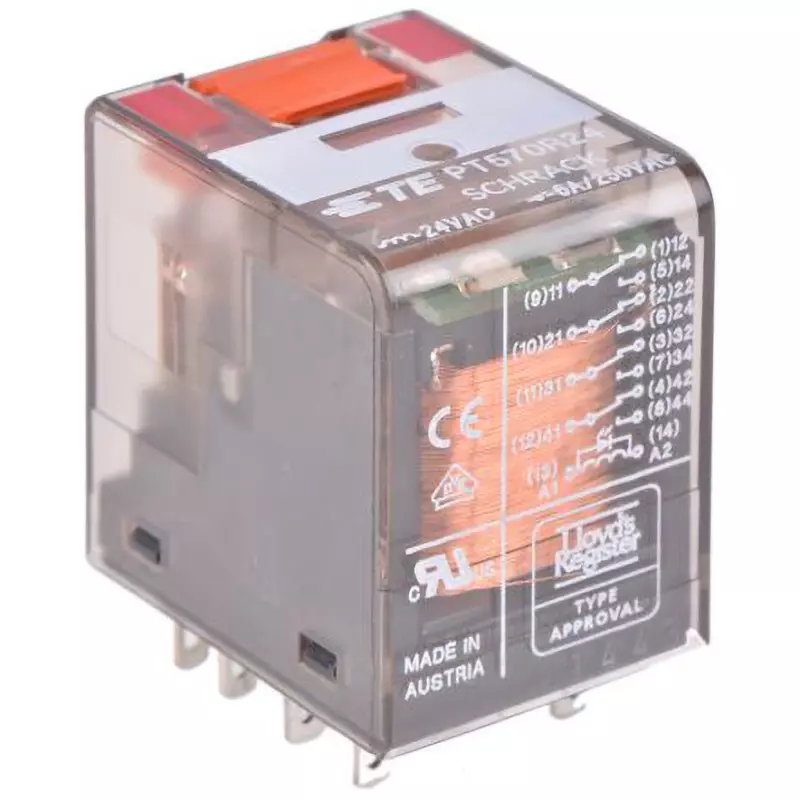

| Model No | PT570R24 7-1415001-1 |
| Mass (g) | 30 |
Series |
PT |
Type of Product |
Relay |
Model No |
PT570R24 7-1415001-1 |
Mass (g) |
30 |
Terminal Shape |
soldering, plug-in |
Operating Temperature Range |
-40 to 70℃ |
Contact Configuration |
4PDT |
Type |
Relay: General Purpose Power Relay |
No. of Pole |
4 |
Monotaro ID |
47292824 |
Rated Current (A) |
Terminals: 6 |
Type of Sign |
Socket mounting |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Length (mm) |
28 |
Dimension (mm) |
Insulation creepage between contacts/coil: 4, Insulation clearance between contacts/coil: 3 |
Height (mm) |
29 |
Protection Class |
flux proof |
Name of Manufacturer/Packer/Importer |
Tyco Electronics Japan G.K. |
Specifications |
PT Series with LED indicator. Cadmium-free contacts LED and mechanical indicator Manual/lockable test function Coil-to-contact insulation: 2.5 kV Plug-in type |
Rated Coil Voltage |
AC 24 V |
Current (A) (50/60Hz) |
Terminal short-time limit: 300, terminal input limit: 12 |
