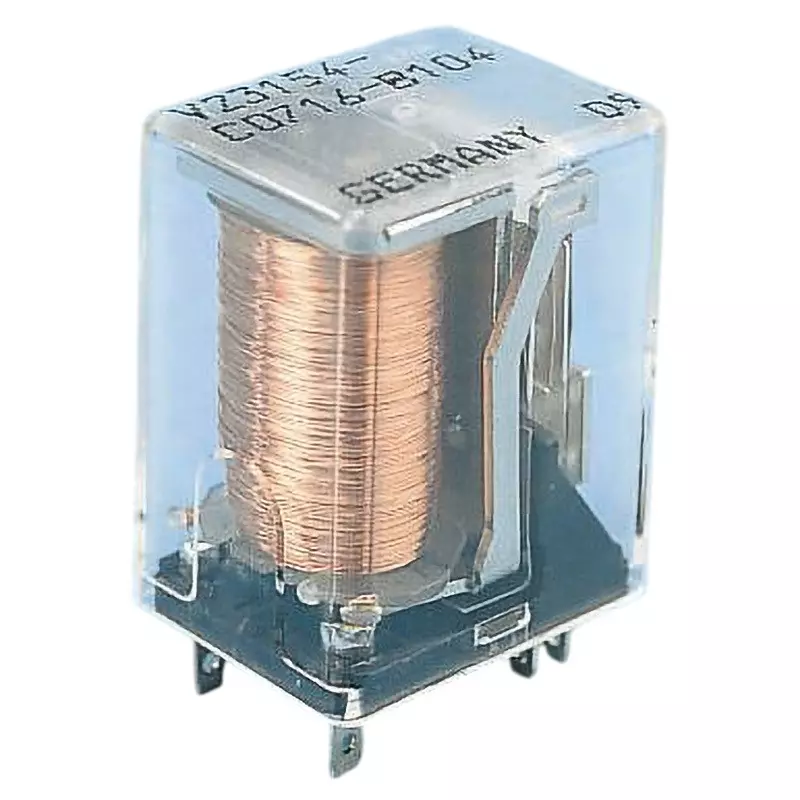

| Type of Product | Relay |
| Model No | V23154D 719B110 |
| Application | signal |
| Operating Temperature Range | -40 to +70℃ |
Type of Product |
Relay |
Model No |
V23154D 719B110 |
Application |
signal |
Operating Temperature Range |
-40 to +70℃ |
Contact Configuration |
SPDT |
Coil Resistance |
325 Ω |
Monotaro ID |
47292018 |
Terminal Type |
Through hole |
RoHS Directive |
Correspondence |
Coil Voltage |
15 V DC |
Switching Current |
2 Amp |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Length (mm) |
30 |
Dimension (mm) |
19x30x35.5 |
Height (mm) |
30 |
Name of Manufacturer/Packer/Importer |
Tyco Electronics Japan G.K. |
Pack of |
5 Pcs |
Specifications |
Cradle Relays. Miniature plug-in relays. Sockets sold separately. Applications - Co mmunications, Test and Measurement Equipment. Contact Material: Silver, Gold Sputtered. 2.5 A 120 V AC Standard. 5 A 250 V AC Heavy Duty. Dust Proof. |
Rated Coil Voltage |
DC 15 V |
Operating Temperature (c) |
-40 to 70℃ |
Maximum Switching Power Supply (AC+VA) |
50 |
