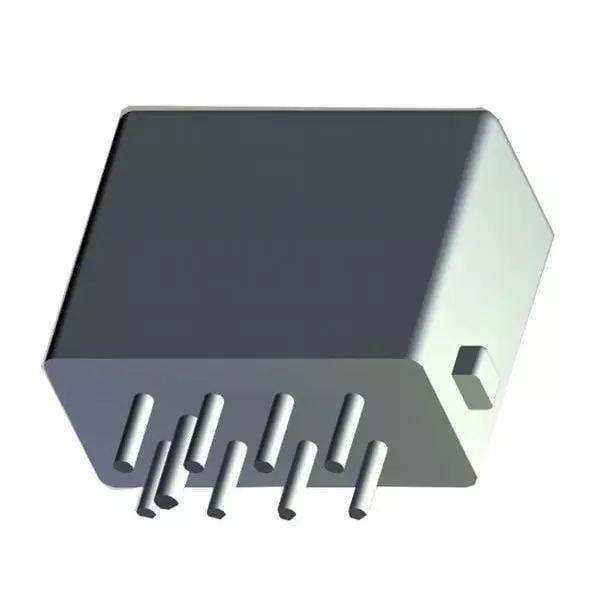

| Series | FCB-205 |
| Type of Product | Mid Range Relay |
| Coil Resistance | 500 Ohms |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
Series |
FCB-205 |
Type of Product |
Mid Range Relay |
Coil Resistance |
500 Ohms |
Contact Material |
Silver Cadmium Oxide (AgCdO) |
Switching Voltage |
115 V AC, 28 V DC |
Contact Current Rating |
5 Amp |
Mounting Style |
Through Hole |
Coil Type |
Non-Latching |
Coil Termination |
Solder Pin |
Contact Termination |
Solder Pin |
Relay Contact Form |
2 Form C (DPDT-NO, NC) |
Coil Voltage |
28 V DC |
Height |
16.26 mm |
Width |
10.41 mm |
Length |
20.57 mm |
Country of Origin |
India |
Manufacturer Part Number |
M83536/2-028M |
Name of Manufacturer/Packer/Importer |
TE Connectivity / Raychem |
Ordering ID |
655-M83536/2-028M |
Data Sheet |
https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=FCB-205-0228M&DocType=Customer+Drawing&DocLang=English&DocFormat=pdf&PartCntxt=5-1617758-4 |
RoHS Compliant |
No |
