| Series | FW |

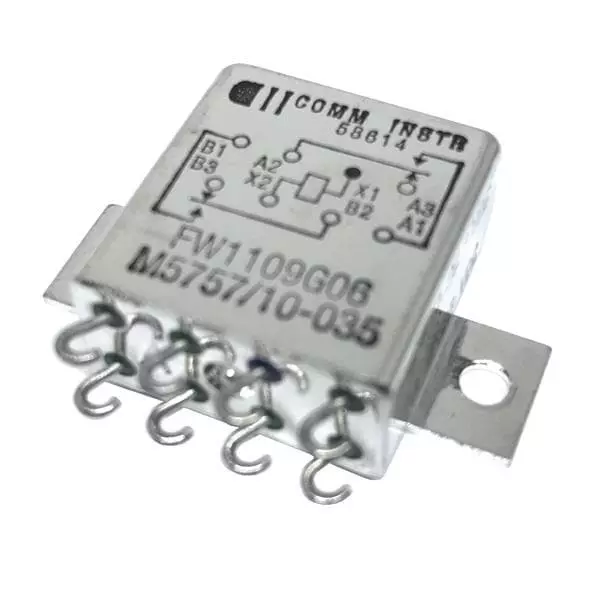

| Type of Product | Full Size Relay |
| Coil Resistance | 675 Ohms |
| Contact Material | Silver Alloy (Ag) |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Series |
FW |
Type of Product |
Full Size Relay |
Coil Resistance |
675 Ohms |
Contact Material |
Silver Alloy (Ag) |
Switching Voltage |
28 V DC |
Contact Current Rating |
2 Amp |
Mounting Style |
Panel Mount |
Coil Type |
Non-Latching |
Coil Termination |
Solder Hook |
Contact Termination |
Solder Hook |
Relay Contact Form |
2 Form C (DPDT-NO, NC) |
Coil Voltage |
26.5 V DC |
Country of Origin |
India |
Manufacturer Part Number |
M5757/10-035 |
Name of Manufacturer/Packer/Importer |
TE Connectivity / Raychem |
Ordering ID |
655-M5757/10-035 |
Data Sheet |
https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=FW1109G06&DocType=Data+Sheet&DocLang=English&DocFormat=pdf&PartCntxt=2-1617019-3 |
RoHS Compliant |
No |
