| Series | RPII |
| Type of Product | Relay |

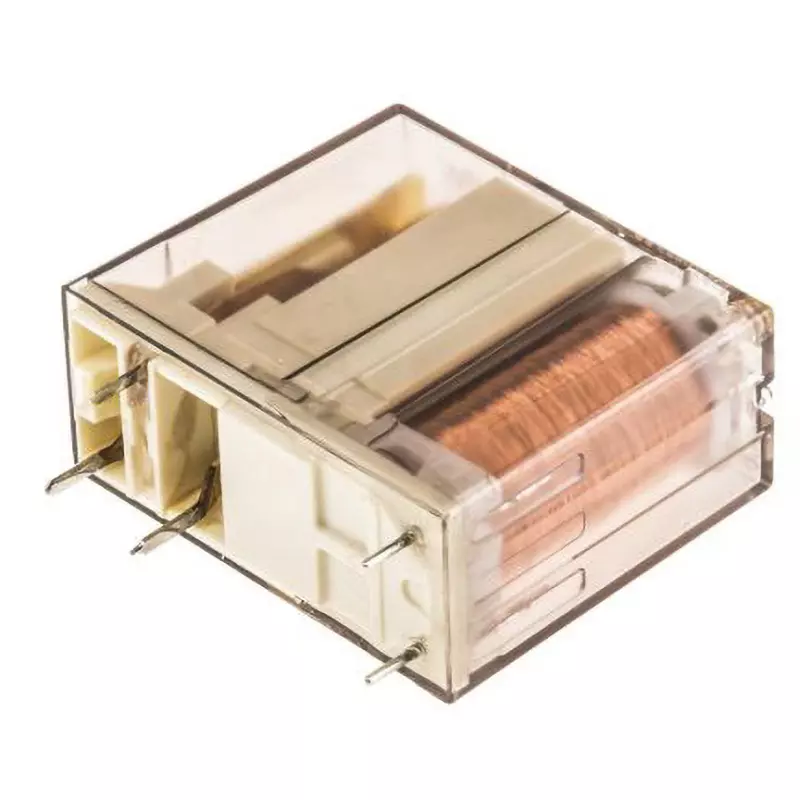

| Model No | RP412012 |
| Mass (g) | 18 |
Series |
RPII |
Type of Product |
Relay |
Model No |
RP412012 |
Mass (g) |
18 |
Terminal Shape |
PCB |
Contact Configuration |
SPDT |
Coil Resistance |
270 Ω |
No. of Pole |
1 |
Monotaro ID |
47291214 |
Material |
Silver nickel |
Contact Material |
Silver alloy |
Type of Sign |
PCB mounting |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Length (mm) |
29 |
Dimension (mm) |
29x12.6x25.5 |
Height (mm) |
25.5 |
Protection Class |
flux proof |
Name of Manufacturer/Packer/Importer |
Tyco Electronics Japan G.K. |
Specifications |
UL, CSA, VDE. TE Connectivity RPII Series PCB Power Relays. RPII Series PCB Power Relays with 500 mW coil power are available in SPST, SPDT and DPDT contact configurations. Part numbers RP3-XXXX, RP4-XXXX are flux resistant. Part numbers RP7-XXXX, RP8-XXXX are washdown resistant. Switching voltage: 250 Vac Creepage and clearance: 8 mm Applications: Power supplies, household appliances, heating controls, etc. |
Rated Coil Voltage |
DC 12 V |
Terminal Material |
AgNi0.15 |
Performance |
Flux-resistant automatic soldering |
Rated Voltage (V AC) |
Terminals: 250 |
