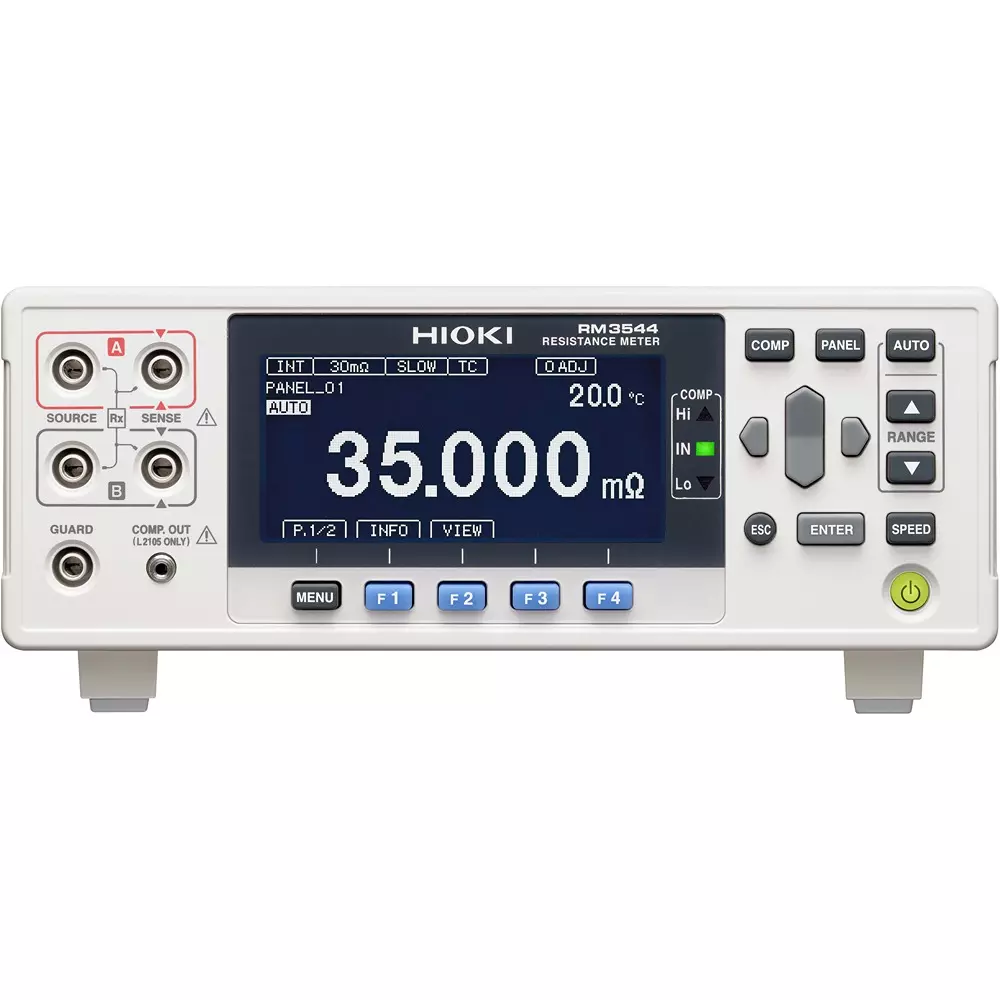

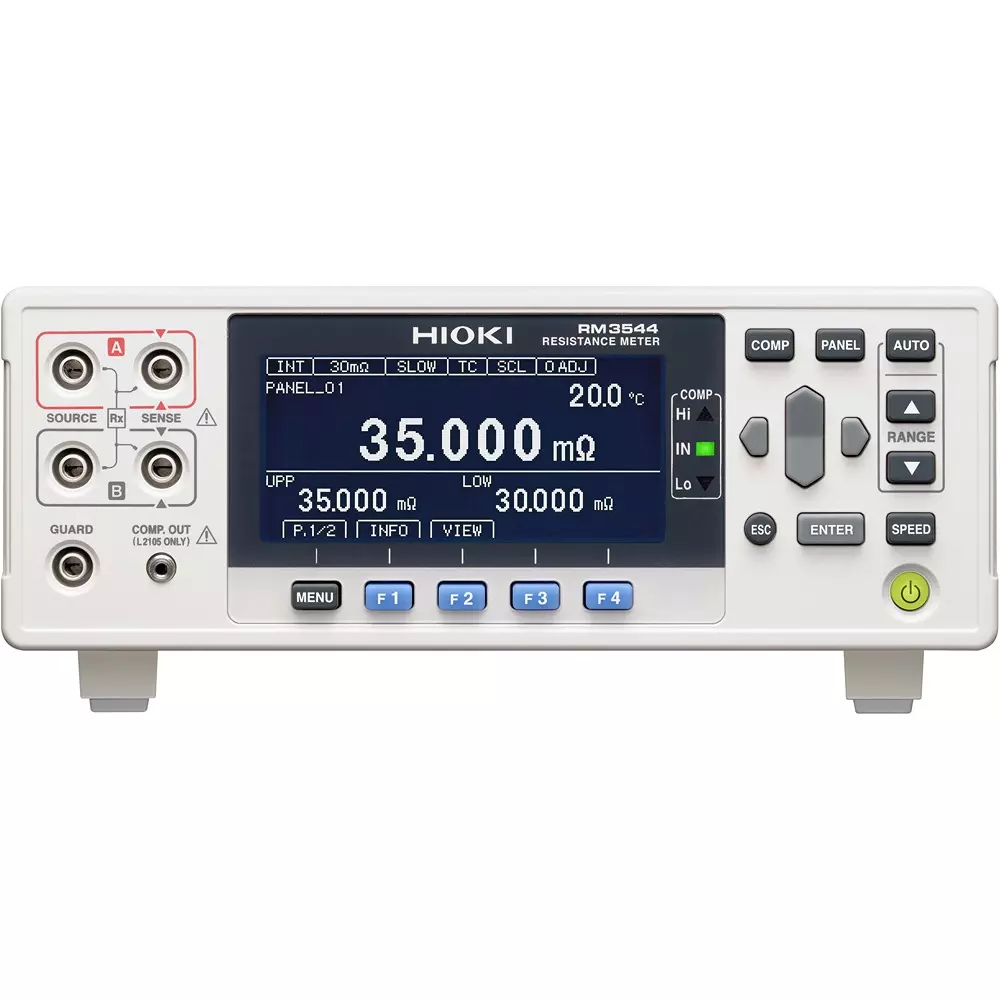

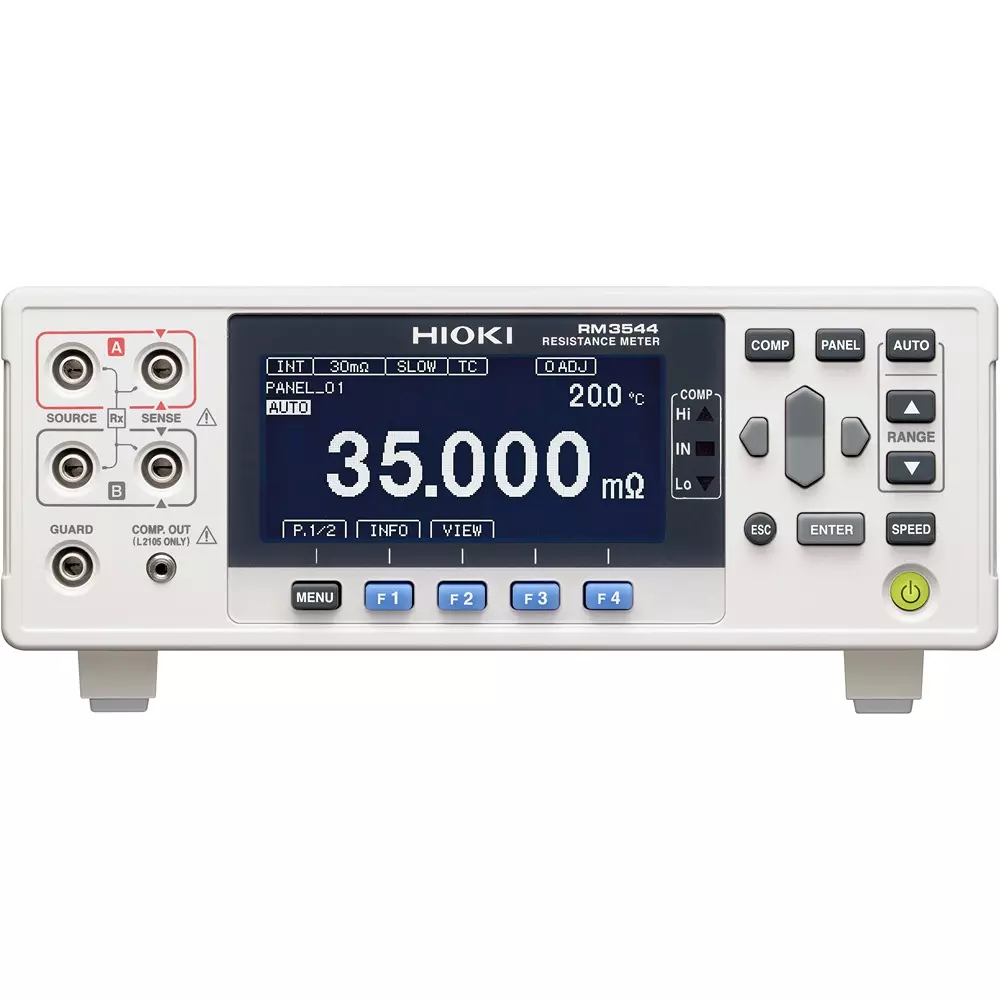

Hikoki Resistance Meter 100 to 240 VAC (50/60 Hz), rated power: 15 VA Power Supply 64-3414-30 Part No, RM3544-01

Name: Hikoki Resistance Meter 100 to 240 VAC (50/60 Hz), rated power: 15 VA Power Supply 64-3414-30 Part No, RM3544-01
Brand: HiKOKI
SKU: IND.GEN.446077073
Price: 188799 INR
Availability: InStock

Visit the HiKOKI Store

EMI starts at ₹16775/month. No Cost EMI available.

Available offers

Get Flat 10% off on your First Orders above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 3% off on First Order above ₹3,000

View

Features

Model No	RM3544-01
Type of Product	Resistance Meter
Mass (g)	1000
Function	Temperature compensation function, comparator (ABS/REF%), key lock (OFF/menu lock/all lock), display digit selection function (5 digits/4 digits), power supply frequency setting (AUTO/50Hz/60Hz), scaling, judgment sound setting, auto hold, averaging, panel save/load

More HiKOKI General Purpose Resistors products More General Purpose Resistors products

100% Original Products

Secure Payments

100% Buyer Protection

Top Brands

specifications

Model No	RM3544-01
Type of Product	Resistance Meter
Mass (g)	1000
Function	Temperature compensation function, comparator (ABS/REF%), key lock (OFF/menu lock/all lock), display digit selection function (5 digits/4 digits), power supply frequency setting (AUTO/50Hz/60Hz), scaling, judgment sound setting, auto hold, averaging, panel save/load
Monotaro ID	15394
Country of Origin	Japan
Import Country	Direct Import from Japan
Name of Manufacturer/Packer/Importer	HIOKI E.E. CORPORATION
Specifications	Measurement speed: FAST (50Hz: 21ms, 60Hz: 18ms), MED (101ms), SLOW (401ms)
Power Supply	100 to 240 VAC (50/60 Hz), rated power: 15 VA
Part No	64-3414-30
Included Components	Power cord x 1, Clip-type lead L2101 x 1, EXTI/O male connector x 1, Instruction manual x 1, USB cable (AB type) x 1, Spare fuse x 1
Effective maximum display value	30mΩ (maximum display 35mΩ, resolution 1μΩ) to 3MΩ range (maximum display 3.5MΩ, resolution 100Ω), 9 switching, basic accuracy: ±0.02%rdg.±0.007%fs
Measuring Current	[30mΩ range] DC300mA to [3MΩ range] DC500nA
Dimensions, Width W x Length L x Height H (mm)	215x166x80
Measuring Temperature (°C)	-10 to 99.9, Basic accuracy: ±0.5°C (Accuracy when combined with temperature sensor Z2002)
Open Terminal Voltage	DC5.5Vmax.

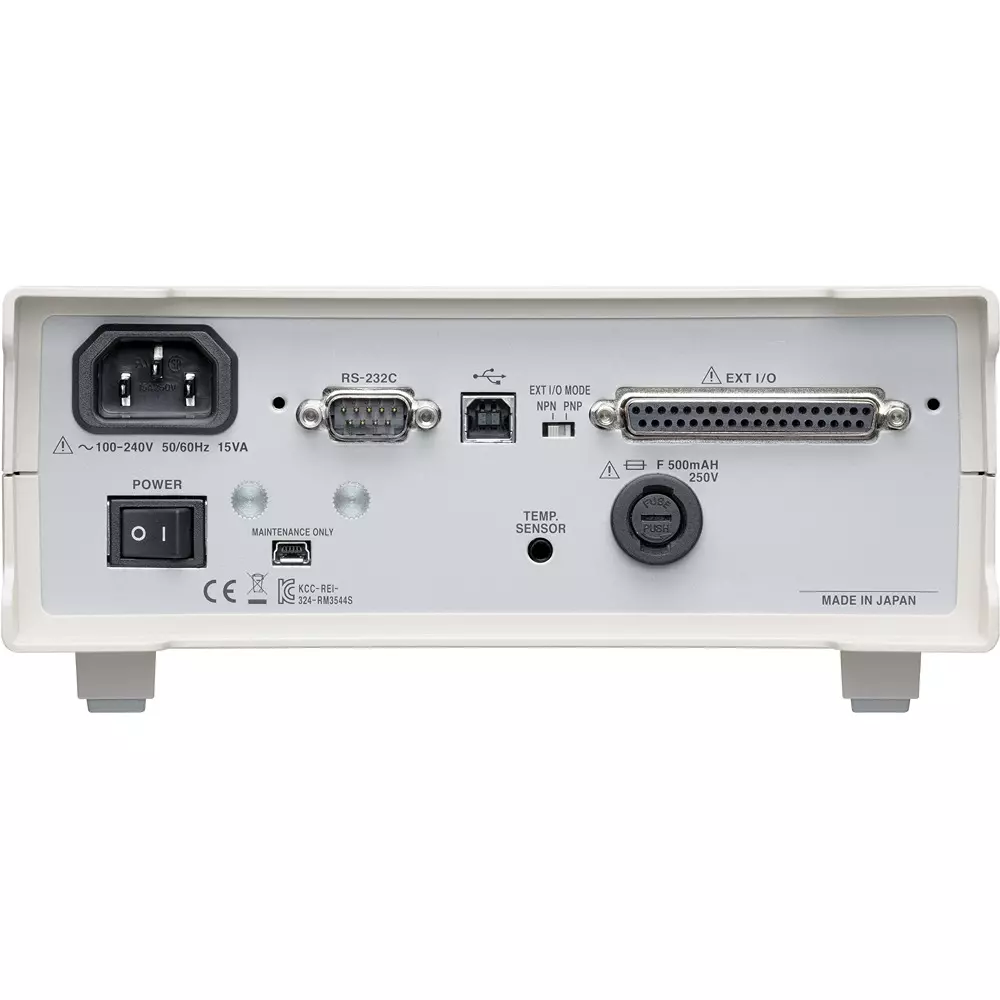

Interface	Communication: Select one from RS-232C/PRINTER(RS-232C)/USB, remote function/communication monitor function/data output function
Display Update Rate	No regulation
Memory Function	None
