Ships within 19 days

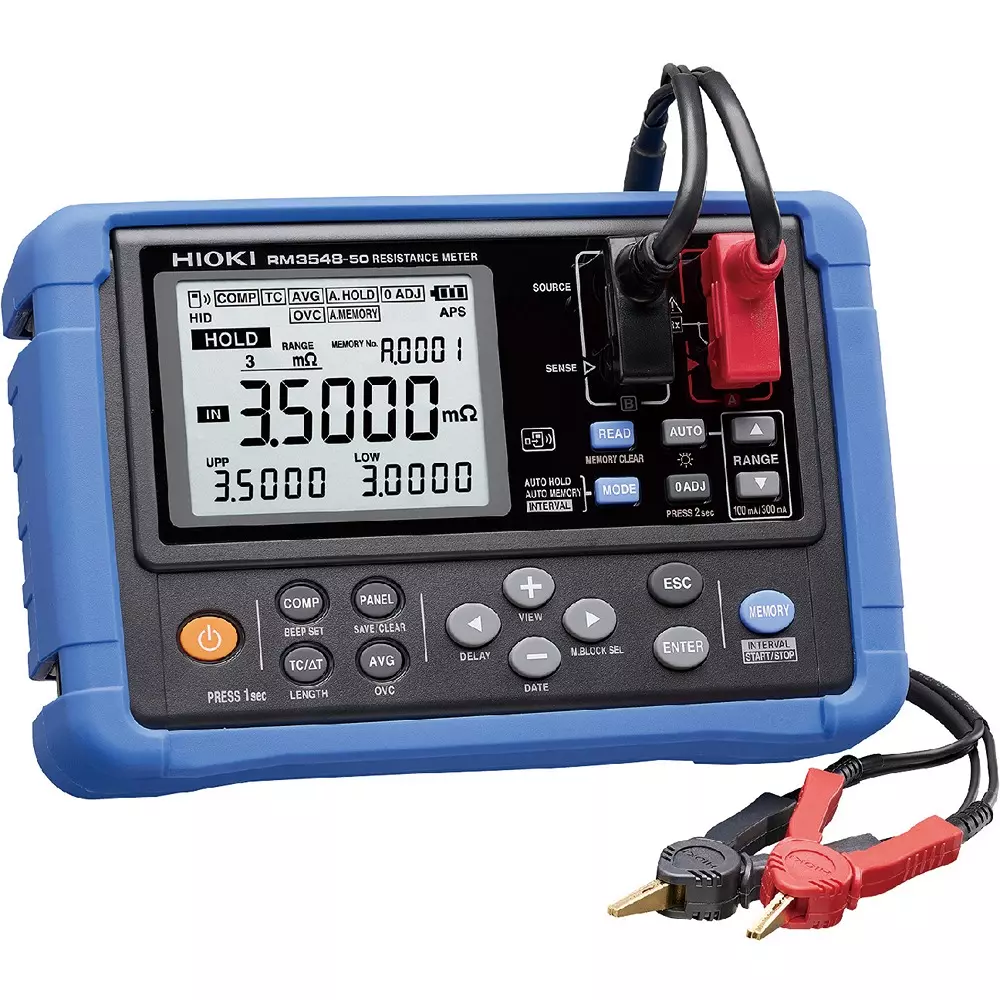

![Hikoki Resistance Meter [Features] - Measurement range switching (AUTO/MANUAL), - Measurement current, RM3548-50](http://static1.industrybuying.com/products/industrial-automation/ics-and-semiconductors/general-purpose-resistors/IND.GEN.546077101_1788865306490.webp "Hikoki Resistance Meter [Features] - Measurement range switching (AUTO/MANUAL), - Measurement current, RM3548-50")
View
View
View
View
| Model No | RM3548-50 |
| Type of Product | Resistance Meter |
| Function | [Features] - Measurement range switching (AUTO/MANUAL), - Measurement current switching: Switches the measurement current for the 300mΩ range (Hi 300 mA/Lo 100 mA), - Zero adjustment: Cancels internal offset voltage and excess resistance before measurement, - Average function: Displays the moving average of multiple measurements. • Suppresses fluctuations in measured values (OFF/2 times/5 times/10 times/20 times), • Delay setting: After changing the measurement current with OVC and auto-ranging, a wait is added to adjust the time for the measurement to stabilize, • Temperature compensation: Converts the resistance value of an arbitrary temperature coefficient to the resistance value of an arbitrary temperature and displays it, • Offset voltage (OVC: Offset Voltage Compensation): Removes the effect of offset voltage. When OVC=ON, the current is changed and measurements are taken twice, • Measurement abnormality detection: Over-range detection, current abnormality detection (detects abnormalities where the specified measurement current cannot be applied), circuit protection detection (detects overvoltage application), • Comparator: Red backlight illuminates when Hi or Lo is determined, • Length conversion: Converts the measured value to length and displays it, • Auto hold: Automatically holds the measured value, • Memory: Records measured values by either the MEMORY key, or at intervals after auto-hold (manual/auto), up to 1,000 values, interval (Up to 6,000 units), Panel Save/Load: Save and load measurement conditions by specifying the panel number, Clock function: Auto calendar, automatic leap year detection, Reset function: Restores to factory settings, Auto Power Save function (APS), Battery level indicator, Self-test function: Automatically lights up all LCDs, checks ROM/RAM and measurement circuit protection fuses when powered on, Backlight: Displays measurement values and transfers data to smartphones and tablets, Wireless communication (only when Z3210 is installed): Z3210 HID setting (only when Z3210 is installed), Z3210 HID setting (only when Z3210 is installed): Transfers measurement values to spreadsheet software, etc. |
| Monotaro ID | 13169278 |
Model No |
RM3548-50 |
Type of Product |
Resistance Meter |
Function |
[Features] - Measurement range switching (AUTO/MANUAL), - Measurement current switching: Switches the measurement current for the 300mΩ range (Hi 300 mA/Lo 100 mA), - Zero adjustment: Cancels internal offset voltage and excess resistance before measurement, - Average function: Displays the moving average of multiple measurements. • Suppresses fluctuations in measured values (OFF/2 times/5 times/10 times/20 times), • Delay setting: After changing the measurement current with OVC and auto-ranging, a wait is added to adjust the time for the measurement to stabilize, • Temperature compensation: Converts the resistance value of an arbitrary temperature coefficient to the resistance value of an arbitrary temperature and displays it, • Offset voltage (OVC: Offset Voltage Compensation): Removes the effect of offset voltage. When OVC=ON, the current is changed and measurements are taken twice, • Measurement abnormality detection: Over-range detection, current abnormality detection (detects abnormalities where the specified measurement current cannot be applied), circuit protection detection (detects overvoltage application), • Comparator: Red backlight illuminates when Hi or Lo is determined, • Length conversion: Converts the measured value to length and displays it, • Auto hold: Automatically holds the measured value, • Memory: Records measured values by either the MEMORY key, or at intervals after auto-hold (manual/auto), up to 1,000 values, interval (Up to 6,000 units), Panel Save/Load: Save and load measurement conditions by specifying the panel number, Clock function: Auto calendar, automatic leap year detection, Reset function: Restores to factory settings, Auto Power Save function (APS), Battery level indicator, Self-test function: Automatically lights up all LCDs, checks ROM/RAM and measurement circuit protection fuses when powered on, Backlight: Displays measurement values and transfers data to smartphones and tablets, Wireless communication (only when Z3210 is installed): Z3210 HID setting (only when Z3210 is installed), Z3210 HID setting (only when Z3210 is installed): Transfers measurement values to spreadsheet software, etc. |
Monotaro ID |
13169278 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
HIOKI E.E. CORPORATION |
Specifications |

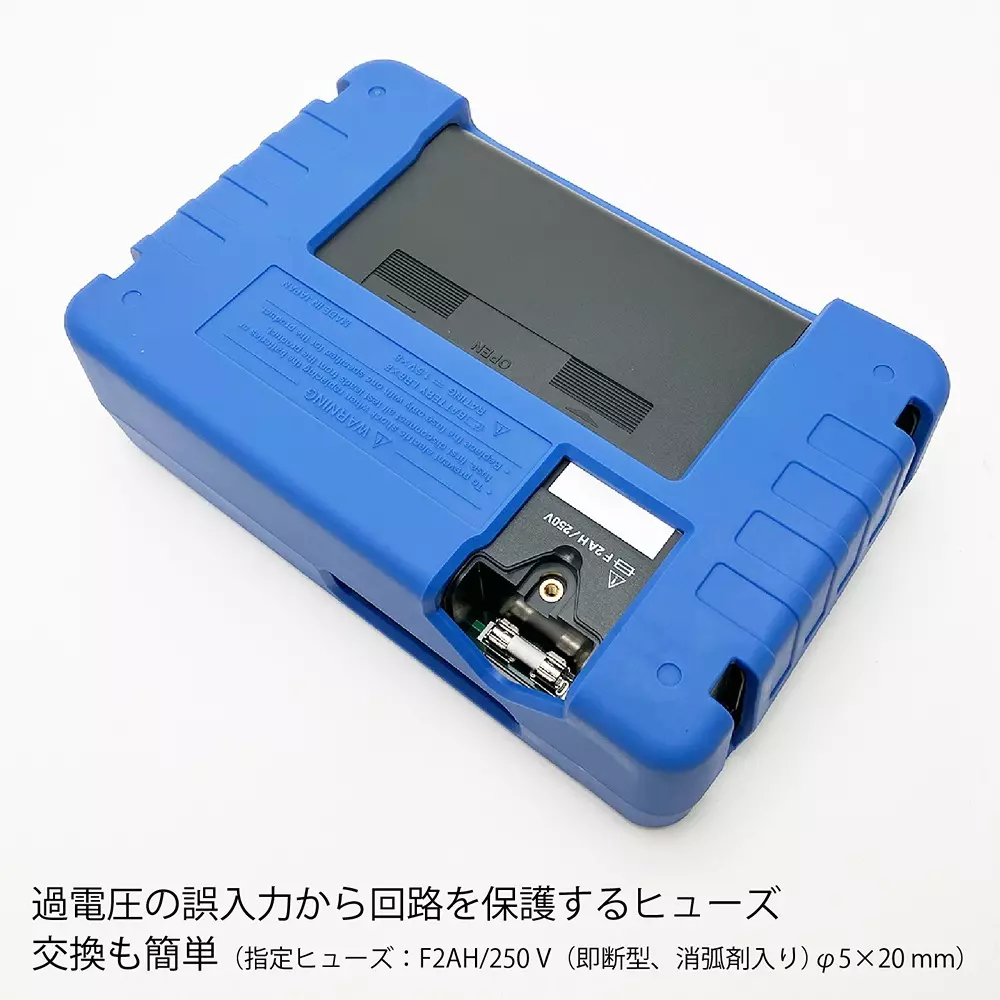

[Operating Temperature and Humidity Range] 0°C to 40°C, 80% RH or less (non-condensing), [Applicable Standards] Safety EN61010, EMC EN61326, [Power Supply] 8 x AA alkaline batteries (LR6) or 8 x nickel-metal hydride batteries (HR6), [Continuous Use Time] Approximately 10 hours, using 8 new AA alkaline batteries (LR6) or fully charged nickel-metal hydride batteries (HR6), measured for 1 second every 10 seconds in the 3 mΩ range, backlight OFF, 23°C reference value, [External Dimensions] Approximately 199W x 132H x 60.6D mm (including protector), [Weight] Approximately 890 g (including protector), [Fuse] F2AH/250 V (built into the unit) |
RoHS Directive |
Correspondence |
Included Components |

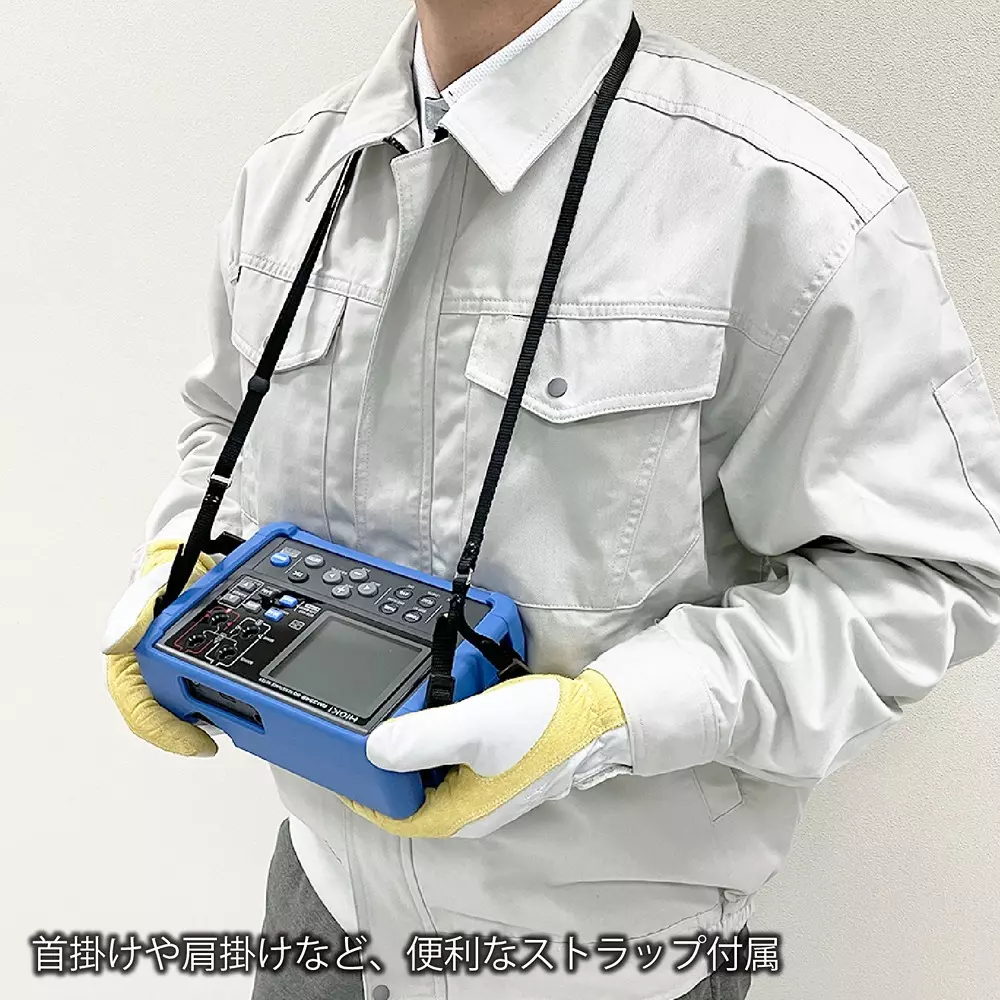

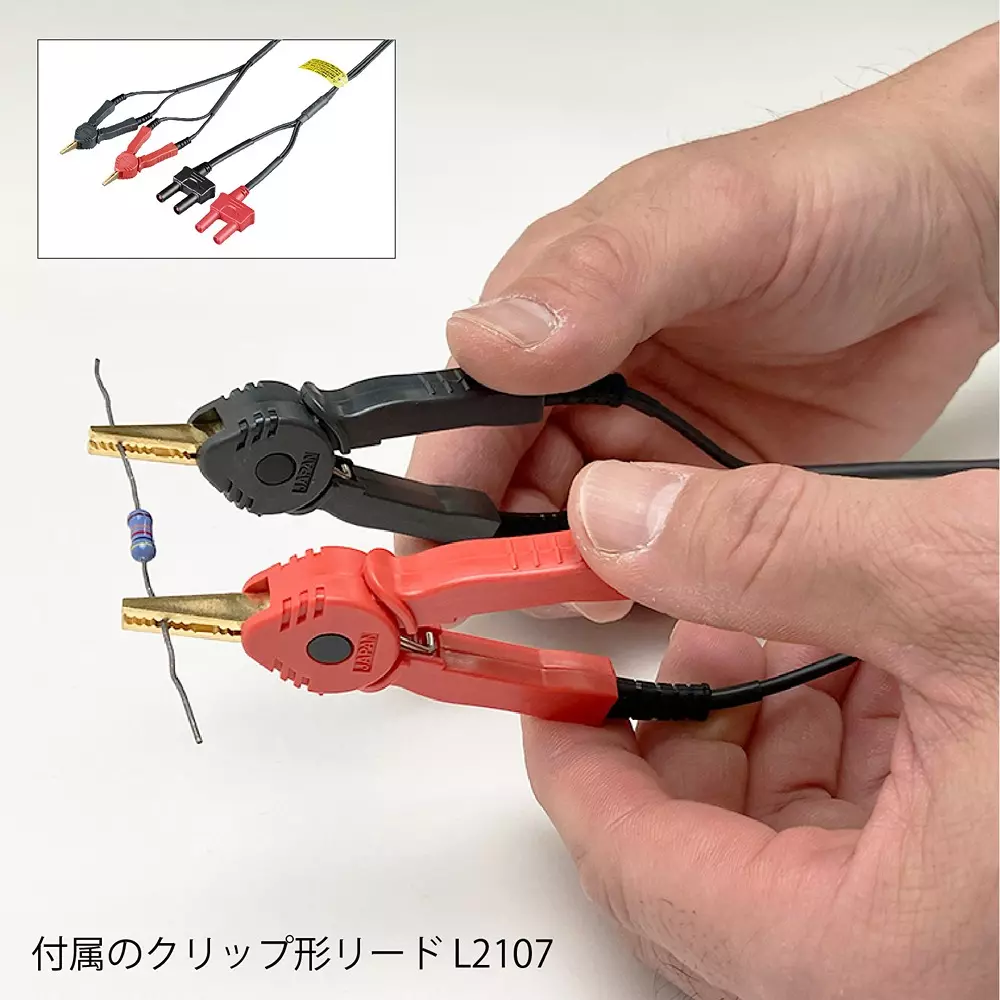

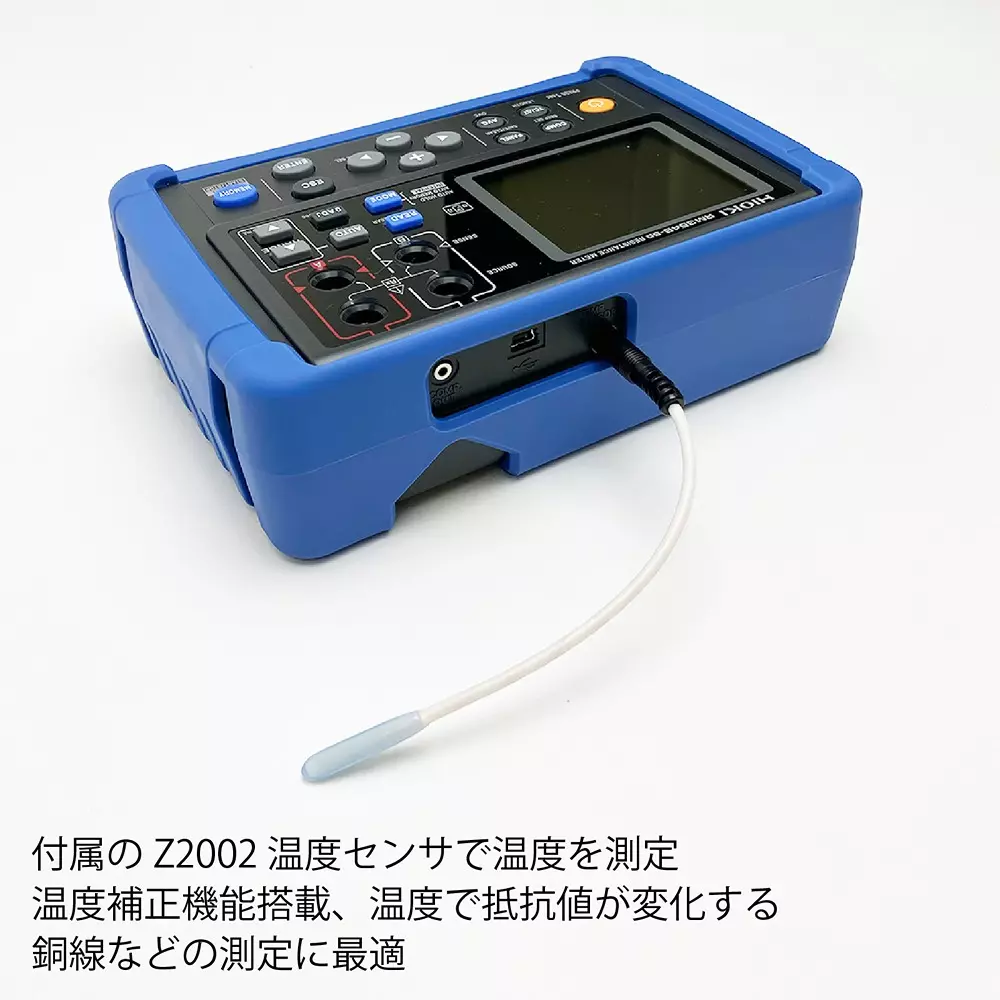

L2107 Clip-type lead, Z2002 Temperature sensor, 8 x AA alkaline batteries (LR6), Instruction manual, USB cable (A-miniB type), Strap, Spare fuse (F2AH/250V) |
Measuring Unit |
[Measurement Items] Resistance, Temperature (Thermistor Sensor), Resistance, (Measurement Signal) Constant Current, (Measurement Method) DC 4-Terminal Method, (Measurement Range) 0.0000 mΩ to 3.5000 MΩ, 10 Ranges, (Representative Accuracy) ±0.020%rdg. ±0.007%fs, calculated as fs = 30,000 dgt. 0.010% fs = 3 dgt., Temperature, (Accuracy Guaranteed Range) -10.0℃ to 99.9℃ |
