| Model No | KEW6041BT |
| Type of Product | Resistance Meter |
| Mass (g) | 230 (including batteries) |
| Monotaro ID | 12339698 |
Model No |
KEW6041BT |
Type of Product |
Resistance Meter |
Mass (g) |
230 (including batteries) |
Monotaro ID |
12339698 |
Applicable Standard |
JIS 1302:2018, IEC 61010-1 CAT III 300V pollution degree 2, IEC 61010-031, IEC 60529 (IP40) |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Kyoritsu Electrical Instruments Co., Ltd. |
Range |
2/20/200MΩ (auto range) |
Specifications |
Central display value (insulation resistance meter) / 1MΩ (50V), 2MΩ (125V), 2MΩ (250V), 5MΩ (500V) |
RoHS Directive |
Correspondence |

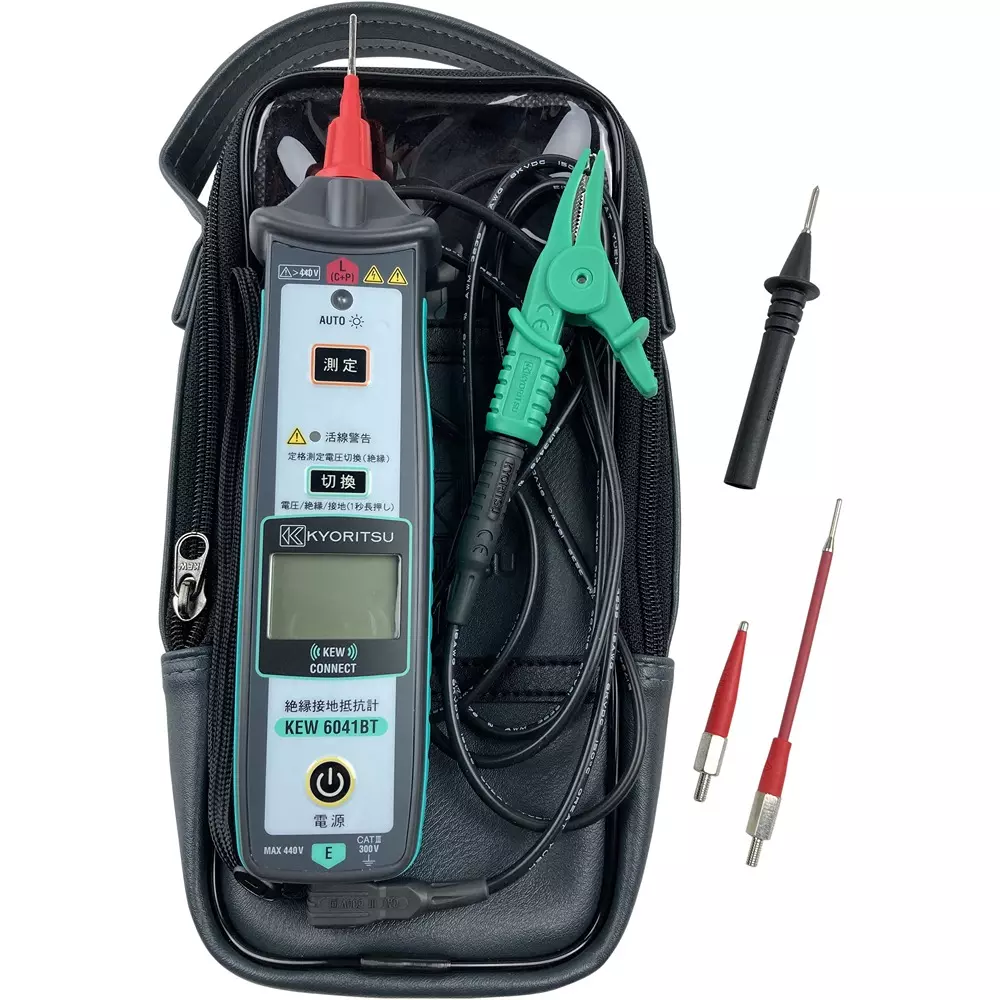

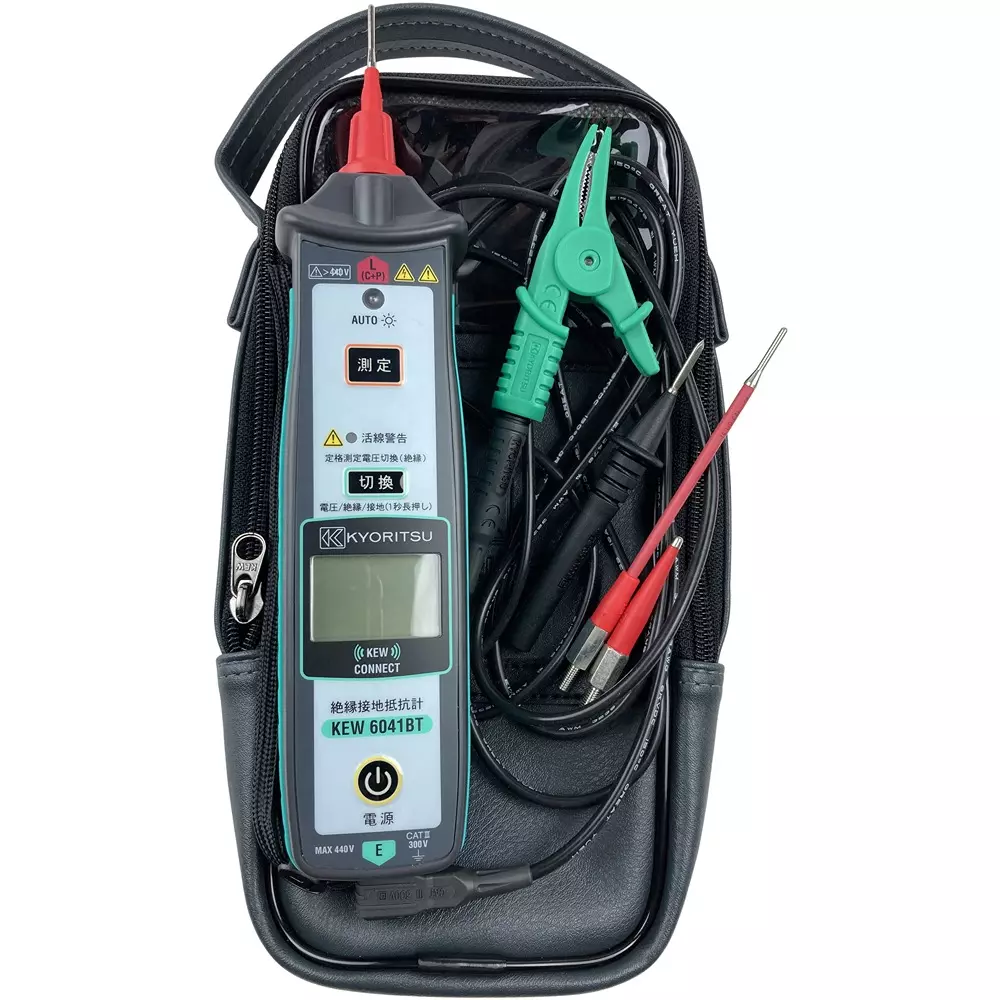

Included Components |
7248 (Alligator Clip Cord Set), 8072A (Standard Tip), 8017B (Long Tip), 8253 (Molded Tip), 9161 (Carrying Case), 2 LR6 AA Batteries, Instruction Manual |
Accuracy |
Insulation resistance meter: (1st effective) ±2%rdg±2dgt, (2nd effective) ±2%rdg±4dgt, ±5%rdg, Others: ±2%rdg±6dgt, Earth resistance meter: ±3%rdg±5dgt, Voltmeter: AC±1%rdg±4dgt /DC ±1%rdg±8dgt |
Measurement Range |
Insulation Resistance Meter: First effective measurement range: (50V) 0.1 to 10MΩ, (125V) 0.1 to 25MΩ, (250V) 0.1 to 50MΩ, (500V) 0.1 to 100MΩ; Second effective measurement range: 0.05 to 0.099MΩ, (50V) 10.01 to 200MΩ, (125V) 25.1 to 200MΩ, (250V) 50.1 to 200MΩ, (500V) 100.1 to 200MΩ; Other: 0 to 0.049MΩ; Earth Resistance Meter: 200/2000Ω (auto-ranging); Voltmeter: AC 2.0 to 440.0V / DC ±2.0 to ±440.0V (automatically detects AC/DC at 2V or above) |

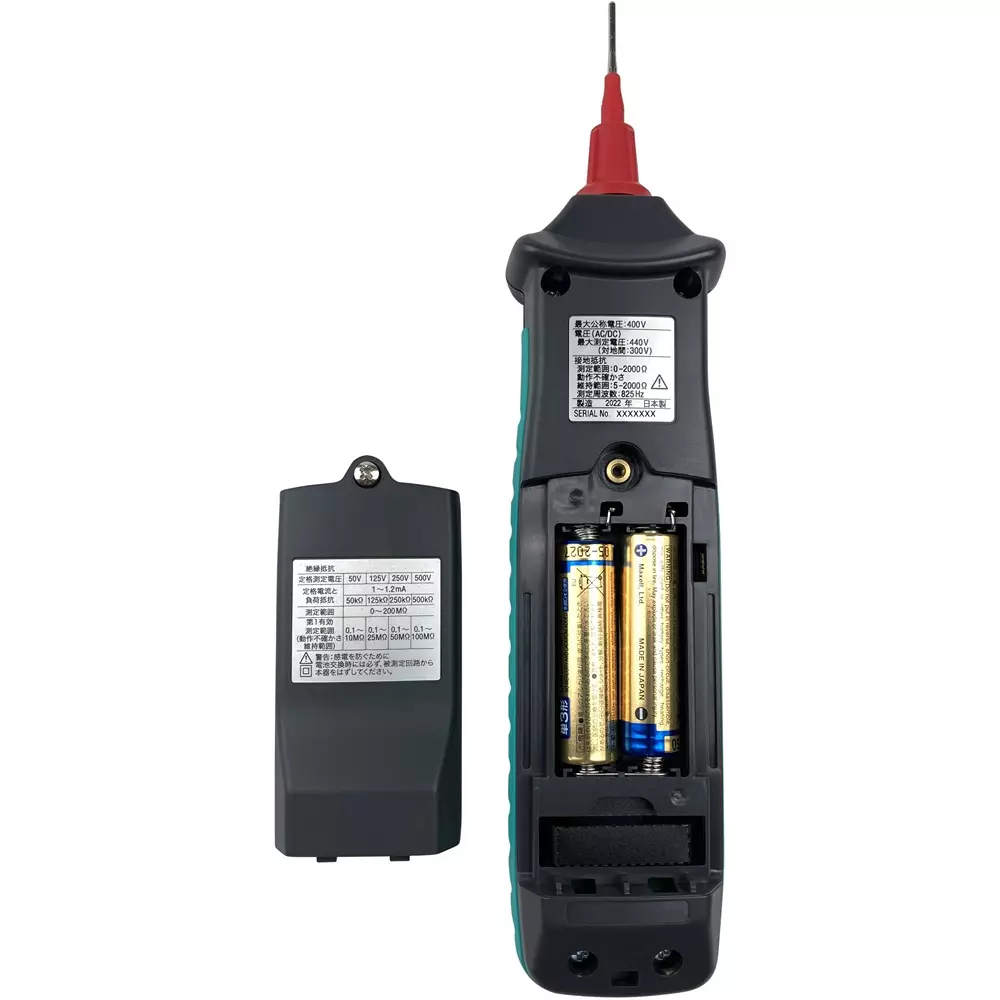

Suitable Battery |
2 x AA batteries LR6 (1.5V) |
Circuit Voltage |
Insulation resistance tester/(open circuit) 100 to 120% of rated measurement voltage |
Dimensions, Length L x Width W x Depth D (mm) |
232 x 51 x 42 (when tip metal fittings / standard are installed) |
Measurement Voltage (V) |
(Rating)50/125/250/500 |
Short Circuit Current |
(insulation resistance meter) within 1.5 mA |
Interface |
Bluetooth(R)Ver.5.0 |
Operating Temperature / Humidity Range |
-10 to 50°C, 85% or less (no condensation) |
Storage Temperature/Humidity Range |
-20 to 60°C, 75% or less (no condensation) |
Output Current (mA) |
200Ω range: approx. 1.6, 2000Ω range: approx. 0.7 Frequency: 825Hz |
Rated Current (mA) |
(insulation resistance tester) 1 to 1.2 |
