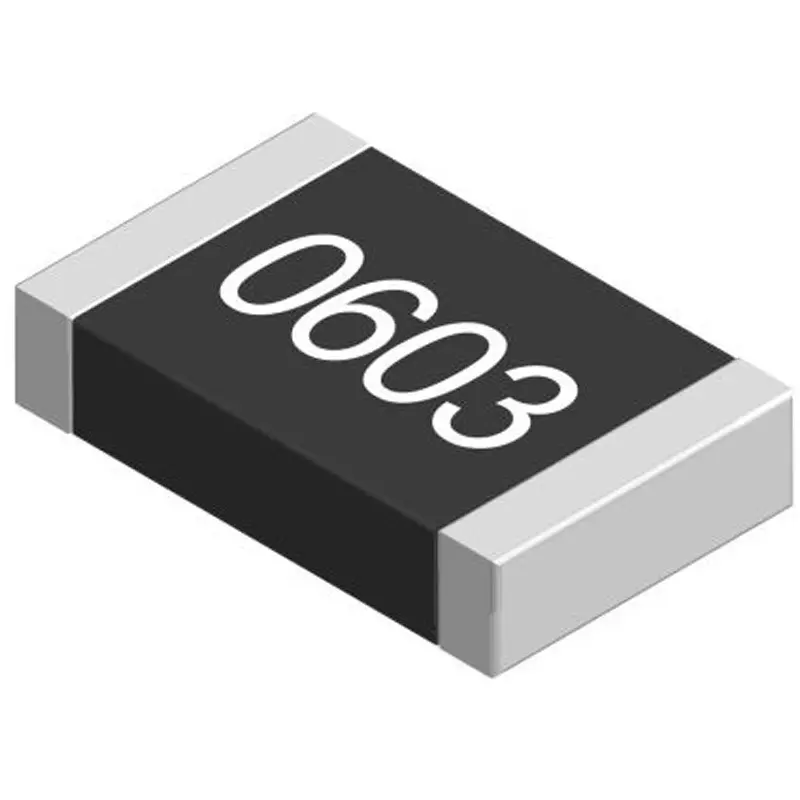

| Model No | ERJ3RBD7501V |
| Type of Product | SMD Resistor |
| Series | ERJ |
| Tolerance | ±0.5% |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Model No |
ERJ3RBD7501V |
Type of Product |
SMD Resistor |
Series |
ERJ |
Tolerance |
±0.5% |
Temperature coefficient |
±50 ppm/℃ |
Monotaro ID |
65250668 |
Technology |
Thick Film |
Package / Case |
0603 (1608M) |
Maximum Operating Temperature |
125℃ |
Country of Origin |
Japan |
Minimum Operating Temperature |
-55℃ |
Standard |
Car: AEC-Q200 |
Import Country |
Direct Import from Japan |
Pack of |
100 Pcs |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Resistance (kΩ) |
7.5 |
Specifications |
IEC60115-8, JIS C5201-8, EIAJ RC-2134B. 0603 Type Resistor, ERJ3R Series - 0.5%. Panasonic ERJ 3R 0603 metal film resistors are a lightweight and compact solution. These chip resistors feature a triple-layer electrode and a metal glaze thick film resistive element for exceptional reliability. Suitable for flow and reflow soldering. Resistance tolerance: ±1%. Placement machine compatible. AEC-Q200 qualified. Applications. This metal thin film resistor is AEC-Q200 qualified and suitable for automotive applications. Other suitable applications include computers, various instruments, video cameras, watches, calculators, TV tuners, and communications equipment. |
RoHS Directive |
Correspondence |
Rated power (W) |
0.1 |
