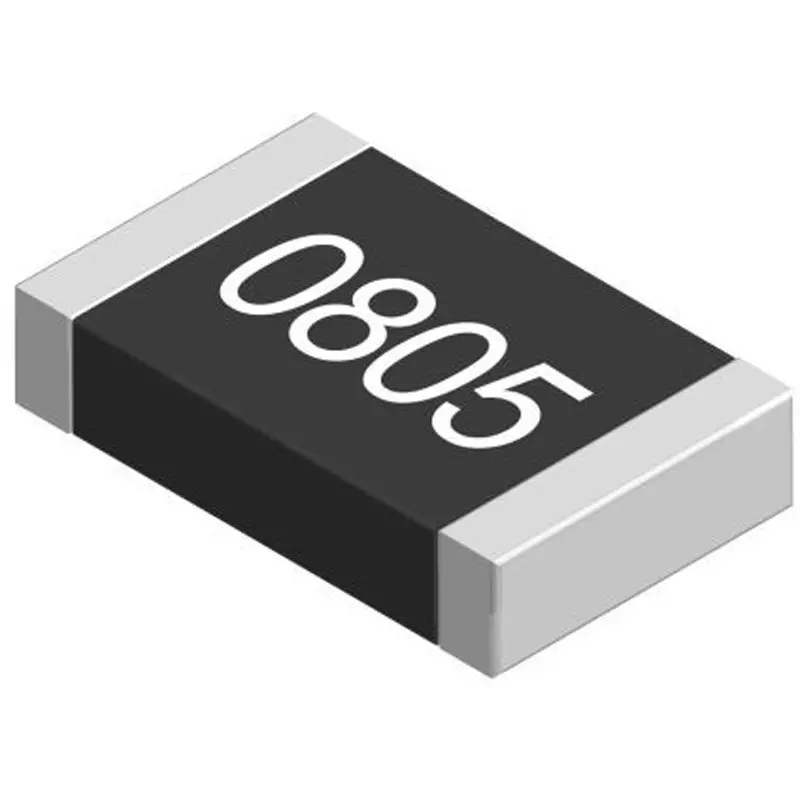

| Model No | ERJ6RBD6802V |
| Type of Product | SMD Resistor |
| Series | ERJ |
| Tolerance | ±0.5% |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Model No |
ERJ6RBD6802V |
Type of Product |
SMD Resistor |
Series |
ERJ |
Tolerance |
±0.5% |
Temperature coefficient |
±50 ppm/℃ |
Monotaro ID |
65243047 |
Technology |
Thick Film |
Package / Case |
0805 (2012M) |
Maximum Operating Temperature |
125℃ |
Country of Origin |
Japan |
Minimum Operating Temperature |
-55℃ |
Standard |
Car: AEC-Q200 |
Import Country |
Direct Import from Japan |
Pack of |
100 Pcs |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Resistance (kΩ) |
68 |
Specifications |
IEC60115-8, JIS C5201-8, EIAK RC-2134B. 0805 Resistor, ERJ6R Series - 0.5%. Panasonic's ERJ 6R chip resistors are compact and lightweight. These highly reliable thick film chip resistors feature a triple-layer electrode and a metal glaze thick film resistive element. Low resistance tolerance. Compatible with both flow and wave soldering. Suitable for use with placement machines. AEC-Q200 qualified. Applications. These chip resistors are AEC-Q200 qualified and suitable for automotive applications. |
RoHS Directive |
Correspondence |
Rated power (W) |
0.1 |
