| Model No | ERJ3EKF2872V |

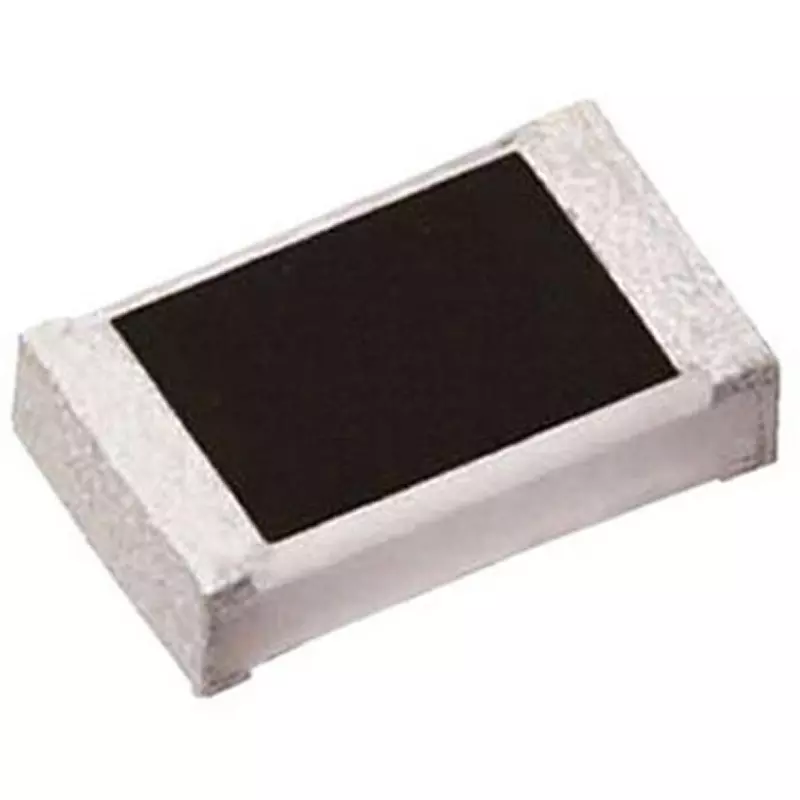

| Type of Product | SMD Resistor |
| Series | ERJ |
| Tolerance | ±1% |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Model No |
ERJ3EKF2872V |
Type of Product |
SMD Resistor |
Series |
ERJ |
Tolerance |
±1% |
Temperature coefficient |
±100 ppm/℃ |
Monotaro ID |
65214067 |
Technology |
Thick Film |
Package / Case |
0603 (1608M) |
Maximum Operating Temperature |
155℃ |
Country of Origin |
Japan |
Minimum Operating Temperature |
-55℃ |
Standard |
Car: AEC-Q200 |
Import Country |
Direct Import from Japan |
Pack of |
5000 Pcs |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Resistance (kΩ) |
28.7 |
Specifications |
IEC60115-8, JIS C5201-8, EIAJ RC-2134B. 0603 Resistor, ERJ3EK Series - 1% (5.1 kΩ to 34.8 kΩ). Panasonic's ERJ 3 thick film precision chip resistors offer a compact and lightweight solution. These chip resistors feature a triple-layer electrode and a metal glaze thick film resistive element for exceptional reliability. The ERJ 3E series, with a resistance tolerance as low as ±1%, is compatible with automatic placement machines. These precision resistors are AEC-Q200 qualified and ideal for automotive applications. |
RoHS Directive |
Correspondence |
Rated power (W) |
0.1 |
