| Model No | ERA3AEB2940V |

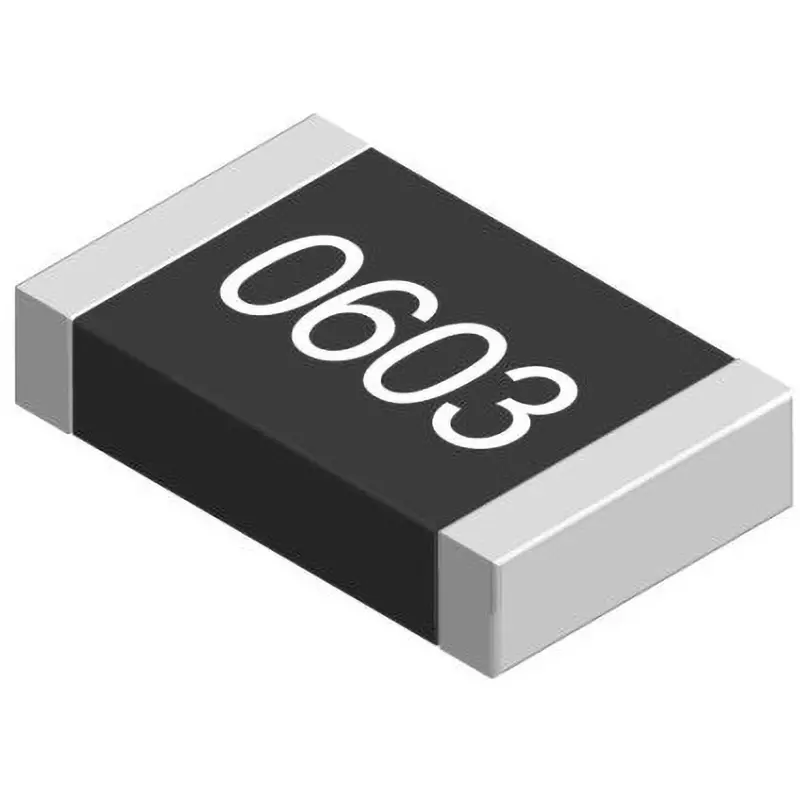

| Type of Product | Film Resistor |
| Series | ERA |
| Tolerance | ±0.1% |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Model No |
ERA3AEB2940V |
Type of Product |
Film Resistor |
Series |
ERA |
Tolerance |
±0.1% |
Temperature coefficient |
±25℃ |
Monotaro ID |
48228889 |
Resistance (Ω) |
294 |
Technology |
Metal Coating |
Package / Case |
603 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Pack of |
5 Pcs |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Minimum Temperature Coefficient |
-25 ppm/℃ |
Specifications |
IEC60115-8, JISC5201-8, EIAJRC-2133B. Panasonic ERA series size 06030.1W 0.1% 25ppm metal film chip resistor, 47-976Ω. Panasonic's ERA3A metal film resistor is stable and has high accuracy even in high temperature and high humidity environments. Keep This series of 0603 chip resistors provides a high performance solution and features excellent nonlinearity. .AEC-Q200 Qualified Low Resistance Temperature Coefficient Small Resistance Tolerance Excellent Linearity and Low Current Noise Rated Power Option 0.05 to 0.25W.Application.This metal thin film resistor is AEC-Q200 qualified and suitable for automotive application. You. |
Rated power (W) |
0.1 |
Height (mm) |
0.45 |
Operating Temperature (c) |
-55-155 |
Length (mm) |
1.6 |
