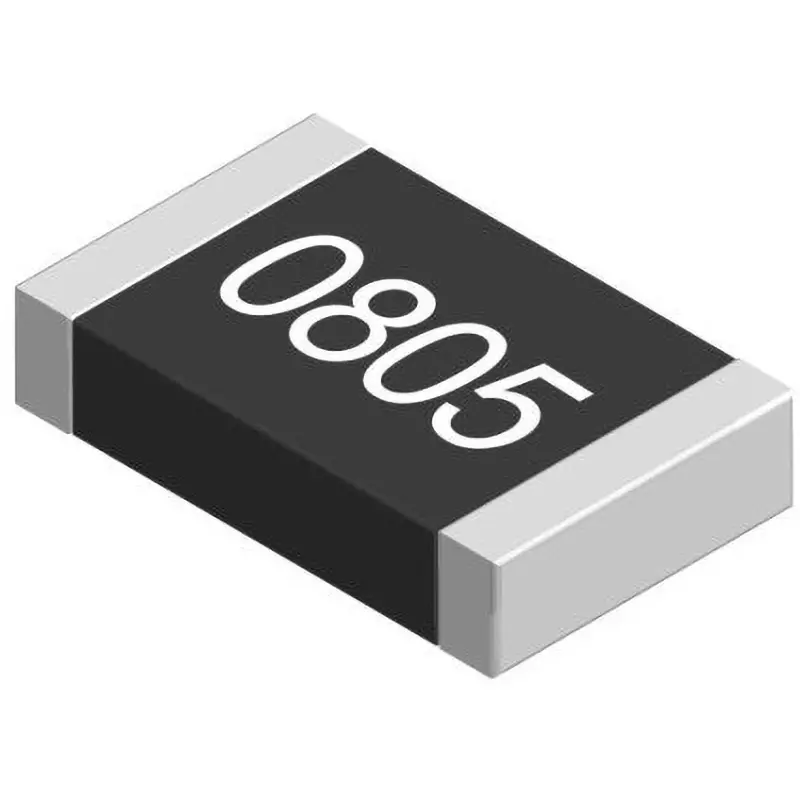

| Model No | ERA6AEB1690V |
| Type of Product | Film Resistor |
| Series | ERA |
| Tolerance | ±0.1% |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Model No |
ERA6AEB1690V |
Type of Product |
Film Resistor |
Series |
ERA |
Tolerance |
±0.1% |
Temperature coefficient |
±25℃ |
Monotaro ID |
47930594 |
Resistance (Ω) |
169 |
Technology |
Metal Coating |
Package / Case |
805 |
Country of Origin |
Japan |
Standard |
AEC-Q200 |
Import Country |
Direct Import from Japan |
Pack of |
5 Pcs |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Specifications |
IEC60115-8, JISC5201-8, EIAJRC-2133B. Panasonic ERA series size 08050.125W 0.1% 25ppm metal film chip resistor, 47-976Ω. Panasonic ERA6A metal film resistor is stable and high accuracy even in high temperature and high humidity environment Keep This 0805 chip resistor series offers high performance. .AEC-Q200 Qualified Low Resistance Temperature Coefficient Small Resistance Tolerance Excellent Linearity and Low Current Noise Rated Power 0.125W.Application.This metal film resistor is AEC-Q200 qualified and suitable for automotive applications. |
Rated power (W) |
0.125 |
Case Type |
mold |
Height (mm) |
0.5 |
Operating Temperature (c) |
-55-155 |
Length (mm) |
2 |
