| Model No | ERJP08F36R0V |
| Type of Product | SMD Resistor |
| Series | ERJP08 |
| Tolerance | ±1% |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Model No |
ERJP08F36R0V |
Type of Product |
SMD Resistor |
Series |
ERJP08 |
Tolerance |
±1% |
Temperature coefficient |
±100 ppm/℃ |
Monotaro ID |
65238524 |
Resistance (Ω) |
36 |
Technology |
Thick Film |
Package / Case |
1206 (3216M) |
Maximum Operating Temperature |
155℃ |
Country of Origin |
Japan |
Minimum Operating Temperature |
-55℃ |
Standard |
Car: AEC-Q200 |
Import Country |
Direct Import from Japan |
Pack of |
5 Pcs |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Specifications |

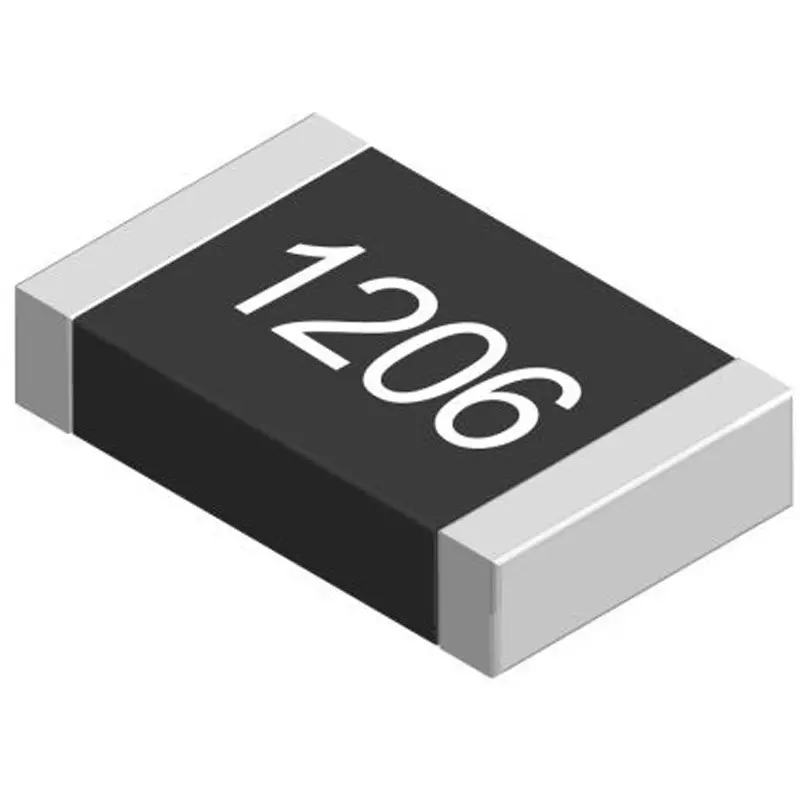

1206-type surge-resistant resistor, ERJP08 series - 1% (10 Ω to 3 kΩ). Panasonic ERJ P08 surge-resistant thick film chip resistors consist of a metal glaze thick film resistive element with three layers of electrodes and a protective coating. This construction provides high reliability and allows for reflow and flow soldering. AEC-Q200 qualified, 0.66 W high power rating, surge-resistant, and superior surge characteristics compared to standard film resistors. Applications. These chip resistors are AEC-Q200 qualified and can be used in automotive applications. |
RoHS Directive |
Correspondence |
Rated power (W) |
0.66 |
