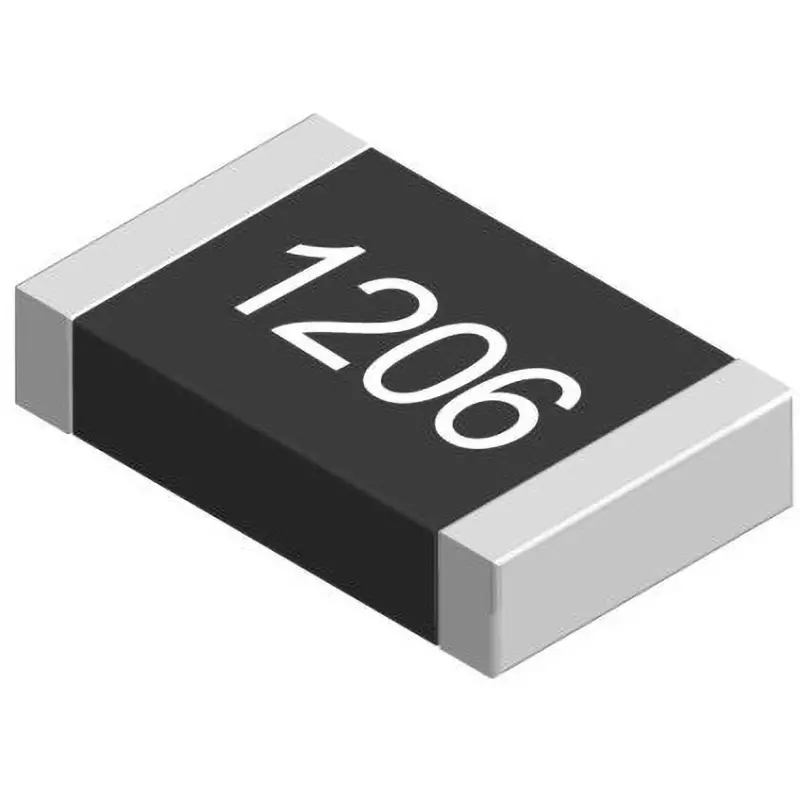

| Model No | ERJP08F8203V |
| Type of Product | Film Resistor |
| Series | ERJP08 |
| Tolerance | ±1% |
Model No |
ERJP08F8203V |
Type of Product |
Film Resistor |
Series |
ERJP08 |
Tolerance |
±1% |
Temperature coefficient |
±100℃ |
Monotaro ID |
48168655 |
Technology |
Thick Film |
Package / Case |
1206 |
Country of Origin |
Japan |
Termination Style |
tab |
Import Country |
Direct Import from Japan |
Pack of |
5 Pcs |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Minimum Temperature Coefficient |
-100 ppm/℃ |
Resistance (kΩ) |
820 |
Specifications |
IEC60115-8, JISC5201-8, EIAKRC-2134.1206 type anti-surge resistor, ERJP08 series -1% (3.3kΩ to 1MΩ). Panasonic ERJP08 anti-surge thick film chip resistor has metal glaze thick film resistor on 3 layers of electrodes It consists of a device and has a protective coating. This structure realizes high reliability and enables reflow and flow soldering. .Surge characteristics superior to AEC-Q200 qualified 0.66W high rated power surge resistant standard membrane resistor.Applications.These chip resistors are AEC-Q200 qualified and can be used for automotive applications. |
Rated power (W) |
0.66 |
Height (mm) |
0.6 |
Operating Temperature (c) |
-55-155 |
Length (mm) |
3.2 |
