Ships within 25 days
View
View
View
View

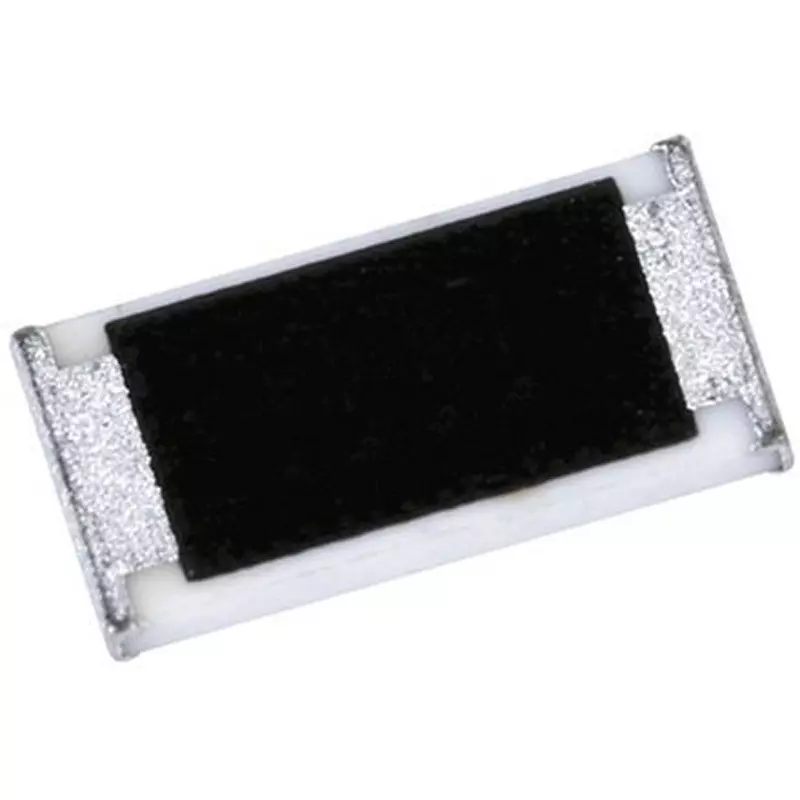

| Model No | ERJ6ENF1822V |
| Type of Product | SMD Resistor |
| Series | ERJ |
| Tolerance | ±1% |
Model No |
ERJ6ENF1822V |
Type of Product |
SMD Resistor |
Series |
ERJ |
Tolerance |
±1% |
Temperature coefficient |
±100 ppm/℃ |
Monotaro ID |
65216858 |
Technology |
Thick Film |
Package / Case |
0805 (2012M) |
Maximum Operating Temperature |
155℃ |
Country of Origin |
Japan |
Minimum Operating Temperature |
-55℃ |
Import Country |
Direct Import from Japan |
Pack of |
5000 Pcs |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Resistance (kΩ) |
18.2 |
Specifications |
IEC60115-8, JIS C5201-8, EIAJ RC-2134B. 0805 Resistor, ERJ6EN Series - 1% (7 to 49.9 kΩ). Panasonic ERJ 6EN 0805 metal film resistors offer a lightweight and compact solution. These chip resistors feature a triple-layer electrode and a metal glaze thick film resistive element for exceptional reliability. Suitable for flow and reflow soldering. Resistance tolerance: ±1%. Placement machine compatible. AEC-Q200 qualified. Applications. This metal thin film resistor is AEC-Q200 qualified and suitable for automotive applications. Other suitable applications include computers, various instruments, video cameras, watches, calculators, TV tuners, and communications equipment. |
RoHS Directive |
Correspondence |
Rated power (W) |
0.125 |
