| Model No | ERJT14J431U |
| Type of Product | Film Resistor |
| Series | ERJT14 |
| Tolerance | ±5% |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Model No |
ERJT14J431U |
Type of Product |
Film Resistor |
Series |
ERJT14 |
Tolerance |
±5% |
Temperature coefficient |
±200℃ |
Monotaro ID |
48175068 |
Resistance (Ω) |
430 |
Technology |
Thick Film |
Package / Case |
1210 |
Country of Origin |
Japan |
Standard |
AEC-Q200 |
Termination Style |
tab |
Import Country |
Direct Import from Japan |
Pack of |
5 Pcs |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Minimum Temperature Coefficient |
-200 ppm/℃ |
Specifications |

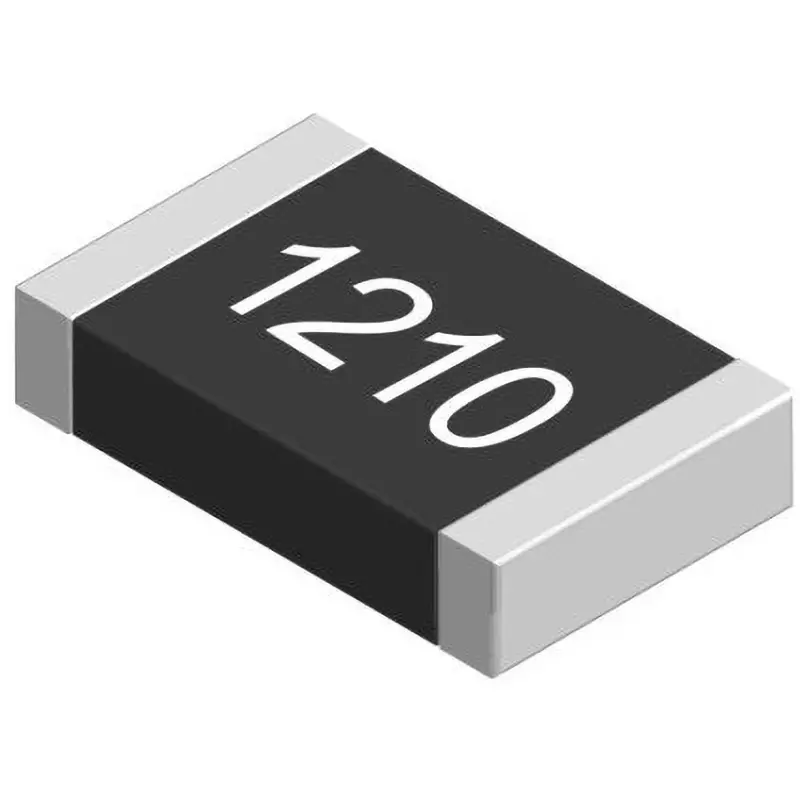

1210 Type Pulse Resistant Resistor, ERJT14 Series-5%. Panasonic ERJT14 Pulse Resistant Thick Film Resistor is composed of 3-layer electrode and metal glaze thick film resistive element. These chip resistors have optimized trimming specifications and exhibit high pulse characteristics. Features and advantages High rated power of 0.5W pulse resistance High reliability High reliability Can be used for both flow soldering and flow soldering Applications These chip resistors are AEC-Q200 qualified and used for automotive applications I can do it. |
Rated power (W) |
0.5 |
Height (mm) |
0.6 |
Operating Temperature (c) |
-55-155 |
Length (mm) |
3.2 |
