| Model No | RTO020F680R0JTE3 |
| Type of Product | Power Resistor |
| Series | RTO 20 |
| Tolerance | ±5% |
Model No |
RTO020F680R0JTE3 |
Type of Product |
Power Resistor |
Series |
RTO 20 |
Tolerance |
±5% |
Monotaro ID |
48904179 |
Resistance (Ω) |
680 |
Technology |
Thick film |
Package / Case |
TO-220 |
Country of Origin |
Japan |
Termination Style |
Radial |
Import Country |
Direct Import from Japan |
Pack of |
50 Pcs |
Name of Manufacturer/Packer/Importer |
Vishay |
Specifications |

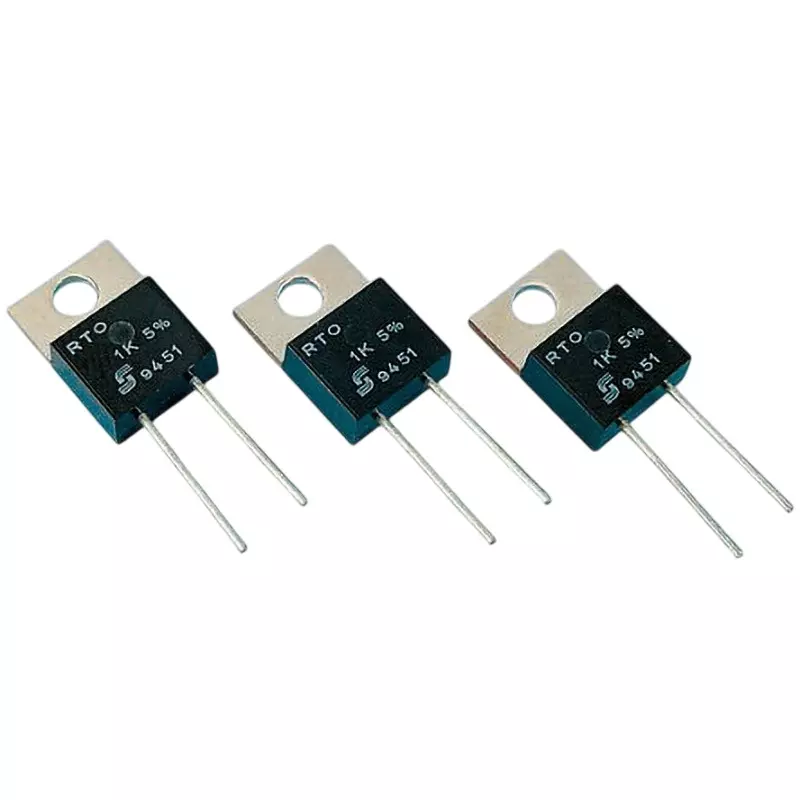

Thick Film Power Resistors-20 W-Metal Base. Non-Inductive Thick Film Resistors These resistors, housed in a TO-220 housing and mounted on a heat sink, are compact, have high power ratings, and are easy to package in small packages Can be implemented. |
RoHS Directive |
Correspondence |
Rated power (W) |
20 |
Height (mm) |
15 |
Operating Temperature (c) |
(Max)+155 |
Length (mm) |
10.1 |
