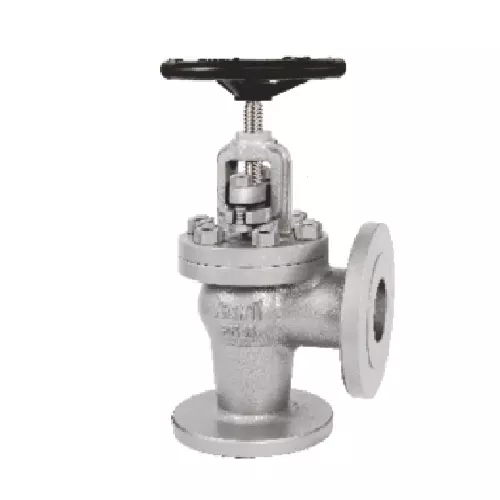

Kranti PV-102A Cast Iron Angle Globe Valve

Kranti PV-102A Cast Iron Angle Globe Valve
Specifications check

Model No : PV-102A

Specifications check

Type of Product : Angle Globe Valve

Specifications check

Disc Type : Renewable Disc

Specifications check

Seat Type : Renewable Set

Specifications check

Working Pressure : Max. BOP 13 Kg/cm2

Specifications check

Product Standard : BS 5152 / Din 86251

Specifications check

End Details : Flanged ends as per DIN 2533 Raised Face

Specifications check

Gasket : Steam Jointing Sheet as per IS 2712 Gr. W/3

Specifications check

Material : Cast Iron

Specifications check

End Connection Type : Flanged

Specifications check

Working Temperature : Max. 220°C

Specifications check

Trims Material : Stainless Steel (AISI 410)

Specifications check

Gland Packing : Braided Graphited as per IS 4687

Specifications check

Pressure Rating : PN 16

Specifications check

Stud : Carban Steel as per IS 1367

Specifications check

Nut : Carban Steel as per IS 1367

Specifications check

Handwheel : Cast Iron as per IS 210 Gr. FG 200

Specifications check

Hydraulic Test Pressure : Body 26 Kg/cm2, Seat 17.3 Kg/cm2(Steam)

Specifications check

Body & Bonnet : Cast Iron as per IBR 86 to 93 Gr. A

Specifications check

Washer : Carban Steel as per IS 1367

Sort
sku-leadTime Ships within 65 days
SKU ID: PLU.GLO.224633344
Kranti 1 inch, 25 mm Cast Iron Angle Globe Valve, PV-102A
Size (mm)
25 mm
₹2,595 ₹2,956
You save ₹361!
12.21% OFF
sku-leadTime Ships within 65 days
SKU ID: PLU.GLO.524633355
Kranti 1-1/4 inch, 32 mm Cast Iron Angle Globe Valve, PV-102A
Size (mm)
32 mm
₹3,657 ₹4,073
You save ₹416!
10.22% OFF
sku-leadTime Ships within 65 days
SKU ID: PLU.GLO.224633363
Kranti 1-1/2 inch, 40 mm Cast Iron Angle Globe Valve, PV-102A
Size (mm)
40 mm
₹4,719 ₹5,303
You save ₹584!
11.01% OFF
sku-leadTime Ships within 65 days
SKU ID: PLU.GLO.124633378
Kranti 2 inch, 50 mm Cast Iron Angle Globe Valve, PV-102A
Size (mm)
50 mm
₹5,899 ₹6,741
You save ₹842!
12.5% OFF
sku-leadTime Ships within 65 days
SKU ID: PLU.GLO.224633380
Kranti 2-1/2 inch, 65 mm Cast Iron Angle Globe Valve, PV-102A
Size (mm)
65 mm
₹8,613 ₹9,743
You save ₹1,130!
11.6% OFF
sku-leadTime Ships within 65 days
SKU ID: PLU.GLO.224633394
Kranti 3 inch, 80 mm Cast Iron Angle Globe Valve, PV-102A
Size (mm)
80 mm
₹11,563 ₹13,178
You save ₹1,615!
12.26% OFF
sku-leadTime Ships within 65 days
SKU ID: PLU.GLO.824633401
Kranti 4 inch, 100 mm Cast Iron Angle Globe Valve, PV-102A
Size (mm)
100 mm
₹16,519 ₹17,571
You save ₹1,052!
5.99% OFF
sku-leadTime Ships within 66 days
SKU ID: PLU.GLO.124633412
Kranti 5 inch, 125 mm Cast Iron Angle Globe Valve, PV-102A
Size (mm)
125 mm
₹22,419 ₹23,353
You save ₹934!
4% OFF
sku-leadTime Ships within 66 days
SKU ID: PLU.GLO.824633420
Kranti 6 inch, 150 mm Cast Iron Angle Globe Valve, PV-102A
Size (mm)
150 mm
₹29,499 ₹31,052
You save ₹1,553!
5% OFF
